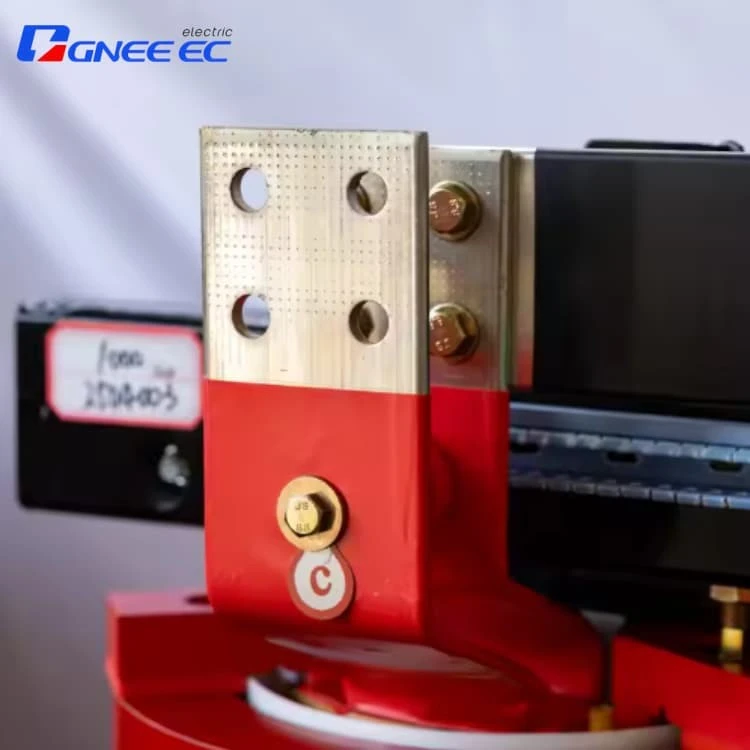

160kVA Dry Type Step Down Transformer
Capacity: 160kVA Dry power transformer
Voltage: High-voltage side 10kV / Low-voltage side 400V (customizable)
Type: Dry type step down transformer, oil-free eco-friendly design
Certifications: ISO 9001 Quality Management, SGS Safety Certification, CE EU Compliance
Key Benefits: Low energy loss, flame-retardant, maintenance-free, ideal for commercial and industrial applications.
Have questions? GNEE sales representatives are available for live chat now
Send E-mail: sales@gneeelectric.com
Tel: +8615824687445
Henan GNEE Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of 160kva dry type step down transformer in China. If you're going to buy customized 160kva dry type step down transformer made in China, welcome to get quotation from our factory. Quality products and reasonable price are available.
Product Features of 160kVA Dry Type Step Down Transformer
Safety & Reliability: Epoxy resin casting (Cast resin) technology ensures the highest fire resistance (Class F1) for a Dry type power transformer, eliminating explosion risks.
Energy Efficiency: SCB13 model reduces no-load losses by 20% compared to national standards, while the Dry type step down transformer design minimizes voltage fluctuations.
Quiet Operation: Noise level ≤55dB, outperforming traditional oil-immersed transformers.
Smart Monitoring: Pre-installed temperature control interfaces compatible with Dry power transformer remote monitoring systems.
Compact Design: 15% smaller footprint saves installation space, perfect for confined electrical rooms.
Products parameter
| Rated Capacity (KVA) |
Junction group labe |
Voltage combination(KV) | No-load current (%) |
Load loss (W) |
No-load loss (W) |
Short circuit impedance (%) |
||
| (H.V.) | High voltage tap range(%) |
(L.V.) | ||||||
| 30 | Dyn11 YynQ |
10 6.3 6 |
±5 ±2×2.5% or -1 ×2.5% +3 |
0.4 | 2.00 | 710 | 150 | 4.0 |
| 50 | 2.00 | 1000 | 215 | |||||
| 80 | 1.50 | 1380 | 295 | |||||
| 100 | 1.50 | 1570 | 320 | |||||
| 125 | 1.30 | 1850 | 375 | |||||
| 160 | 1.30 | 2130 | 430 | |||||
| 200 | 1.10 | 2530 | 495 | |||||
| 250 | 1.10 | 2760 | 575 | |||||
| 315 | 1.00 | 3470 | 705 | |||||
| 400 | 1.00 | 3990 | 785 | |||||
| 500 | 1.00 | 4880 | 930 | |||||
| 630 | 0.85 | 5880 | 1070 | |||||
| 630 | 0.85 | 5960 | 1040 | 6.0 | ||||
| 800 | 0.85 | 6960 | 1210 | |||||
| 100C | 0.85 | 8130 | 1410 | |||||
| 1250 | 0.85 | 9690 | 1670 | |||||
| 1600 | 0.85 | 11730 | 1960 | |||||
| 2000 | 0.70 | 14450 | 2440 | |||||
| 2500 | 0.70 | 17170 | 2880 | |||||
Installation Environment & Guidelines
Environmental Requirements:
Indoor use only in dry, well-ventilated areas. Cast resin dry type transformer meets IP20 protection rating.
Operating temperature: -25℃ to +40℃, humidity <90% (non-condensing).
Installation Steps:
Foundation Preparation: Ensure a level concrete foundation with load-bearing capacity ≥1.5x the Dry type step down transformer's weight.
Positioning: Use dedicated lifting rings during hoisting; avoid tilting beyond 15°.
Wiring Standards: Install surge arresters on the high-voltage side. Apply anti-oxidant paste to copper busbar connections on the Dry power transformer's low-voltage side.
Testing: Conduct 24-hour no-load operation to monitor temperature rise (≤100K) and noise levels.
Maintenance: Regularly clean dust from the Cast resin dry type transformer surface using compressed air.
video
Application Scenarios
Why choose us?
GNEE strictly follows the comprehensive acceptance testing process to ensure that the performance of each device meets the standards. Our products and services have been successfully applied in more than 50 countries and regions around the world. As a trusted global industrial partner, we are always committed to helping customers achieve their sustainable development vision through high-quality products and full-process services.
Support
• Pre-sales: Free technical consulting, drawing review, and installation training.
• After-sales:
o Global warranty for 2 years; 5-year warranty on core components.
o 7×24-hour remote support, fault response within <24 hours.
o Operation manual provided.
Our factory
Packing and Delivery
