1500kVA 13.8/0.4KV Dry-Type Transformer
Capacity: 1500kVA
Voltage: 13.8/0.4KV
Frequency: 50/60Hz
Type: Dry-type transformer (13.8/0.4KV Dry Type Transformer)
Certifications: ISO 9001, SGS
Advantages:
Features vacuum impregnation technology and fire-retardant insulation design for moisture/dust resistance; energy-efficient with noise levels as low as 55dB(A), ideal for high-density power applications.
Have questions? GNEE sales representatives are available for live chat now
Send E-mail: sales@gneeelectric.com
Tel: +8615824687445
Product Description of 1500kVA 13.8/0.4KV Dry-Type Transformer
The SCB10 Dry Type Transformer is a high-performance dry-type transformer designed for industrial and commercial applications. With a rated capacity of 1500kVA and 13.8/0.4KV voltage configuration, it meets the power demands of large-scale factories, data centers, and building distribution systems. Unlike traditional 1500kVA oil filled transformers, it eliminates oil-cooling systems and fire risks while offering superior flame resistance. Certified by ISO and SGS, it boasts low losses (no-load loss ≤3.5%), high short-circuit impedance (35%), ensuring stable operation under voltage fluctuations or overload conditions. Key concerns-noise levels, safety, and maintenance costs-are significantly optimized, making it ideal for environmentally sensitive and space-constrained facilities.
Products parameter
Product Features of dry-type transformers
High Energy Efficiency:
Low-loss copper windings and DGA insulation material boost efficiency by 15%, reducing annual energy consumption compared to 1500kVA oil filled transformers.
Safety & Reliability:
Dry design eliminates oil leakage risks; F/H-class insulation withstands temperatures up to 220°C and passes short-circuit tests (20kA/3s), ensuring robust performance under sudden load changes.
Global Compatibility:
Supports flexible voltage regulation of 13.8/0.4KV and dual frequency (50/60Hz), aligning with global power grid standards.
Low Noise Operation:
Optimized electromagnetic field design keeps noise levels ≤55dB(A), minimizing disruption in offices or residential environments.
Certified Quality:
Dual ISO 9001 and SGS certifications with a 5-year warranty ensure long-term reliability and peace of mind.
Application Environment
The SCB10 Dry Type Transformer is rigorously tested for diverse scenarios:
Temperature/Humidity: -30°C to +45°C, 95% humidity (non-condensing)
Altitude: ≤2000 meters (customizable up to 4500 meters for high-altitude use)
EMC Compliance: Meets IEC 61800-3 electromagnetic compatibility standards
Load Capacity: Continuous operation at 120% rated load for 2 hours; 150% short-term overload capability
Ideal Applications: Data centers, hospitals, high-rise buildings, and offshore platforms requiring high-performance power distribution.
Product testing
transformers undergo rigorous factory testing, including:
Turns ratio verification
Connection group checking
Winding resistance measurement
Insulation resistance and absorption ratio testing
Dielectric loss angle tangent measurement
Applied voltage and induced voltage testing
Measurement of no-load and short-circuit losses
Winding overheating and same-pole impedance measurement
Noise level evaluation
Oil dielectric strength
about us
GNEE strictly follows the comprehensive acceptance testing process to ensure that the performance of each device meets the standards. Our products and services have been successfully applied in more than 50 countries and regions around the world. As a trusted global industrial partner, we are always committed to helping customers achieve their sustainable development vision through high-quality products and full-process services.
Support
• Pre-sales: Free technical consulting, drawing review, and installation training.
• After-sales:
o Global warranty for 2 years; 5-year warranty on core components.
o 7×24-hour remote support, fault response within <24 hours.
o Operation manual provided.
Our factory
Packing and Delivery

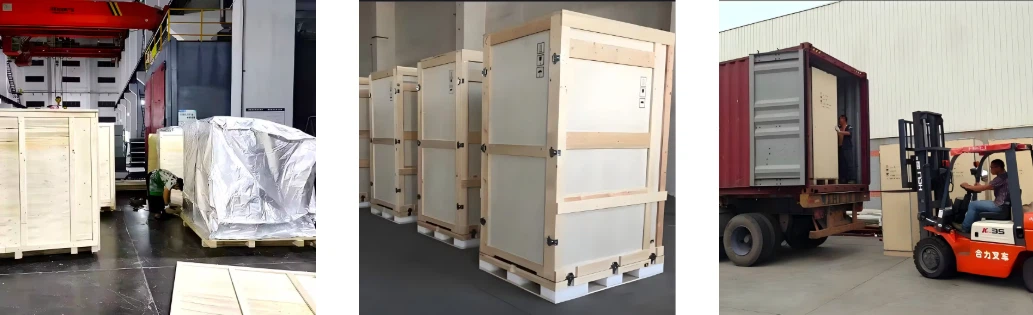

We use wooden boxes for packaging, and the transformer body is fixed with steel wire ropes and sleepers.
FAQ
Q1: How does the design of a Rectifier Transformer handle high DC component impacts?
A: Using flat-stacked core technology with ±0.5mm precision and high impedance design, it can withstand 100% rated current DC component impacts.
Scene Validation: After adopting our rectifier transformer, a certain electrolytic aluminum plant saw an 85% reduction in equipment failure rates and a 20% increase in production capacity.
Q2: How does the Pre-assembled Substation perform under harsh weather conditions?
A: The fully sealed cabinet design achieves an IP55 protection rating and uses anti-salt mist coating, ensuring stable operation in coastal or highly corrosive environments.
User Case: A wind farm in Shandong selected our pre-assembled substation, maintaining 99.9% power supply reliability even during typhoon seasons.
Q3: How does an Amorphous Alloy Transformer reduce electricity costs in remote areas?
A: By using amorphous alloy tape cores, no-load losses are reduced by 50%-70% compared to traditional silicon steel transformers, making them particularly suitable for rural grids with fluctuating loads.
