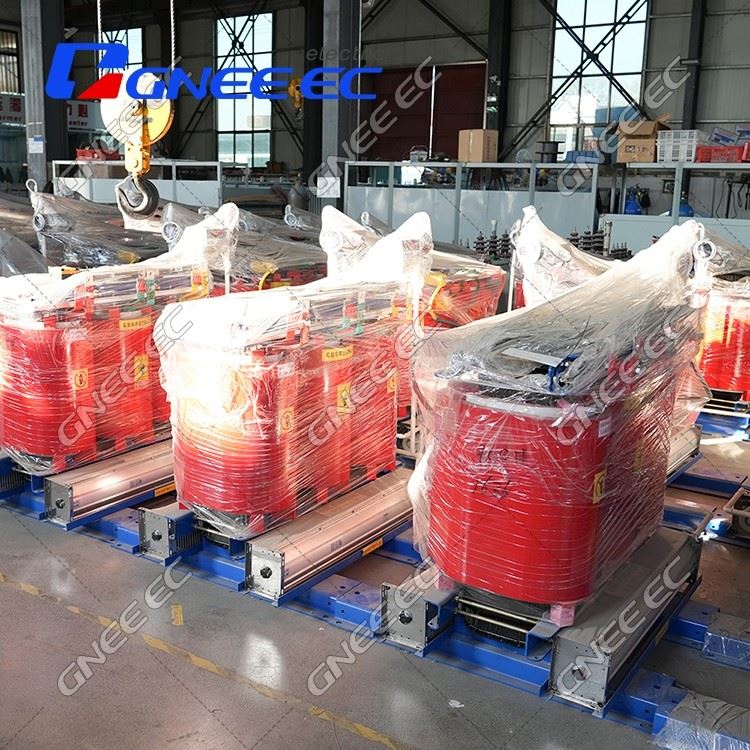

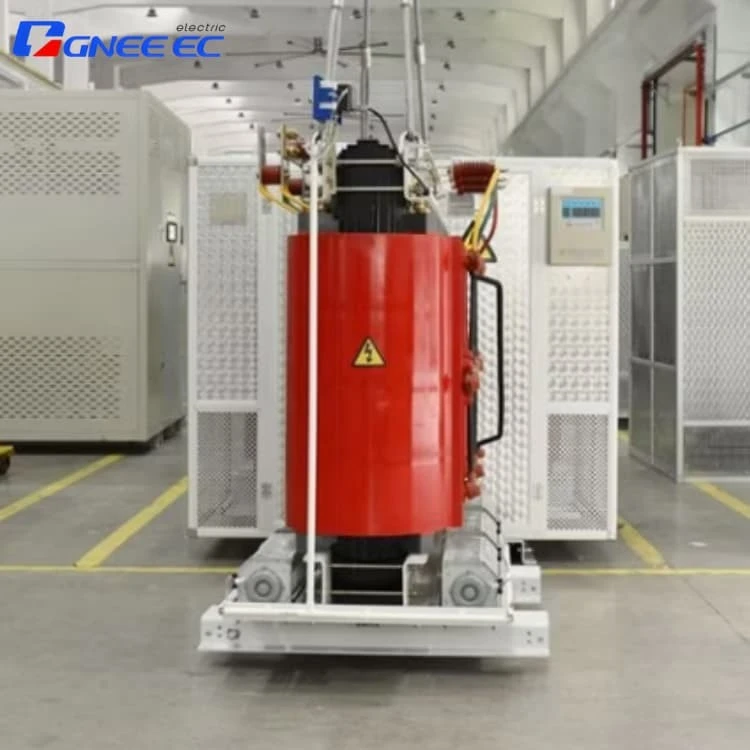

SCB13 200kVA Air Insulated Rectifier Transformer
Capacity: 200kVA
Voltage: 380V/660V (customizable)
Frequency: 50/60Hz
Type: three phase dry type transformer (dry-type, three-phase design)
Certifications: ISO, SGS, CE
Key Advantages: Equipped with Air Insulated Rectifier Transformer technology, this unit ensures energy efficiency, superior insulation performance, and compliance with international safety standards. Ideal for industrial rectification systems and high-load applications.
Have questions? GNEE sales representatives are available for live chat now
Send E-mail: sales@gneeelectric.com
Tel: +8615824687445
Henan GNEE Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of scb13 200kva air insulated rectifier transformer in China. If you're going to buy customized scb13 200kva air insulated rectifier transformer made in China, welcome to get quotation from our factory. Quality products and reasonable price are available.
Product Introduction of
Design Features:
Rectifier Transformer-specific three-phase core structure with low-loss silicon steel laminations and epoxy resin encapsulation, minimizing eddy current loss and noise.
three phase dry type transformer design eliminates the need for oil, reducing fire hazards and enabling use in humid or confined environments.
Technical Specifications:
Rated capacity of 200kVA with adaptable voltage outputs to meet diverse industrial needs.
High-frequency response for stable power conversion at 50/60Hz grid frequencies.
Application Scenarios:
Widely applied in metallurgy, chemical processing, photovoltaic inversion, and DC power systems. The Rectifier Transformer design precisely matches rectifier load requirements.
Reliability & Compliance:
ISO quality certification, SGS testing, and CE certification ensure global market compliance and robust performance under harsh conditions.
Products Description
Insulation Performance Features of Air Insulated Rectifier Transformer
Air Insulation Advantages:
High-grade F-class (155°C) insulation system using epoxy resin casting technology, eliminating oil leakage risks while offering eco-friendly and low-maintenance operation.
Heat Dissipation & Thermal Resistance:
Optimized internal cooling pathways combined with forced-air cooling ensure stable operation in high-temperature environments. The three phase dry type transformer achieves a 40% improvement in heat resistance compared to conventional designs.
Moisture Resistance & Flame Retardancy:
Epoxy resin coatings protect against humidity corrosion, and flame-retardant materials meet UL94 V-0 standards for enhanced safety over oil-immersed alternatives.
Mechanical Strength & Durability:
High-strength alloy frames and solidified coil structures enhance short-circuit resistance. Insulation degradation remains below 5% even under continuous heavy loads.
Certified Safety & Compatibility:
CE-certified insulation design ensures compliance with global safety standards, meeting the stringent demands of industrial Rectifier Transformer applications.
video
Why choose us?
GNEE strictly follows the comprehensive acceptance testing process to ensure that the performance of each device meets the standards. Our products and services have been successfully applied in more than 50 countries and regions around the world. As a trusted global industrial partner, we are always committed to helping customers achieve their sustainable development vision through high-quality products and full-process services.
Support
• Pre-sales: Free technical consulting, drawing review, and installation training.
• After-sales:
Global warranty for 2 years; 5-year warranty on core components.
7×24-hour remote support, fault response within <24 hours.
Operation manual provided.
