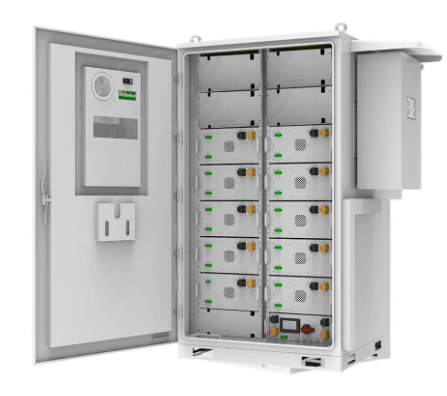

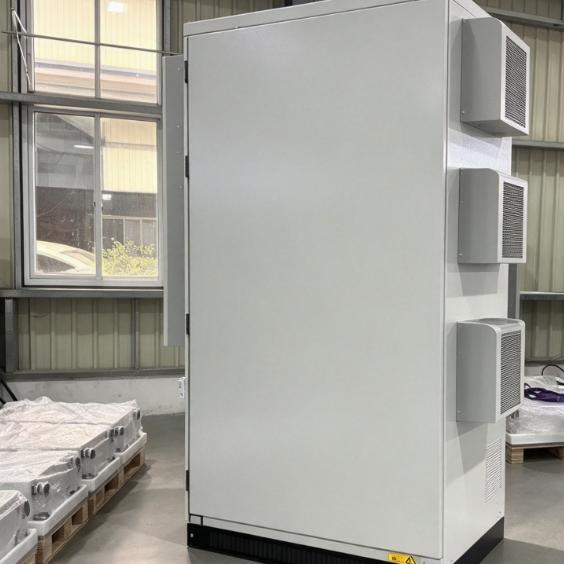

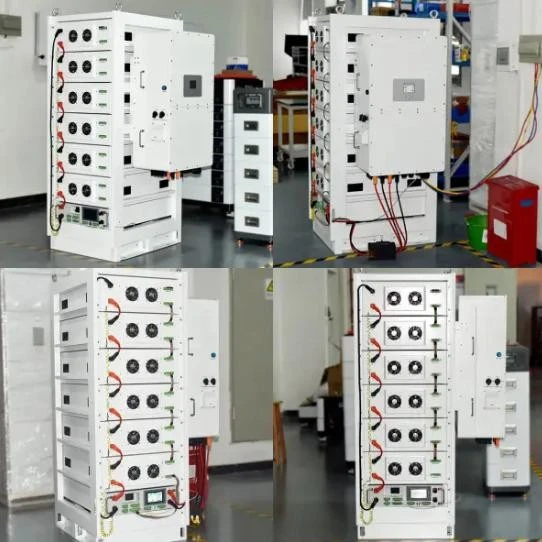

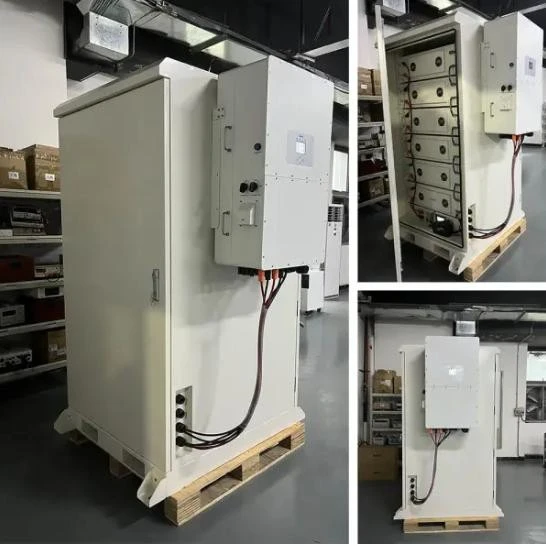

160kWh Energy Storage Cabinet
Cooling Type: Air-cooling
Output Voltage: AC 380V / 400V
Output Frequency: 50Hz /60Hz
Class of Protection: IP54(outdoor)
Certificates: CE/IEC/UN38.3/MSDS
Have questions? GNEE sales representatives are available for live chat now
Send E-mail: sales@gneeelectric.com
Tel: +8615824687445
Henan GNEE Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of 160kwh energy storage cabinet in China. If you're going to buy customized 160kwh energy storage cabinet made in China, welcome to get quotation from our factory. Quality products and reasonable price are available.
160kWh Commercial Energy Storage System Overview
A turnkey 160kWh battery energy storage cabinet engineered for commercial and industrial applications - from solar self-consumption and peak demand shaving to uninterrupted backup power and microgrid integration.

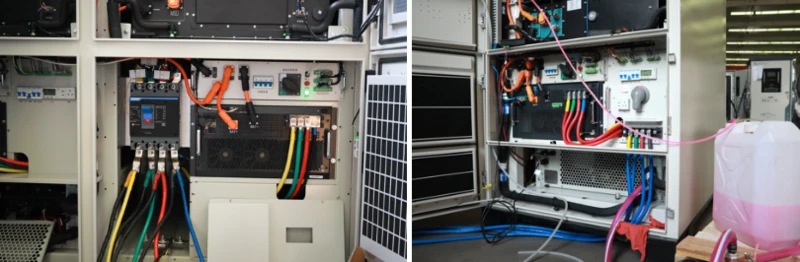

Our 160kWh energy storage cabinet integrates automotive-grade LiFePO4 battery cells, an intelligent battery management system (BMS), hybrid air-liquid cooling, and a fire suppression system into a single pre-assembled outdoor cabinet. Designed for plug-and-play deployment, it dramatically reduces on-site installation time and costs compared to rack-based solutions.
Whether you need a commercial solar battery storage system to maximize self-consumption, an industrial peak shaving battery cabinet to slash demand charges, or a reliable backup power solution for critical loads, this 160kWh system delivers industry-leading performance with the lowest total cost of ownership (LCOE) in its class.
💡 Planning a C&I energy storage project? Get a customized 160kWh battery storage system design with detailed ROI calculations - our engineering team responds within 12 business hours.
- Pre-assembled, pre-tested cabinet - deployment in under 48 hours
- Grade A CATL/EVE LiFePO4 cells with 8000+ cycle life
- Hybrid air + liquid cooling for optimal thermal performance
- AI-powered smart BMS with predictive maintenance alerts
- IP55 outdoor-rated enclosure - withstands harsh environments
- Multi-level safety protection with gas-based fire suppression
- Compatible with Deye, Growatt, Solis, Goodwe, SMA inverters
- Remote monitoring platform with real-time data analytics
160kWh LiFePO4 Battery Storage Technical Specifications
Detailed technical parameters of our 160kWh energy storage cabinet. All specifications are tested and certified under international standards including IEC, UL, CE, and UN38.3.
| Parameter | Specification |
|---|---|
| Battery System | |
| Rated Capacity | 160 kWh (usable) |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4 / LFP) |
| Cell Grade | Grade A (CATL / EVE) |
| System Voltage | 512 V DC (nominal) / 448–576 V DC (operating range) |

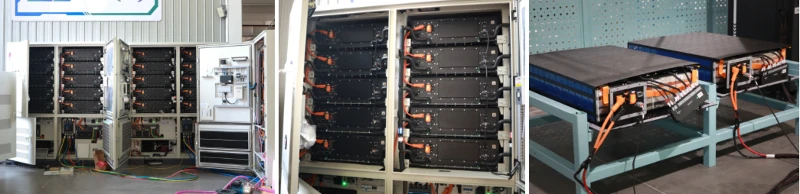

| Module Configuration | 5 × 32 kWh battery modules (1P32S, 314Ah) |
| Cycle Life | ≥ 8000 cycles @ 25°C, 0.5C charge/discharge, 80% DoD |
| Calendar Life | ≥ 15 years |
| Round-Trip Efficiency | ≥ 95% (AC to AC) |
| Power & Inverter | |
| Rated Power Output | 80 kW continuous (expandable via parallel) |
| Peak Power | 100 kW (30 seconds) |
| Inverter Options | Deye / Growatt / Solis / Goodwe / SMA / Custom |
| AC Output | 3-phase, 380V / 400V / 480V, 50/60 Hz |
| Operating Modes | Grid-tied / Off-grid / Hybrid / Backup / Peak Shaving / Demand Response |
| BMS & Monitoring | |
| BMS Type | AI-powered smart BMS with 3-level protection |
| Communication Protocols | CAN, RS485, Modbus TCP, Ethernet, 4G/WiFi |
| Monitoring Platform | Cloud-based web & mobile app with real-time analytics |
| Smart Features | Predictive maintenance, SoC optimization, auto-balancing |
| Thermal & Safety | |
| Cooling System | Hybrid air + liquid cooling with intelligent temperature control |
| Operating Temperature | -20°C ~ +55°C (charging), -30°C ~ +55°C (discharging) |
| Protection Degree | IP55 (outdoor rated) |
| Fire Suppression | Gas-based (Novec 1230) with multi-zone detection |
| Safety Certifications | IEC 62619, IEC 61508, UL 9540, CE, UN38.3, MSDS, ISO 9001 |
| Physical & Environmental | |
| Dimensions (W×D×H) | 1100 × 1300 × 2150 mm |
| Weight | ~1850 kg |
| Enclosure Material | Galvanized steel with anti-corrosion coating (C4 grade) |
| Installation | Outdoor / Indoor, floor-mounted, pre-wired |
| Parallel Expansion | Up to 64 units (10 MWh+ system capacity) |
| Warranty & Delivery | |
| Standard Warranty | 12 years / 8000 cycles (whichever comes first) |
| Extended Warranty | Up to 15 years available |
| Lead Time | 7 days (standard) / 25 days (custom configuration) |
| MOQ | 1 unit (sample orders welcome) |
📋 Need a datasheet or custom configuration? Download the full technical specification PDF or request a tailored design for your specific project requirements.
Core Advantages of Our 160kWh Battery Energy Storage Cabinet
🔋8000+ Deep Cycles - 33% More Than Competitors
Most 160kWh battery cabinets on the market offer only 6000 cycles. Our Grade A LiFePO4 cells deliver 8000+ cycles, extending system lifespan by 33% and dramatically reducing your levelized cost of energy storage over the system lifetime.
❄️Hybrid Air-Liquid Cooling System
Unlike competitors using only air cooling or basic HVAC, our hybrid cooling system combines forced air circulation with liquid-cooled cell plates. This maintains uniform cell temperature within ±2°C, maximizing cycle life even in extreme climate conditions from -20°C to +55°C.
⚡95%+ Round-Trip Efficiency
Industry-leading 95%+ AC-to-AC round-trip efficiency means more of your stored energy is actually usable. Combined with our AI optimization, you get more kWh delivered per kWh charged - translating directly into lower energy bills and faster ROI.
📦Seamless Parallel Expansion to 10 MWh+
Start with one 160kWh cabinet and scale up to 64 units (10+ MWh) as your energy needs grow. Our plug-and-play parallel architecture means zero re-engineering - simply add more cabinets and the system auto-configures. Perfect for phased deployment strategies.
🔥Multi-Level Safety Protection
Five layers of safety: cell-level BMS protection, module-level thermal monitoring, cabinet-level gas fire suppression (Novec 1230), system-level emergency shutdown, and cloud-based predictive fault detection. Sleep easy knowing your investment is protected.
160kWh Commercial Battery Storage Applications
Industrial Peak Shaving & Demand Charge Reduction
Manufacturing facilities and industrial plants can reduce demand charges by 30-50% by using the 160kWh battery cabinet to discharge during peak tariff periods.
Commercial Solar Self-Consumption Optimization
Pair with a commercial solar PV system to store excess solar generation during the day and use it in the evening.
EV Charging Station Energy Storage
For DC fast charging stations, the 160kWh cabinet acts as an energy buffer, reducing peak demand charges and enabling higher charging speeds without costly grid upgrades.
Commercial Building Backup Power & UPS
Ensure uninterrupted power for office buildings, data centers, healthcare facilities, and retail spaces.
Retail & Supermarket Energy Management
Supermarkets and retail centers with high refrigeration and HVAC loads can use the 160kWh system for peak shaving.
Microgrid & Off-Grid Power Systems
Ideal for remote communities, island resorts, mining camps, and agricultural operations without reliable grid access.
Agricultural & Farming Operations
Power irrigation systems, greenhouse lighting, and farm equipment with stored solar energy.
Telecom & Data Center Backup
Replace or supplement diesel generators for telecom base stations and edge data centers.
Ready to Power Your Business with a 160kWh Energy Storage Cabinet?
Join 500+ satisfied customers worldwide who trust our 160kWh battery storage systems. Get a free, no-obligation quote with detailed ROI analysis - our team responds within 12 business hours.
FAQ
How much does a 160kWh energy storage cabinet cost?
The cost of a 160kWh energy storage cabinet varies depending on configuration (inverter brand, cooling options, communication features, certification requirements, and quantity). Pricing typically ranges from $30,000 to $60,000+ per unit for complete turnkey systems. We offer competitive factory-direct pricing and volume discounts.
How long can a 160kWh battery system power my business?
A 160kWh energy storage cabinet can power a typical commercial load as follows: 20 kW load for ~8 hours, 40 kW load for ~4 hours, 60 kW load for ~2.5 hours, or 80 kW load for ~2 hours. Actual runtime depends on load profile, depth of discharge settings, and system configuration. Our AI BMS can optimize discharge to extend runtime for critical loads.
What is the lifespan of a 160kWh LiFePO4 battery cabinet?
Our 160kWh LiFePO4 battery cabinet has a cycle life of 8000+ deep cycles (at 80% depth of discharge, 25°C, 0.5C rate). In calendar terms, this translates to 15+ years of useful life under typical C&I operating conditions. We back this with a 12-year standard warranty, with an optional 15-year extended warranty available. This is 33% more cycles than competing 160kWh systems that typically offer only 6000 cycles.
Can I install the 160kWh cabinet outdoors?
Yes! Our 160kWh energy storage cabinet features an IP55-rated enclosure with C4-grade anti-corrosion coating, designed specifically for outdoor installation. The hybrid cooling system handles temperatures from -20°C to +55°C, making it suitable for most climate zones worldwide. The cabinet is also suitable for indoor installation if preferred.
What is the typical ROI for a 160kWh commercial energy storage system?
ROI depends on your local electricity rates, demand charges, solar generation, and available incentives. Typical payback periods range from 4-8 years for commercial applications, with IRRs of 12-25%. For businesses with high demand charges or time-of-use rates, payback can be even faster. Contact us for a free, detailed ROI analysis based on your specific utility rates and load profile - we'll show you exactly how much you can save.
