120kW-240kW Smart Dual Port DC Fast Charger
Have questions? GNEE sales representatives are available for live chat now
Send E-mail: sales@gneeelectric.com
Tel: +8615824687445
Henan GNEE Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of 120kW-240kW Smart Dual Port DC Fast Charger in China. If you're going to buy customized 120kW-240kW Smart Dual Port DC Fast Charger made in China, welcome to get quotation from our factory. Quality products and reasonable price are available.

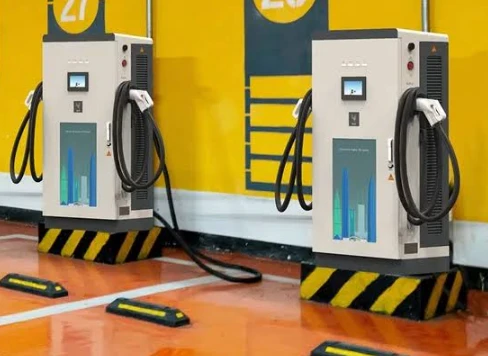

All-in-One Commercial DC Fast Charging Station Overview

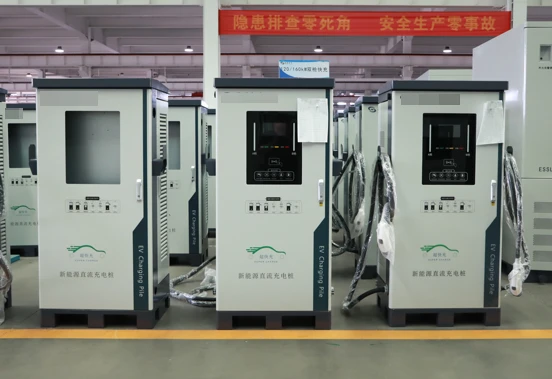

A high-performance DC fast charger designed for commercial and public EV charging networks. With a flexible power range from 120kW to 240kW and dual-port simultaneous charging, it delivers maximum uptime and revenue per station.

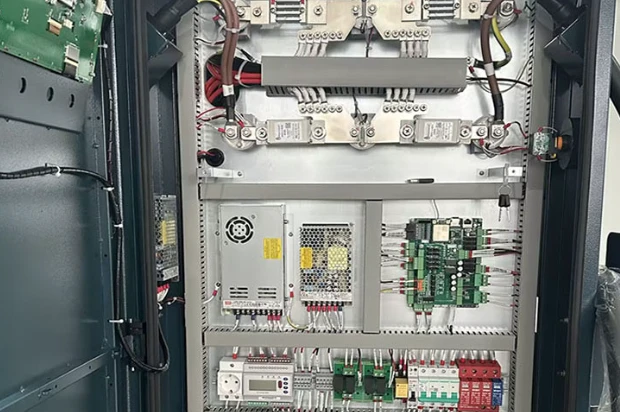

Our 120kW-240kW Smart Dual Port DC Fast Charger represents the next generation of all-in-one DC fast charging solutions. Built with advanced modular power electronics, this commercial-grade charging station delivers lightning-fast charging speeds while intelligently distributing power between two connected vehicles.
Whether you operate a public charging network, manage a commercial fleet, or own a high-traffic retail location, this DC fast charger is engineered to maximize your return on investment. The dual-port design doubles your charging capacity per footprint, while the smart load balancing ensures efficient energy use at all times.
Equipped with the OCPP 1.6J protocol, 4G/Ethernet connectivity, and a cloud-based management platform, you can monitor charging status, manage user accounts, and process payments remotely - all from a single dashboard.
💡 Planning a large-scale EV charging deployment?
We offer custom OEM/ODM solutions and volume pricing for projects of 10+ units.

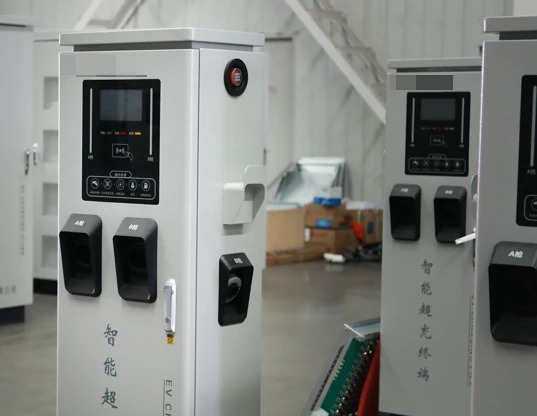

Key Features of the Smart DC Fast Charger

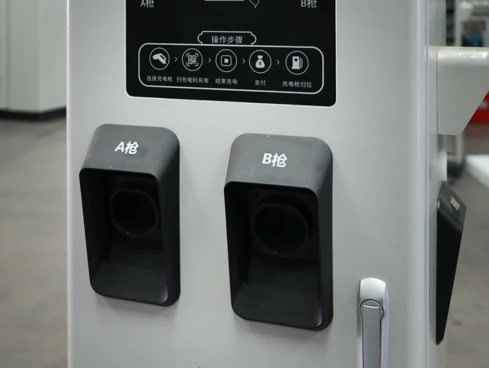

Dual Port Simultaneous Charging
Charge two electric vehicles at the same time with dynamic power distribution. Maximize revenue per station and reduce driver wait times at high-traffic locations.
Smart OCPP 1.6J Management
Full OCPP 1.6J compliance enables seamless integration with any backend platform. Remote monitoring, firmware updates, and smart load management built in.
Wide Voltage Output 150-1000V
Ultra-wide output voltage range supports all current and future EV models, from compact cars to delivery vans and electric buses with 800V architecture.
Multi-Layer Electrical Protection
Comprehensive protection including over/under voltage, over-current, short circuit, over-temperature, lightning, ground fault, and surge protection for safe operation.
Multiple Authentication Methods
Plug & play, RFID card, mobile APP, and credit card payment options. Flexible billing solutions to match your business model - from free access to pay-per-use.

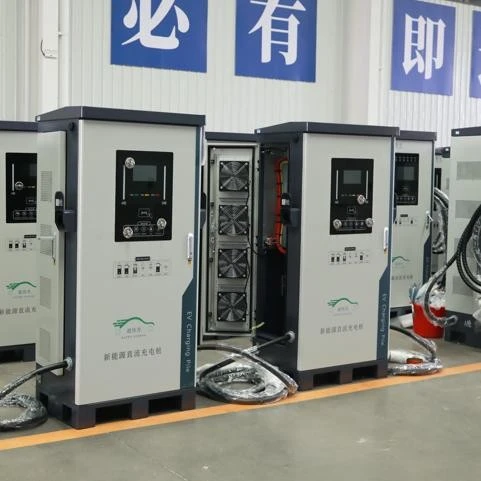

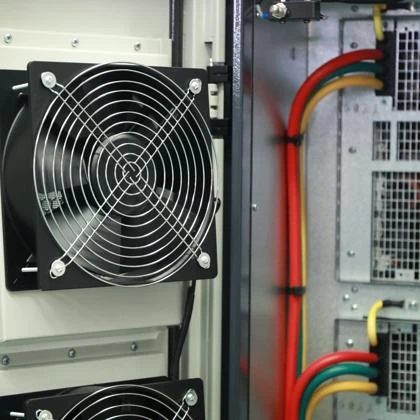

Modular Design for Easy Maintenance
Hot-swappable power modules mean minimal downtime. Field technicians can replace modules in minutes without specialized tools or factory support.
Multiple Connectivity Options
Ethernet as standard with optional 4G/Wi-Fi. Always stay connected to your charging network with reliable dual-mode communication.
7" LCD Touch Screen Display
Intuitive color touchscreen shows real-time charging status including voltage, current, power, temperature, and session duration. Supports multiple languages.
Rugged IP54 / IK10 Construction
Galvanized steel enclosure with IP54 dust and water resistance, plus IK10 impact protection. Built to withstand harsh outdoor conditions year-round.
120kW-240kW DC Fast Charger Technical Specifications
| ⚡ Electrical Properties | |
| Rated Power Range | 120kW / 160kW / 180kW / 240kW (configurable) |
| Input Voltage | 3Phase 400Vac ±10% (480Vac optional for North America) |
| Input Frequency | 50Hz / 60Hz |
| Output Voltage Range | 150Vdc - 1000Vdc (wide constant power range) |
| Max Output Current (per port) | 200A standard / 250A / 300A / 350A optional |
| Peak Efficiency | ≥ 96% |
| Power Factor | ≥ 0.99 |
| 🔌 Connectors & Interfaces | |
| Connector Options | CCS1 / CCS2 / CHAdeMO / GB/T (dual connector configuration) |
| Cable Length | 5m standard (3m / 7m / 10m optional) |
| Charging Protocol | ISO 15118, DIN 70121, GB/T 27930 |
| 🧠 Smart Control & Communication | |
| Display | 7" Color LCD Touch Screen (10"/12" customizable) |
| User Authentication | Plug & Play / RFID Card / Mobile APP / Credit Card (optional) |
| Backend Protocol | OCPP 1.6J (OCPP 2.0.1 upgrade available) |
| Connectivity | Ethernet (standard) + 4G / Wi-Fi (optional) |
| Smart Features | Dynamic load balancing, remote monitoring, firmware OTA update, power sharing |
| 🛡️ Protection & Safety | |
| Protection Features | Over/Under Voltage, Over Current, Short Circuit, Over Temperature, Lightning, Ground Fault, Surge Protection, Emergency Stop |
| Enclosure Rating | IP54 (dust & water resistant) / IK10 (impact resistant) |
| Operating Temperature | -30°C ~ +55°C |
| 📐 Mechanical & Physical | |
| Installation Type | Floor Mounted / Pedestal |
| Dimensions (W×D×H) | 750mm × 750mm × 1900mm (may vary by configuration) |
| Net Weight | ~410kg (varies by power configuration) |
| ✅ Certifications & Standards | |
| Standards Compliance | IEC 61851-1, IEC 61851-23, IEC 61851-24, IEC 62196-1, IEC 62196-3 |
| Certifications | TUV, CE, CB, MID (optional), RoHS |
🔧 Need a custom configuration?
We offer full OEM/ODM customization - from connector types and branding to software integration.
Tell us your requirements and get a custom quote within 24 hours →

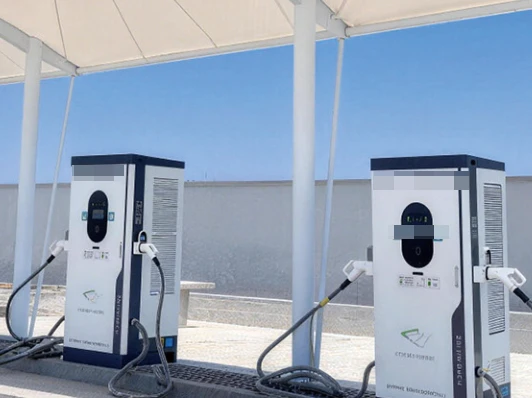

Commercial DC Fast Charger Applications and Use Cases
Highway Rest Stops
Fast charging along major corridors. Dual-port design cuts wait times in half during peak travel hours.
Commercial Parking Lots
Shopping centers, office buildings, and mixed-use developments. Generate revenue while attracting EV-driving customers.
Fleet Depots & Logistics
Charge delivery vans, trucks, and company fleets overnight or during shifts. Smart load management reduces demand charges.
Fuel & Gas Stations
Future-proof your fuel retail business with DC fast charging. Turn EV drivers into loyal convenience store customers.
Car Dealerships & Workshops
Offer fast charging for test drives and customer vehicles. Enhance the EV buying experience at your showroom.
Hotels & Hospitality
Attract eco-conscious travelers with fast on-site charging. A key amenity for modern hotel and resort guests.
Why Our 120-240kW DC Fast Charger Stands Out
30-50% Lower Total Cost
Factory-direct pricing with the same industrial-grade quality. No premium brand markup. Invest the savings in more chargers to grow your network faster.
Global Connector Compatibility
Support for CCS1, CCS2, CHAdeMO, and GB/T - far more flexible than competitors locked into regional standards. One platform for worldwide deployment.
Modular Field-Upgradable Design
Start with 120kW and scale up to 240kW as demand grows. Hot-swappable power modules mean upgrades and repairs happen in minutes, not days.
Full OEM/ODM Customization
White-label branding, custom software integration, unique color schemes - we build to your specs. Perfect for charging networks building their own brand identity.
Proven Global Deployments
Thousands of chargers deployed across Europe, Asia, the Middle East, and the Americas. Real-world reliability tested in diverse climates from -30°C to +55°C.
Flexible MOQ & Fast Delivery
Small-batch orders welcome - no minimum order quantity for standard models. Stock units ship in 7-15 days; custom orders in 25-45 days.
Ready to Deploy Your DC Fast Charging Network?
Get a free, no-obligation quotation for your 120-240kW DC fast charger project. Our EV charging experts will respond within 24 hours with a tailored proposal.
FAQ
What is the difference between a DC fast charger and an AC charger?
DC fast chargers convert AC power to DC directly inside the charger, bypassing the vehicle's onboard charger. This allows much faster charging speeds - typically 120kW-240kW or more - adding 200-300km of range in just 15-30 minutes. AC chargers (Level 2) use the vehicle's onboard charger and are slower, typically 7-22kW, making them better suited for overnight or all-day parking. Our 120-240kW dual port DC fast charger is designed for high-turnover public and commercial applications where speed is critical.
How many electric vehicles can a dual port DC fast charger charge simultaneously?
Our dual port DC fast charger can charge two EVs at the same time. When both ports are in use, the charger dynamically distributes power between the two vehicles based on their demand. For example, a 240kW unit can deliver 120kW to each vehicle simultaneously, or allocate more power to one vehicle if the other is nearly full. This dynamic power sharing maximizes both charging efficiency and revenue per station.
What electrical infrastructure is required for a 120-240kW DC fast charger?
A 120kW DC fast charger typically requires a 3-phase 400V/480V electrical supply with 150-200A capacity. A 240kW unit needs approximately 300-350A. We recommend consulting a licensed electrician to assess your site's existing electrical capacity. Our team can also provide guidance on grid connection requirements, transformer sizing, and potential load management solutions to minimize infrastructure upgrade costs.
