75 kVA Three-Phase Transformer: Specifications, Applications and Selection Guide
Jan 13, 2026
Leave a message

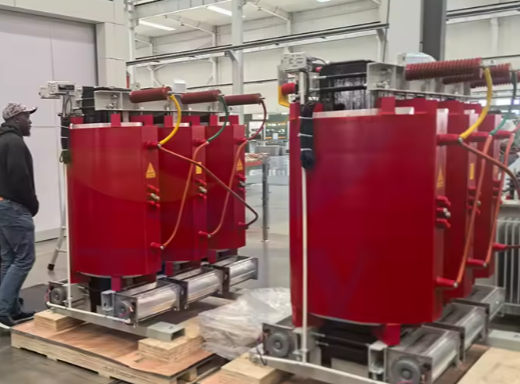

What Is a 75 kVA Three-Phase Transformer
A 75 kVA three-phase transformer is a power conversion unit with a rated apparent power of 75 kilovolt-amperes, meaning 75,000 volt-amperes. It steps voltage up or down in a three-phase power system to match the supply network to the utilization voltage of the connected loads. This rating occupies a practical middle ground: it is large enough to feed a small commercial building or a workshop, yet compact enough to be installed as a pad-mounted, pole-mounted, dry type, or oil immersed unit. Common voltage configurations include 480 V delta primary with 208Y/120 V secondary, 11 kV primary with 400 V secondary, and 22 kV primary with 400 V secondary, with custom ratios available for special projects.
The transformer is specified by rated power, voltage ratio, vector group, frequency, impedance voltage, losses, and cooling mode. These parameters are defined and verified according to the IEC 60076 series, and the manufacturer declares them on the nameplate after routine testing.
Technical Specifications of a 75 kVA Three-Phase Transformer
| Parameter | Typical Value | Reference Standard |
|---|---|---|
| Rated power | 75 kVA | IEC 60076-1 |
| Phase and frequency | Three phase, 50 Hz or 60 Hz | IEC 60076-1 |
| Primary voltage | 480 V delta, 11 kV, or 22 kV per project | IEC 60076-1 |
| Secondary voltage | 208Y/120 V, 400 V, or custom | IEC 60076-1 |
| Impedance voltage | Typically 4 percent | IEC 60076-5 |
| Vector group | Dyn11 or Dyn5 typical for distribution | IEC 60076-1 |
| Insulation and rise | Class F or H for dry type; oil immersed per IEC 60076-2 | IEC 60076-11 / IEC 60076-2 |
| Cooling mode | AN or AF for dry type; ONAN or ONAF for oil immersed | IEC 60076-2 |
Current Values at Common Voltages
For a 75 kVA three-phase unit, the rated line current at a given voltage is calculated by dividing the apparent power by the voltage times the square root of three. At 480 V the full-load current is about 90 amperes. At a 208Y/120 V secondary the full-load current is about 208 amperes. These values are used to size circuit breakers, cables, and busbar connections on both sides of the transformer.
Applications of the 75 kVA Three-Phase Transformer
The 75 kVA rating serves a wide range of medium-scale installations:
Commercial buildings: lighting, HVAC, elevators, and general power distribution for small to medium facilities.
Industrial facilities: machine tools, compressors, pumps, and control systems in workshops.
Small renewable energy projects: auxiliary supplies and step-up duties in solar and wind installations.
Agriculture and rural networks: pole-mounted distribution transformers feeding farms and small communities.
Data and communication rooms: isolated supplies for critical electronic loads.
The same rating is available in different mechanical formats. Pad-mounted units provide a tamper-resistant enclosure for outdoor use, pole-mounted units serve overhead distribution, dry type units suit indoor locations, and oil immersed units suit conventional outdoor substations.
How to Select a 75 kVA Three-Phase Transformer
Selection starts with a load study rather than a guess:
Calculate the connected load and apply a realistic diversity factor so the transformer is not oversized or undersized.
Confirm the supply voltage and the required utilization voltage, and state the vector group required by the system.
Choose the mechanical format based on the installation site: indoor dry type, outdoor pad-mounted, or pole-mounted.
Compare no-load and load losses, because loss values determine the operating cost over the transformer life.
Check the impedance voltage against the fault level of the network per IEC 60076-5.
Verify the protection degree of the enclosure against the site environment per IEC 60529.
For a three-phase 75 kVA unit feeding motor loads, account for starting currents and harmonics from variable speed drives, and confirm the thermal design with the manufacturer if the load profile is severe.
FAQ
Q: What does 75 kVA mean for a three-phase transformer?
A: It means the rated apparent power is 75,000 volt-amperes. This is the maximum apparent power the transformer is designed to deliver continuously at its rated voltage and frequency per IEC 60076-1.
Q: What are the most common voltage configurations?
A: Common configurations are 480 V delta to 208Y/120 V for North American style systems, and 11 kV or 22 kV to 400 V for other distribution networks. Custom ratios are available to match the project.
Q: How much current does a 75 kVA transformer draw at full load?
A: At 480 V the full-load current is about 90 amperes, and at a 208Y/120 V secondary it is about 208 amperes. The calculation divides the kVA rating by the line voltage times the square root of three.
Q: Can a 75 kVA transformer be used outdoors?
A: Yes, in pad-mounted or pole-mounted formats designed for outdoor service. The enclosure protection degree must match the site conditions, and oil immersed units are a common outdoor choice.
Q: What is the difference between dry type and oil immersed for this rating?
A: Dry type units use air cooling, need no oil handling, and suit indoor fire-sensitive locations. Oil immersed units offer robust outdoor construction and higher short-term overload capability but require oil containment and maintenance.
Q: What standards apply to a 75 kVA three-phase transformer?
A: The IEC 60076 series applies, including IEC 60076-1 for general requirements, IEC 60076-2 for temperature rise, IEC 60076-5 for short-circuit withstand, and IEC 60076-11 for dry type units.
