How to Select the Right 750kVA Dry Type Transformer for Commercial Buildings or Factories

Selecting the right transformer is critical for ensuring safe, efficient, and long-term power distribution.



As a professional transformer manufacturer, GNEE Electric provides customized solutions tailored to global commercial and industrial needs.

Choosing the right 750kVA Dry Type Transformer requires evaluating load demand, installation environment, safety requirements, and technical specifications.



A properly selected transformer ensures stable voltage, reduces energy losses, and minimizes operational risks in commercial buildings and factories.



Matching Capacity with Actual Power Demand



The first step in selecting a 750kVA Dry Type Transformer is to accurately calculate your load requirements.

• Commercial buildings (offices, malls): typically stable loads
• Factories: fluctuating or heavy motor loads



You should consider:

• Total connected load (kW)
• Demand factor and future expansion
• Power factor correction

A transformer with insufficient capacity can cause overheating, while oversizing leads to unnecessary costs.





Indoor Conditions and Environmental Factors



The 750kVA Dry Type Transformer is widely used in indoor environments due to its safety and oil-free design.



Key environmental factors include:

• Temperature and ventilation conditions
• Humidity and dust levels
• Installation altitude

Cast resin transformers are especially suitable for humid or polluted environments because their epoxy resin encapsulation protects windings from moisture and contaminants .

Indoor transformer installation in commercial building





Cast Resin vs VPI Dry Type Transformer

There are two main types of dry-type transformers:



Cast Resin Transformer (CRT):

• Excellent fire resistance
• Strong moisture protection
• Ideal for harsh environments



VPI (Vacuum Pressure Impregnated):

• Lower cost
• Suitable for clean, dry environments

Cast resin transformers are commonly used in commercial buildings, hospitals, and factories due to their higher safety and durability .





Fire Resistance and Compliance Standards



Safety is a top priority when selecting a 750kVA Dry Type Transformer for indoor use.

Dry-type transformers use air or epoxy resin instead of oil, eliminating leakage and significantly reducing fire risks .



Look for:

• Flame-retardant and self-extinguishing materials
• Low smoke emission
• Compliance with IEC 60076-11

These features are essential for installations in high-rise buildings, hospitals, and densely populated areas.





Key Parameters to Consider

When selecting a 750kVA Dry Type Transformer, focus on the following specifications:

• Voltage level (e.g., 10kV/0.4kV, 33kV/0.4kV)
• Impedance (typically 4%–6%)
• Cooling method (AN/AF)
• Insulation class (F or H)
• Losses (no-load and load losses)

Modern designs reduce no-load loss by up to 30% and improve efficiency significantly .





Energy Savings and Lifecycle Cost

A high-quality 750kVA Dry Type Transformer should offer:

• Low energy losses
• High efficiency under partial and full load
• Reduced maintenance costs

Dry-type transformers require less maintenance because they do not use oil, eliminating the need for oil testing or replacement .

This results in lower total cost of ownership over the transformer's lifespan.





Why Choose a Reliable Transformer Supplier

Choosing the right manufacturer is just as important as selecting the right specifications. At GNEE Electric, we provide:

• Custom voltage and configuration design
• Strict quality control and factory testing
• Compliance with IEC, ANSI, and international standards
• Fast delivery and global project experience

Our transformers are widely used in commercial buildings, industrial plants, and infrastructure projects worldwide.

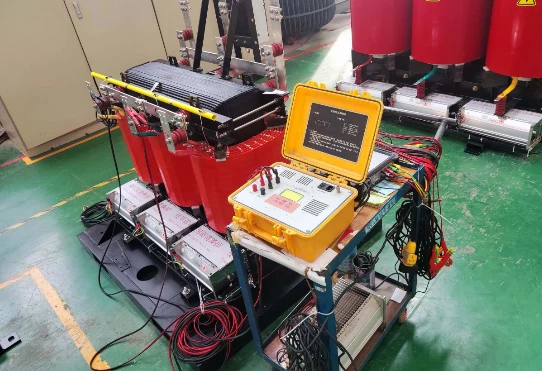

Transformer testing process





Parameter	Specification
Rated Capacity	750 kVA
Primary Voltage	6kV – 35kV (customizable)
Secondary Voltage	0.4kV
Frequency	50Hz / 60Hz
Cooling Method	AN / AF
Insulation Class	F / H
Impedance Voltage	4% – 6%
Temperature Rise	≤100K
Protection Class	IP20 / IP23
Noise Level	≤55 dB
Standards	IEC 60076-11





Selecting the right 750kVA Dry Type Transformer is essential for ensuring safe, efficient, and stable power distribution in commercial buildings and factories. By carefully evaluating load requirements, installation environment, safety standards, and technical parameters, you can achieve optimal performance and long-term reliability.
