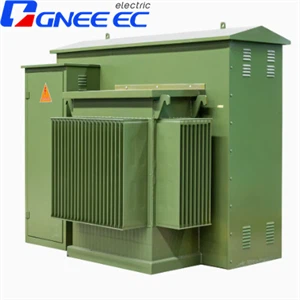

Three Phase Pad Mounted Transformer

Henan GNEE Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of three phase pad mounted transformer in China. With abundant experience, we warmly welcome you to wholesale high quality three phase pad mounted transformer at low price from our factory. Contact us for more cheap products.

A pad-mounted transformer is a type of housing for larger transformers that can be positioned in areas open to the general public. Common features of these transformers include tamper-resistant construction, tamper-proof nuts and screws, locked compartments with hinged doors, bottom entry for primary and secondary cabling, and, if applicable, baffled ventilation holes.

A Three-Phase Pad-Mounted Transformer is used in power systems. It is typically installed on a concrete pad on the ground, hence the name "pad-mounted transformer." Its main function is to convert electrical energy from high-voltage transmission lines into low voltage for use in urban and industrial areas.

Padmounted transformers

• Small size with a reasonable and compact structure.
• Fully sealed oil tank with a fully insulated design for safe and reliable operation.
• Strong overload capacity with superior resistance to sudden short circuits.
• Suitable for both ring network and terminal power supply.
• Convenient operation with reliable power supply.
• Energy-saving, low loss, and no higher than the new S9 loss value.
• Excellent impact resistance.
• Cable joint can operate at 200A load current, offering long mechanical and electrical life.

1. Liquid-filled Three-Phase Pad-Mounted distribution transformers come in Radial Feed and Loop Feed types and can be installed in locations that do not have space for a fenced enclosure. The advantage of Pad-Mounted transformers is their compact construction, small size, and ease of installation.
2. GNEE has a comprehensive factory management system and has passed ISO9001 certification. Our products have undergone testing in internationally certified STL laboratories, and we can also provide UL certification.
3. GNEE employs a focus factory concept, resulting in extensive experience with specific products, leading to a high level of consistency in design, manufacturing, and testing.
4. GNEE utilizes best-in-class manufacturing and quality processes to ensure that our transformers meet the most stringent requirements.

• Compartment available in live-front or dead-front designs.
• Critical loads are designed with special attention to surge protection.
• Hardened data centers are designed with enhanced surge protection, providing superior performance under the most stressful electrical environments.
• Specifically designed for Solar Photovoltaic generator step-up (GSU) applications.
• Vacuum fault interrupter combines voltage transformation with either transformer or loop overcurrent protection in one space-saving, cost-effective package.
• Can be located near or inside buildings for greater flexibility and savings.

GNEE Electric Co., Ltd. was established in 2008 and is located in Anyang City, Henan Province. It is a digital management enterprise integrating R&D, production, sales and installation of power equipment. The company's products cover 6kv, 11kv, 22kv, 35kv and other power transformers, distribution transformers, box-type substations, high and low voltage switch cabinets, wind power, photovoltaic power generation equipment, etc. GNEE products are sold to the Middle East, North America, South America, Europe, Southeast Asia, Africa and other regions, covering more than 50 countries.
