Residential Pad Mounted Transformer

Henan GNEE Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of residential pad mounted transformer in China. If you're going to buy customized residential pad mounted transformer made in China, welcome to get quotation from our factory. Quality products and reasonable price are available.

Residential pad-mounted transformers transform high-voltage electricity from distribution cables into a reduced power level suitable for domestic use. They have been specifically developed for residential environments and are typically situated next to housing developments, condominium complexes, or individual homes.

These transformers are often housed in weatherproof enclosures, usually placed on concrete slabs level with the ground. These enclosures protect the transformers from the elements while also ensuring the safety of residents.

Residential pad-mounted transformers are ground-mounted units designed to supply electricity to multiple homes. They are distribution transformers enclosed in a steel cabinet and installed on a concrete slab.

Residential Pad Mounted Transformer

• Weatherproof and tamper-resistant enclosure for safety and reliability.
• Eliminates the need for a separate fenced-in transformer area.
• Reduced risk of oil spills as the enclosure contains all the oil.
• Lower profile compared to pole-mounted transformers.
• Flexible configurations for both commercial and residential applications.
• Easier delivery and installation compared to substation transformers.
• Tap changers allow voltage output adjustment after installation.
• Less disruptive to install or replace than underground vault transformers.

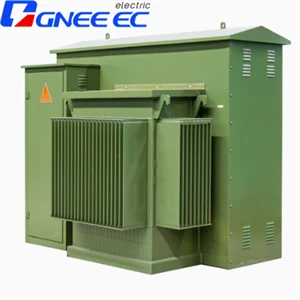

2500kva Residential Pad Mounted Transformer

1. Small size and compact structure: The floor area is only about 1/3 to 1/5 of that of a domestic European box-type substation with the same capacity. It has a fully sealed, fully insulated structure with no insulation distance, making it safe, reliable, and providing excellent transformer performance with low loss.
2. Equipped with an S11 type transformer: This transformer features low noise and strong overload capacity. The unit is divided into three parts: the high-voltage chamber, the low-voltage chamber, and the transformer. The conventional layout follows a Chinese character font (YBP). The high-voltage side uses a V-type or T-type load switch and two-stage fuse protection, suitable for both loop networks and terminals. The power supply mode is flexible and reliable.
3. High-voltage chamber monitoring: The high-voltage chamber is equipped with an oil humidity gauge, oil signal gauge, pressure gauge, pressure relief valve, oil drain valve, and other components to monitor the operation of the transformer.
4. High-voltage incoming line: The high-voltage incoming line uses a cable plug and can be equipped with a zinc oxide arrester to meet various low-voltage outgoing requirements. Low-voltage metering and shunt outgoing lines can be added according to user requirements.
5. Transformer heat dissipation: The transformer uses corrugated fins for heat dissipation. After undergoing a special treatment process, it has strong anti-corrosion capabilities. It is available in various shapes and structures and can be made from ordinary steel plates, stainless steel, and other materials.

We can offer the complete range of machines and equipment for pad mounted transformer and pole mounted transformers. Silicon steel slitting line, transformer core cutting line, coil winding machine, foil winding machine, vacuum drying oven, vacuum casting tank, VPI equipment, corrugated fin forming machine, corrugated fin welding machine, spot welding machine, transformer testing equipment , transformer radiator production line, and machine tools, etc.
