1600kVA 20/0.4KV Oil-immersed Distribution Transformer
Have questions? GNEE sales representatives are available for live chat now
Send E-mail: sales@gneeelectric.com
Tel: +8615824687445
Henan GNEE Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of 1600kva 20/0.4kv oil-immersed distribution transformer in China. With abundant experience, we warmly welcome you to wholesale high quality 1600kva 20/0.4kv oil-immersed distribution transformer at low price from our factory. Contact us for more cheap products.
This 1600kVA 20/0.4KV Oil-immersed Distribution Transformer was delivered to South Africa in 2025, the rated power of the transformer is 1600 KVA.

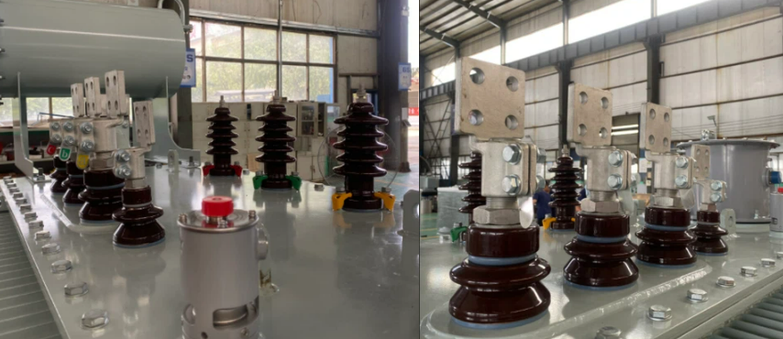

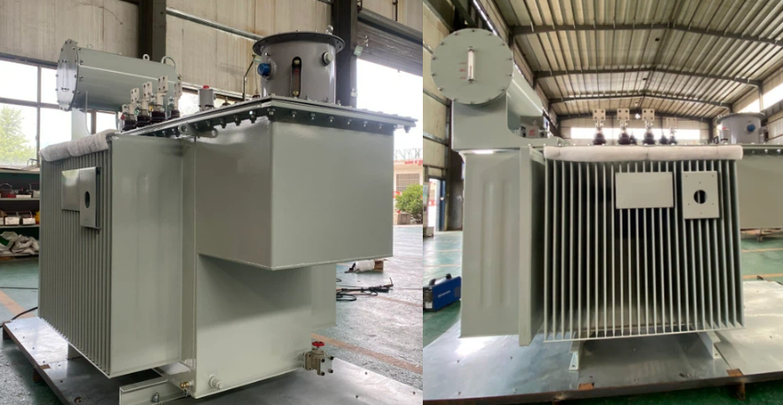

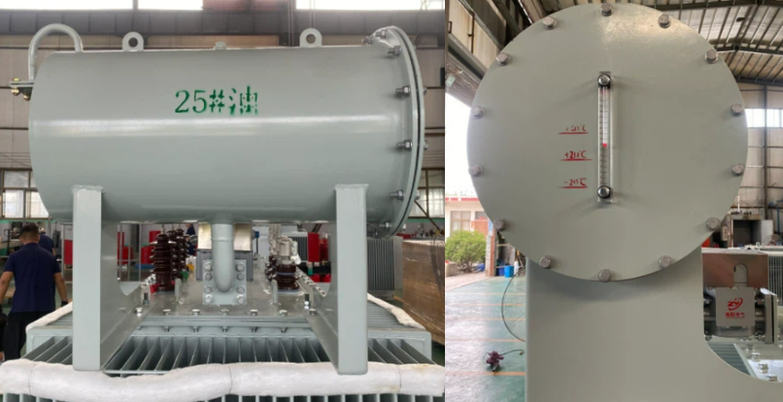

Attached are photos of the 1600kVA 20/0.4kV oil-immersed distribution transformer from multiple angles, showcasing its design and key details.
| Product or component type | Transformer |
|---|---|
| Transformer type | Oil type transformer |
| dielectric liquid | Mineral oil |
| Network type | AC |
| Standards | IS 1180 |
| Type of installation | Indoor/outdoor |
| maximum altitude | < 1000 m |
| cooling mode | ONAN (oil natural air natural) |
| winding material | Copper |
| degree of protection | IP00 conventional IS 2099 IP00 conventional IS 3347 IP55 low voltage cable box |
| Mounting mode | Ground mounted |
| phase | 3 phases |
|---|---|
| rated power | 1600 kVA |
| rated frequency | 50 Hz |
| rated primary voltage | 20 kV |
| Secondary voltage ( at no-load) | Operation/loading as per IS standard: 400 V |
| Vector group | Dyn11 |
| HV tappings (off circuit) | - 10...5 x 2.5 % |
| short circuit impedance | 6.25 % |
| thermal class | A |
| Electrical connection | Cable box high voltage connection Bus duct low voltage connection |
| protective relay | OTI relay WTI relay BR relay PRV relay |
| Locking options description | Without keylocks |
| Height | 2500 mm |
| Width | 2400 mm |
| Length | 3200 mm |
| total weight | 6050 kg |
| maximum ambient temperature | 50 °C |
|---|---|
| Ambient air temperature for operation | -6…50 °C |
| Ambient air temperature for storage | -6…50 °C |
| environmental certification | 0…95 % |
| fire certificate | Level 2 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
Iron core
The core is cold rolled silicon steel sheet with high permeability magnetic grain orientation. The iron core is a core type iron core, the full oblique joint stacking type iron core, the iron core column is a multi-step circular cross-section, the iron bar and the iron core are equal cross-section.
winding
The winding adopts corrugated oil channel, no paint dipping process, and tight tape binding; The windings are concentric coils: the high voltage winding has a tap required for the tap voltage, which is led to the tap switch, the switch is installed on the box cover, and the voltage transfer of 10kV and 20KV can be achieved after the power is cut off, and the tap voltage is changed.
Safety protection device
30~2000kVA transformer equipped with pressure relief valve:
Gas relays with alarm and tripping terminals can be installed according to user requirements;
