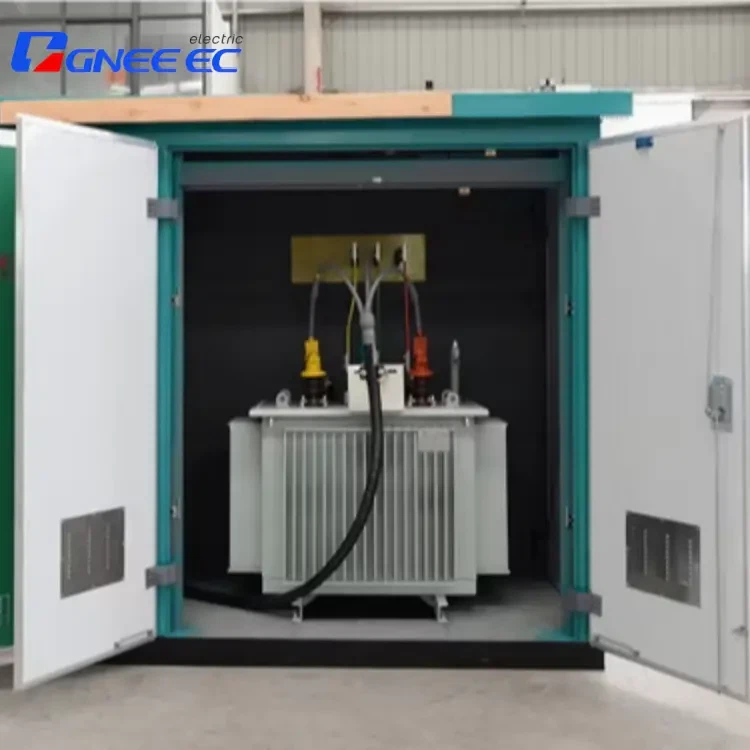

50kVA 10kV 3 Phase Oil-immersed Power Transformer
Capacity: 50kVA
Delivery Year: 2019
Country: Mexico
Advantage Description: Through customized voltage matching design, this power transformer has been successfully applied to the local wind farm's supporting power grid, meeting the stringent environmental requirements of high-altitude areas.
Have questions? GNEE sales representatives are available for live chat now
Send E-mail: sales@gneeelectric.com
Tel: +8615824687445
Henan GNEE Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of 50kva 10kv 3 phase oil-immersed power transformer in China. With abundant experience, we warmly welcome you to wholesale high quality 50kva 10kv 3 phase oil-immersed power transformer at low price from our factory. Contact us for more cheap products.
Product Introduction of 3 Phase Oil-immersed Power Transformer
Our 50kVA 10kV 3 Phase Oil-immersed Power Transformer is an oil filled transformer specifically designed for medium and low-voltage distribution systems. Its core uses high-purity transformer oil immersion technology to ensure high efficiency and reliability during the conversion from high voltage (10kV) to low voltage. The product complies with the IEC 60076 international standard and is suitable for industrial manufacturing, energy transmission, and infrastructure construction. The modular structure of the Power Transformer supports quick installation, and by optimizing the winding design, it reduces losses, saving more than 15% in energy compared to traditional products. Whether it's a new power station or a power grid upgrade, this 3 Phase Oil-immersed Power Transformer provides a stable and reliable power solution.
Products parameter
| Rated capacity (kVA) | High voltage(KV) | Voltage Combination | Connective group label | No-load loss(KW) | Load loss (KW) |
No-load current(%) | Short circuit impedance (%) | Weight (KG) | ||
| High pressure tap range | Low voltage(KV) | Weight of oil | Total weight | |||||||
| 30 | 20/10 | ±5*2.5% ±2*2.5% |
0.4 | Dyn11 | 0.09 | 0.66 | 2.1 | 5.5 | 180 | 420 |
| 50 | 0.13 | 0.96 | 2.0 | 150 | 495 | |||||
| 63 | 0.15 | 1.145 | 1.9 | 170 | 560 | |||||
| 80 | 0.18 | 1.37 | 1.8 | 190 | 635 | |||||
| 100 | 0.2 | 1.65 | 1.6 | 215 | 710 | |||||
| 125 | 0.24 | 1.98 | 1.5 | 250 | 840 | |||||
| 160 | 0.29 | 2.42 | 1.4 | 285 | 945 | |||||
| 200 | 0.33 | 2.86 | 1.3 | 340 | 1125 | |||||
| 250 | 0.4 | 3.35 | 1.2 | 390 | 1295 | |||||
| 315 | 0.48 | 4.01 | 1.1 | 445 | 1475 | |||||
| 400 | 0.57 | 4.73 | 1.0 | 515 | 1712 | |||||
| 500 | 0.68 | 5.66 | 1.0 | 6.0 | 460 | 1995 | ||||
| 630 | 0.81 | 6.82 | 0.9 | 565 | 2450 | |||||
| 800 | 0.98 | 8.25 | 0.9 | 635 | 2765 | |||||
| 1000 | 1.15 | 11.33 | 0.7 | 840 | 3650 | |||||
| 1250 | 1.35 | 13.2 | 0.7 | 970 | 4220 | |||||
| 1600 | 1.63 | 15.95 | 0.6 | 1105 | 4800 | |||||
| 2000 | 1.95 | 19.14 | 0.6 | 1205 | 5240 | |||||
| 2500 | 2.34 | 22.22 | 0.5 | 1300 | 5650 | |||||
Core Advantages of oil filled transformer
1.High Efficiency and Energy Saving:
By using amorphous alloy cores and the unique heat dissipation system of the oil filled transformer, no-load losses are reduced by 30%, significantly lowering annual operating costs compared to ordinary power transformers.
2.Safety and Reliability:
Fully sealed oil-immersed structure with multiple insulation protections effectively resists lightning strikes, dust, and harsh environments, ensuring long-term stable operation of the 3 Phase Oil-immersed Power Transformer in complex power grids.
3.Flexible Adaptation:
Supports customized voltage conversion from 10kV to low voltage (0.4kV/0.69kV), satisfying the needs of different industrial scenarios through adjustable tap designs, making it a benchmark product among high-performance Power Transformers.
Application Fields
Industrial Manufacturing:
Provides precise voltage conversion for factory production lines. The ±1.5% voltage fluctuation control capability of the 3 Phase Oil-immersed Power Transformer ensures the stable operation of precision equipment.
Energy Infrastructure:
Applied in renewable energy grid connection projects such as wind power and photovoltaics, its high-voltage resistance makes the oil filled transformer a core device connecting high-voltage power grids with distributed energy sources.
Infrastructure:
In critical facilities such as hospitals and data centers, the low noise (≤65dB) and high reliability of the Power Transformer ensure uninterrupted 24-hour power supply, making it the preferred solution for modern urban power systems.
Why choose us?
GNEE strictly follows the comprehensive acceptance testing process to ensure that the performance of each device meets the standards. Our products and services have been successfully applied in more than 50 countries and regions around the world. As a trusted global industrial partner, we are always committed to helping customers achieve their sustainable development vision through high-quality products and full-process services.
SGS certification certificate
Production environment
FAQ
Q1: How to Choose Between Oil-Immersed, Dry-Type, or Amorphous Alloy Transformers Based on Needs?
A:Oil-immersed transformers (e.g., 30-2500 kVA/10 kV Oil-Immersed Three-Phase Dual-Winding):
Applicable scenarios: Large factories, substations, outdoor high-voltage power distribution.
Advantages: Excellent heat dissipation for high loads and high-temperature environments, but requires fire prevention and oil leakage precautions.
Dry-type transformers (e.g., Epoxy resin-cast type, Dry-Type Dual-Winding):
Applicable scenarios: Indoor installations (e.g., data centers, commercial buildings), environments with strict fire safety requirements.
Advantages: No insulation oil, pollution-free, low noise, but requires ventilation for heat dissipation.
Amorphous alloy transformers (e.g., Amorphous Alloy Dry-Type):
Applicable scenarios: Grid-end applications, rural power supply, energy-efficient systems.
Advantages: Reduces no-load loss by over 70%, higher efficiency than traditional transformers, ideal for long-term low-load operations.
Q2: Which Equipment is Suitable for Rectifier Transformers (30-3200 kVA Rectifier Type)?
A: Designed specifically for rectifier equipment, such as:
Electroplating lines, electrolytic cells.
Aluminum/copper electrolysis production.
DC motor drive systems.
Features: Three-phase input, adjustable DC voltage output. Note: Harmonic loads may impact transformer performance.
Q3: What are the Differences Between Prefabricated Substations (European Style) and Combined Transformers (Combined Type)?
A:Prefabricated Substations:
High integration: Includes transformers, low-voltage cabinets, and protection devices pre-installed in weatherproof/fire-resistant enclosures.
Applicable scenarios: Rapidly deployable outdoor power systems (e.g., temporary construction sites, remote areas).
Combined Transformers:
Functional integration: Typically combines transformers, metering devices, and protection equipment to simplify power distribution.
Applicable scenarios: Power distribution hubs for small/medium factories or commercial complexes.
Q4: What is the Voltage Adjustment Method for 30-2500 kVA Dual-Winding Non-Adjustable Voltage Transformers?
A:Non-adjustable type: Fixed output voltage set at factory (e.g., 10 kV input → 400 V output); no on-site adjustment.
Applicable scenarios: Stable voltage environments with minimal load fluctuations (e.g., fixed production lines).
For voltage adjustment, choose on-load tap-changing transformers (customizable).
Q5: What are the Temperature Resistance and Lifespan of Epoxy Resin-Cast Dry-Type Transformers?
A:Temperature resistance: Class F (155°C) or Class H (180°C), with overload capacity up to 1.5× rated power.
Lifespan: Over 20 years under normal operation, but requires regular inspections of winding insulation and cooling systems.
