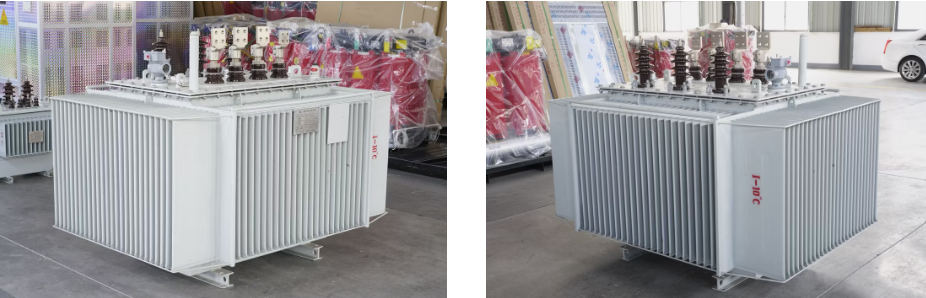

30KVA Three-phase Oil-immersed Power Transformer
Capacity: 30KVA
Delivery Year: 2024
Country: Vietnam
Application Scenario: Factory production line power supply system, providing stable voltage support for high-precision equipment.
Core Advantages:
High Efficiency and Energy Saving: Low-loss design adopted, with an annual energy consumption saving of about 15%, complying with the Vietnam Green Factory Certification standards.
Silent Operation: Running noise is below 55 decibels, ensuring a comfortable working environment in the workshop.
Flexible Voltage Regulation: The high-voltage winding is equipped with a tap changer, supporting voltage switching from 10kV to 20kV, adapting to grid fluctuation requirements.
Have questions? GNEE sales representatives are available for live chat now
Send E-mail: sales@gneeelectric.com
Tel: +8615824687445
Henan GNEE Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of 30kva three-phase oil-immersed power transformer in China. With abundant experience, we warmly welcome you to wholesale high quality 30kva three-phase oil-immersed power transformer at low price from our factory. Contact us for more cheap products.
Advantages of Oil Immersion Technology
The oil immersion technology in Three-Phase Oil-Immersion Power Transformers defines their superior performance:
Low Loss & High Efficiency:
Corrugated oil passages and no-varnish impregnation reduce winding heat, achieving S13+ energy efficiency and saving up to 20% annual electricity costs.
Moisture/Fire Resistance:
Fully sealed tanks block air and moisture, coupled with pressure relief valves and gas relays to eliminate fire risks from internal shorts. Insulation oil oxidation is inhibited, extending lifespan to 25+ years.
Stable Cooling:
Oil filled transformer fluid circulates via natural convection, maintaining performance in high-temperature environments.
Low Maintenance:
Corrugated tank expansion accommodates oil volume changes without requiring oil top-ups or reservoir checks, reducing maintenance by 70% compared to conventional designs.
video
Products parameter
| High Voltage:35(33,38.5)KV Connection Symbol:Yd11 or YNd11 Rated Frequency:50Hz/60Hz Low Voltage:10(3.15,6.3,10.5,11)KV Tapping Range of HV:±2x2.5% Insulation Level:LI200 AC85/LI75 AC35 |
|||||||||||||
| Rated power (KVA) |
Short-Circuit Impedance(%) | S22 (KW) | S20 (KW) | S11/S13/18 (KW) | No-Load Current (%) |
Sound pressure dB(A) |
Weight (kg) |
Overall Dimension(mm) | |||||
| No-Load Loss | On-Load Loss | No-Load Loss | On-Load Loss | No-Load Loss | On-Load Loss | L | W | H | |||||
| 800 | 6.5 | 0.57 | 6.8 | 0.64 | 6.8 | 0.72 | 8.6 | 0.80 | 62 | 4000 | 2150 | 1380 | 2420 |
| 1000 | 0.67 | 8.4 | 0.75 | 8.4 | 0.84 | 10.5 | 0.70 | 62 | 4500 | 2210 | 1480 | 2500 | |
| 1250 | 0.82 | 10.1 | 0.92 | 10.1 | 1.02 | 12.6 | 0.60 | 65 | 4900 | 2470 | 1550 | 2600 | |
| 1600 | 0.99 | 12.1 | 1.11 | 12.1 | 1.23 | 15.1 | 0.50 | 65 | 6000 | 2600 | 1620 | 2700 | |
| 2000 | 1.27 | 13.3 | 1.43 | 13.3 | 1.59 | 16.6 | 0.50 | 65 | 6600 | 2780 | 1850 | 2790 | |
| 2500 | 1.49 | 14.6 | 1.68 | 14.6 | 1.86 | 17.8 | 0.50 | 67 | 7600 | 2830 | 2000 | 2860 | |
| 3150 | 7.0 | 1.55 | 18.8 | 1.82 | 18.8 | 2.18 | 19.9 | 0.45 | 70 | 8400 | 2890 | 2340 | 3130 |
| 4000 | 1.82 | 22.4 | 2.09 | 22.4 | 2.64 | 23.5 | 0.45 | 72 | 9600 | 2950 | 2780 | 3210 | |
| 5000 | 2.18 | 25.6 | 2.55 | 25.6 | 3.18 | 27.0 | 0.45 | 74 | 10900 | 3000 | 3050 | 3230 | |
| 6300 | 8.0 | 2.64 | 28.6 | 3.09 | 28.6 | 3.82 | 30.3 | 0.45 | 74 | 12600 | 3190 | 3200 | 3250 |
| 8000 | 3.64 | 31.5 | 4.27 | 31.5 | 5.27 | 33.2 | 0.40 | 76 | 15700 | 3250 | 3280 | 3600 | |
| 10000 | 4.36 | 37.1 | 5.18 | 37.1 | 6.36 | 39.1 | 0.40 | 76 | 19500 | 3270 | 3460 | 3610 | |
| 12500 | 5.00 | 44.0 | 5.91 | 44.0 | 7.27 | 46.5 | 0.35 | 78 | 20600 | 3290 | 3680 | 3640 | |
| 16000 | 6.09 | 53.8 | 7.18 | 53.8 | 8.82 | 56.8 | 0.35 | 80 | 26300 | 3350 | 3960 | 4100 | |
| 20000 | 7.18 | 65.1 | 8.55 | 65.1 | 10.45 | 68.6 | 0.35 | 80 | 31500 | 3460 | 3980 | 4150 | |
| 25000 | 10.0 | 8.55 | 76.9 | 10.09 | 76.9 | 12.36 | 81.2 | 0.30 | 83 | 33500 | 4000 | 3640 | 4370 |
| 31500 | 10.09 | 91.6 | 11.91 | 91.6 | 14.73 | 96.7 | 0.30 | 83 | 40100 | 3890 | 4420 | 4510 | |
| Note: The above parameters are only for designing and selecting reference, and the final parameters are subject to the actual product. | |||||||||||||
Working Principle of Three-phase Oil-immersed Power Transformer
The Three-Phase Oil-Immersion Transformer operates through electromagnetic induction:
Core Design: A fully skewed lapped core made of high-permeability silicon steel minimizes eddy current losses. The multi-step circular core ensures optimal magnetic field distribution and reduced noise.
Winding Configuration: High and low-voltage windings are concentrically arranged. The high-voltage winding includes adjustable taps linked to a tank-mounted tap changer for voltage adjustment (10kV/20kV) during power outage.
Cooling System:Oil Immersed Transformer uses insulating oil as a coolant, with corrugated passages dissipating heat via natural convection. The oil also prevents oxidation and enhances insulation.
Protection Features: Pressure relief valves release excessive pressure, while gas relays monitor oil flow and trigger alarms/tripping to safeguard the system.
Structural Installation of Oil filled transformer
Scope of Supply
We can also provide the following transformer products:
30-2500KVA/10KV Laminated core distribution transformer
30-2500KVA Power transformer
30-2500KVA Power transformer(Three-phase oil-immersed power transformer)
30-2500KVA/10KV Oil-immersed three-phase double-winding non-excited voltage regulating distribution transformer
30-2500KVA/10KV Epoxy resin cast dry-type transformer
30-2500KVA/10KV Three-phase resin cast insulated dry type power transformer
30-2500KVA Epoxy resin cast dry-type transformer
30-2500KVA/10KV Epoxy resin cast dry-type transformer
30-2500KVA Dry-type three-phase double-winding non-excited voltage regulating distribution transformer
30-2500KVA/10KV Dry-type three-phase double-winding non-excited voltage regulating distribution transformer
30-2500KVA Amorphous alloy dry-type transformer
30-3200KVA Rectifier transformer
6300-42200KVA Three-phase oil-immersed power transformer
800-31500KVA/35KV Oil-immersed power transformer
100-1600KVA Combined transformer
380V Communication Low Voltage Distribution Cabinet
Single-Phase Overhead Type Pole Mounted Mild Steel Distribution Power Transformers
75kVA to 5000kVA Pad Mounted Transformers
Pre-assembled substation (European style) ,etc.
Why choose us?
GNEE strictly follows the comprehensive acceptance testing process to ensure that the performance of each device meets the standards. Our products and services have been successfully applied in more than 50 countries and regions around the world. As a trusted global industrial partner, we are always committed to helping customers achieve their sustainable development vision through high-quality products and full-process services.
Support
• Pre-sales: Free technical consulting, drawing review, and installation training.
• After-sales:
o Global warranty for 2 years; 5-year warranty on core components.
o 7×24-hour remote support, fault response within <24 hours.
o Operation manual provided.
SGS certification certificate
Our factory
Packing and Delivery
