30-2500KVA/10KV Laminated Core Distribution Transformer
Capacity: 30-2500KVA
Delivery Year: 2020
Country/Region: India
Application Scenario: Industrial area grid expansion, providing power support for newly built manufacturing parks.
Advantages Explanation:
Laminate core design significantly reduces no-load losses, saving over 15% in electricity bills annually.
High-temperature insulation materials adapt to the tropical climate of India, with a fault rate 30% lower than the industry average.
Standardized interfaces are compatible with the local grid system, allowing quick access and reducing downtime.
Have questions? GNEE sales representatives are available for live chat now
Send E-mail: sales@gneeelectric.com
Tel: +8615824687445
Henan GNEE Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of 30-2500kva/10kv laminated core distribution transformer in China. With abundant experience, we warmly welcome you to wholesale high quality 30-2500kva/10kv laminated core distribution transformer at low price from our factory. Contact us for more cheap products.
30-2500KVA/10KV Laminated Core Distribution Transformer Products Description
This 30-2500KVA/10KV laminated core distribution transformer is specially designed for medium and high-voltage distribution systems. It features a high magnetic conductivity silicon steel sheet laminated structure that effectively improves efficiency and reduces noise. Suitable for power distribution in industrial areas, commercial buildings, residential communities, and transmission and distribution networks, it supports stable conversion from 10KV grids to low voltage systems, meeting diverse power needs. It is an efficient, reliable, and environmentally friendly power transmission solution.
Products Details
Laminated Core Distribution Transformer Products Details structural drawings
Product Component
Core: Made by laminating high magnetic conductivity cold-rolled silicon steel sheets, optimizing the magnetic flux path to reduce eddy current losses.
Windings: Wound with copper/aluminum wire, vacuum impregnated with F or H grade insulating resin, resistant to temperatures up to 180℃.
Enclosure: Fully sealed anti-corrosion steel shell, equipped with pressure relief valves and heat sinks to ensure safe operation.

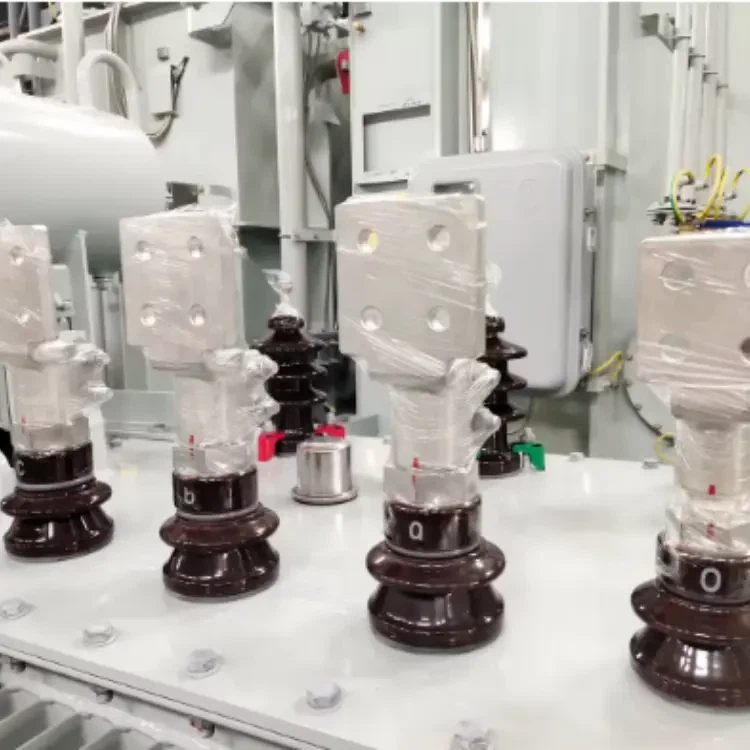

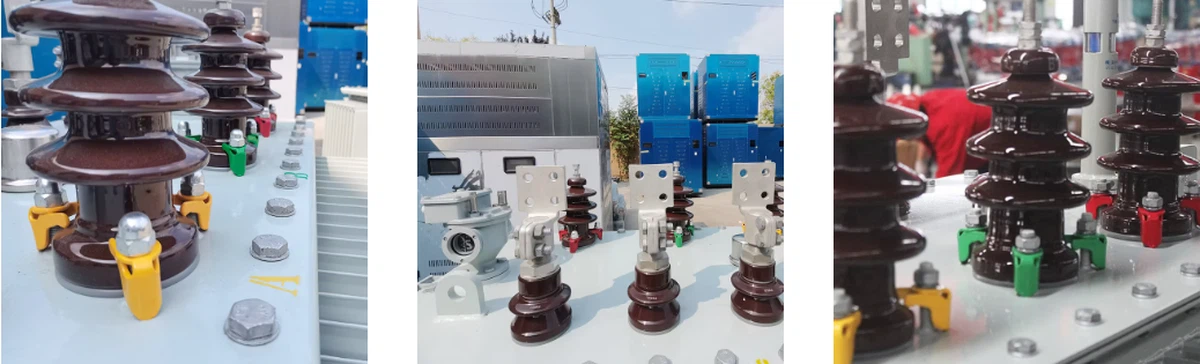

Accessory System: Integrated design of high-voltage bushings, low-voltage busbars, temperature controllers, and grounding devices, simplifying the installation process.
Laminated Core Distribution Transformer Working Principle
The Laminated Core Distribution Transformer operates based on the principle of electromagnetic induction, converting 10KV high voltage electrical energy into low voltage electrical energy suitable for terminal equipment use (such as 400V). The core processes are as follows:
Electromagnetic Induction: Alternating current is passed through the primary winding, generating an alternating magnetic field. The transformer's laminated core guides the magnetic flux to the secondary winding.
Voltage Conversion: Based on the winding turns ratio (more turns on the high-voltage side, fewer turns on the low-voltage side), the secondary side outputs low-voltage electrical energy in proportion.
Energy Transfer: Optimized magnetic permeability of the core reduces energy loss; the insulation system isolates the high and low voltage circuits, ensuring the safe operation of the Laminated Core Distribution Transformer.
Heat Dissipation Control: Heat sinks on the transformer enclosure work with natural convection for heat dissipation, with optional forced air cooling systems available for high load scenarios.
video
Why choose us?
GNEE Group:
Global Transformer Supply Chain Integration Expert
(2008 - Present)
Founded in 2008, GNEE Group has undergone fifteen years of deep industry cultivation, successfully transforming from a regional trader to a global supply chain management expert. As a pioneer in the integration of the steel industry chain, the group has established a full-cycle value system that spans raw material procurement, production coordination, logistics optimization, and terminal services, setting an innovative operational benchmark in the global transformer distribution sector. In the era of Industry 4.0, GNEE Group is accelerating towards its goal of becoming a global integrator oftransformer industry value through digital restructuring and green supply chain construction.
GNEE strictly follows the comprehensive acceptance testing process to ensure that the performance of each device meets the standards. Our products and services have been successfully applied in more than 50 countries and regions around the world. As a trusted global industrial partner, we are always committed to helping customers achieve their sustainable development vision through high-quality products and full-process services.
Support
• Pre-sales: Free technical consulting, drawing review, and installation training.
• After-sales:
Global warranty for 2 years; 5-year warranty on core components.
7×24-hour remote support, fault response within <24 hours.
Operation manual provided.
Our factory

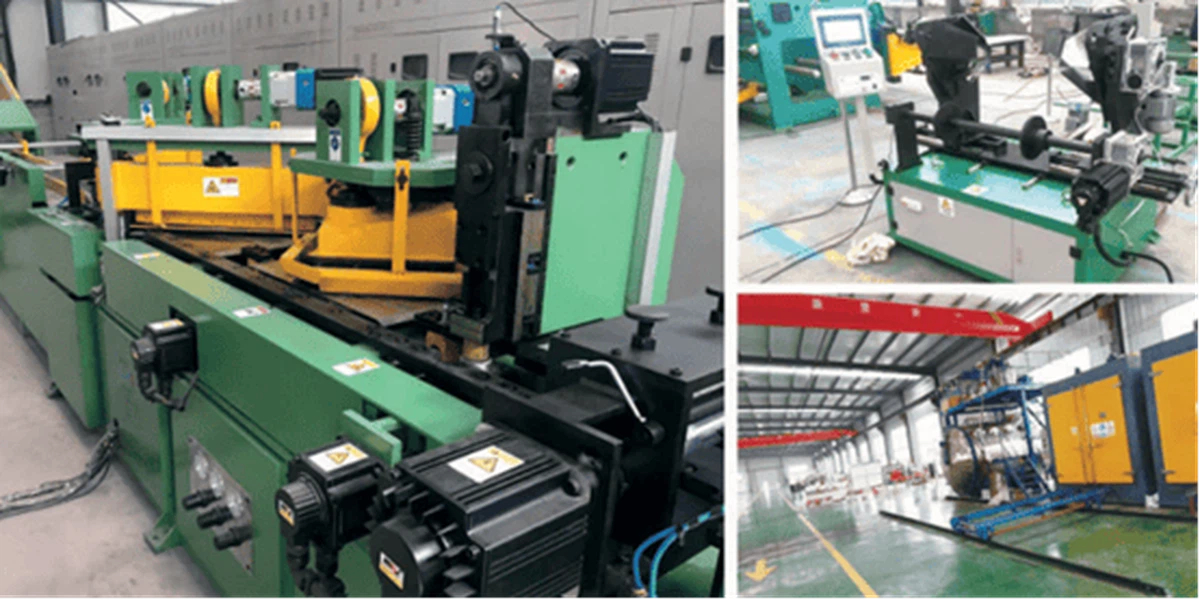

Advanced Production Equipment
FAQ
