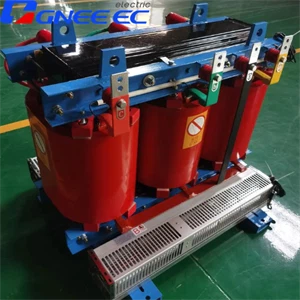

SCB12 High Frequency Epoxy Resin Insulated Dry Type Transformer
Have questions? GNEE sales representatives are available for live chat now
Send E-mail: sales@gneeelectric.com
Tel: +8615824687445
Henan GNEE Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of scb12 high frequency epoxy resin insulated dry type transformer in China. With abundant experience, we warmly welcome you to wholesale high quality scb12 high frequency epoxy resin insulated dry type transformer at low price from our factory. Contact us for more cheap products.
Product Introduction

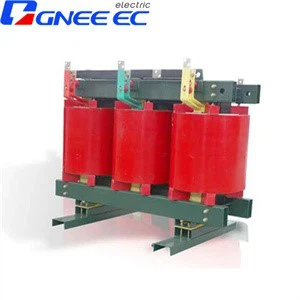

SCB12 high-frequency epoxy resin insulated dry-type transformer is a dry-type transformer using high-frequency epoxy resin insulation material, which has many excellent performance and application characteristics.
| Rated Capacity(KVA) | High voltage(KV) | Low voltage(V) | Coil material | Tapping range of high voltage | Short circuit impedance | Connection symbol | No-load loss(W) |
| 50 | 20/22/24 | 230/400/415/ 480/660 |
Copper/ Aluminum |
±2.5 ±5 |
6.0 | Dyn11 Yyn0 |
305 |
| 100 | 485 | ||||||
| 160 | 600 | ||||||
| 200 | ±2*2.5 ±5 |
655 | |||||
| 250 | 755 | ||||||
| 315 | 870 | ||||||
| 400 | 1030 | ||||||
| 500 | 1210 | ||||||
| 630 | 1370 | ||||||
| 800 | 1570 | ||||||
| 1000 | 1860 | ||||||
| 1250 | 2140 | ||||||
| 1600 | 2510 | ||||||
| 2000 | 2910 | ||||||
| 2500 | 3480 |
Technical parameters and performance characteristics
High efficiency and energy saving: SCB12 dry-type transformer uses high-efficiency insulation materials and designs, which can effectively reduce power loss, improve energy utilization, and reduce operating costs.
Safe and reliable: The transformer has no oil or liquid insulation, eliminating the risk of oil leakage and fire and explosion, greatly improving the safety and reliability of the equipment.
Environmentally friendly and pollution-free: SCB12 dry-type transformer does not use oil as insulation and cooling medium, does not produce pollutants and harmful gases, meets environmental protection requirements, and is environmentally friendly.
High mechanical strength: It has high mechanical strength and short-circuit resistance, flame retardant, explosion-proof and pollution-free , can be directly installed on the load
Maintenance-free: It has good moisture-proof performance and can operate at 100% humidity. No preheating treatment is required before commissioning, and no dehumidification treatment is required for intermittent operation
Low noise: Low operating noise, suitable for places with strict noise requirements
Environmental protection and energy saving: Compared with traditional oil-immersed transformers, SCB12 dry-type transformers can reduce energy consumption, improve energy utilization, and alleviate the energy costs of enterprises
Application areas
SCB12 high-frequency epoxy resin insulated dry-type transformers are widely used in the following fields: Power system: Used for power transmission and distribution to ensure the stable operation of the power system. Industrial automation: Suitable for various industrial equipment to provide stable power supply. Mining and metallurgy: Stable operation in harsh environments to ensure the normal operation of production equipment. Hospitals, schools, shopping malls and other places: Due to its low noise characteristics, it is suitable for places that require a quiet environment
