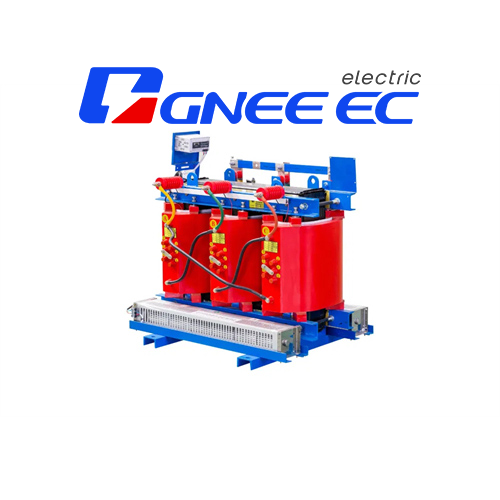

SC(B)10 Dry Type Power Transformer

Name: China SC(B)10 Dry Type Power Transformer Manufacturers Suppliers Factory - Quotation - GNEE Electric
Brand: GNEE Electric
SKU: 239890399

This series of dry-type power transformers are used to directly reduce 35KV electrical grid power supply to 400V distribution power supply for users and omits the stage of 10KV transmission and transformation., which significantly decreases operating costs and engineering construction costs of multi-level substation projects, and have significant social benefits.

Send Inquiry

Chat Now

Have questions? GNEE sales representatives are available for live chat now

Send E-mail: sales@gneeelectric.com

Tel: +8615824687445

Henan GNEE Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of sc(b)10 dry type power transformer in China. If you're going to buy customized sc(b)10 dry type power transformer made in China, welcome to get quotation from our factory. Quality products and reasonable price are available.

SC(B)10 Dry Type Power Transformers

The casting coil of this product is filled with short glass filaments and adopts a segmented circular structure, and an axial air channel is arranged inside the coil to improve heat dissipation conditions. The scientific pouring molding process can ensure that the resin fully penetrates between turns, layers and segments to ensure the electrical insulation strength of the product and less partial discharge value (≤5pcl).

How to prevent the cracking of the resin cast body, control the generation of residual bubbles in the cast body, and reduce the partial discharge to the minimum limit has always been a major issue for dry transformers manufacturers at home and abroad, and is the key manufacturing technology of resin cast dry type transformers.

Rated Capacity (kva)	HV (kV)	Tapping Ranges	LV (kV)	Vector-group	No-load Loss	75 ℃ Load Loss	No-load Loss	Short -Circuit Impendance
30	6 6.3 6.6 10 10.5 11	±5% ±2X2.5%	0.4	Dyn11 Yyno	190	710	2.4	4
50					270	1000	2.4
80					370	1380	1.8
100					400	1570	1.8
125					470	1850	1.6
160					540	2130	1.6
200					620	2530	1.4
250					720	2760	1.4
315					880	3470	1.2
400					980	2990	1.2
500					1160	4880	1.2
630					1340	5880	1.0
630					1300	5960	1.0	6
800					1520	6960	1.0
1000					1770	8130	1.0
1250					2090	9690	1.0
1600					2450	11730	1.0
2000					3050	14450	0.8
2500					3600	17170	0.8
1600					2450	12960	1.0	8
2000					3050	15960	0.8
2500					3600	18890	0.8

Dry power transformer

Dry core transformer

Main Features of Dry Type Power Transformers

• Technical standards: IEC 60076-1-5, IEC 61378-1:1997, JB/T 8636-1997, GB 1094.11-2007, GB 1094,1-2013

• Rated capacity: 30-5000kVA

• Voltage grade: 10kV, 20kV, 35kV, etc

• Voltage regulation method: Non-excited or loaded

• Frequency: 50Hz or 60Hz

• Phase: three phase

• Connection: Y, yn0, D, yn11, and etc.

• Cooling type: AN(Automatic cooling) or AF(Wind cooling)

• Insulation grade: F

• Protection grade: IP00, IP20(indoor), IP23(outdoor)

• Conditions of Use:The altitude is less than 1000 meters and the ambient temperature is not higher than 40 degrees Celsius. Above the above range, technical adjustments should be made in accordance with the standards.
