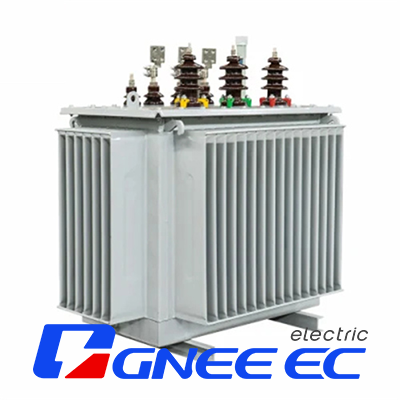

Amorphous Oil-Immersed Transformer

Name: China Cheap Amorphous Oil-Immersed Transformer Manufacturers Suppliers Factory - Low Price
Brand: GNEE
SKU: 241656596

Amorphous alloy transformer is a kind of oil immersed transformer with low loss and high energy efficiency. The core of the product is made of amorphous alloy strip, and its no-load loss is more than 70% lower than that of the traditional transformer with silicon steel sheet as core. It is a new generation of energy-saving, safe, green and environment-friendly high-tech product.

Send Inquiry

Chat Now

Have questions? GNEE sales representatives are available for live chat now

Send E-mail: sales@gneeelectric.com

Tel: +8615824687445

Amorphous oil-immersed transformer has widely replaced the silicon steel core transformers in outdoor power distribution systems. It is energy saving and environmental friendly. Amorphous alloy transformers commonly adopt a sealed structure. Therefore, the insulating oil and dielectric cannot cause air pollution and can run in a damp environment.In this case, it is the ideal equipment for urban and rural general distribution network. It is especially suitable for places of low power and load fluctuations, and areas where routine maintenance is difficult to be implemented.

Rated Capacity (kVA)	Voltage Combination (kV)		Connection Symbol	No-load Loss (kW)	Full-load Loss (kW)	No-load Current (%)	Impedance (%)	Weight (kg)		Outline Dimension (mm)			Gauge (mm)
Rated Capacity (kVA)	HV	LV	Connection Symbol	No-load Loss (kW)	Full-load Loss (kW)	No-load Current (%)	Impedance (%)	Oil Weight	Total Weight	L	W	H	Gauge (mm)
30	6 6.3 10 ±2 x2.5% or ±5%	0.4	Dyn11	33	630	1.5	4	90	340	870	600	850	550x550
50				43	910	1.2		110	460	920	600	900	550x550
63				50	1090	1.1		115	510	800	620	900	550x550
80				60	1310	1		130	580	970	620	950	550x550
100				75	1580	0.9		140	625	980	620	1030	550x550
125				85	1890	0.8		160	720	1010	690	1080	550x550
160				100	2310	0.6		195	845	1140	790	1030	550x550
200				120	2730	0.6		220	996	1100	980	1030	680x680
250				140	3200	0.6		239	1140	1080	1070	1050	680x680
315				170	3830	0.5		255	1270	1250	980	1130	680x680
400				200	4520	0.5		270	1530	1320	980	1080	680x680
500				240	5410	0.5		332	1810	1470	1170	1140	680x680
630				320	6200	0.3		406	2200	1490	1170	1250	820x820
800				380	7500	0.3		470	2550	1580	1250	1340	820x820
1000				450	10300	0.3		510	2830	1550	1480	1460	1070x1070
1250				530	12000	0.2		630	3200	1680	1510	1480	1070x1070
1600				630	14500	0.2		750	4030	1750	1550	1540	1070x1070

Amorphous core type distribution transformer

Amorphous alloy transformers characteristics

1.The core is made of amorphous alloy strip, with low no-load loss.
2.The positioning structure is added to the body to avoid displacement during transportation. At the same time, all fasteners are equipped with fastening nuts to ensure that the fasteners are not loose during long-term operation.
3.This product is a fully sealed structure. The vacuum oil filling process is adopted when the transformer is packaged, which completely removes the moisture in the transformers, ensures the isolation of the transformer oil from the outside air, prevents the aging of the oil, and improves the operation reliability of the transformers. The product is equipped with pressure relief valve, signal thermometer, gas relay and so on to ensure the safe operation of the transformers.
4.The transformers oil tank is composed of corrugated wall, and the surface is sprayed with dust and the paint film is firm. Corrugated heat sink not only has cooling function, but also has "breathing" function. The elasticity of corrugated heat sink can compensate the change of transformer oil volume caused by temperature rise and fall. Therefore, there is no oil conservator in the fully sealed transformers, which reduces the overall height of the transformers.
5.The product is beautiful in appearance, small in volume and small in floor area. It is an ideal maintenance free product.
