80kVA/10kV Oil-Immersed Laminated Core Distribution Transformer
Rated Voltage: 10kV/0.4kV
Frequency: 50Hz/60Hz
Cooling Method: Oil-Immersed Natural Cooling
Delivery Year: 2023
Delivery Country: Australia
Key Advantages:
High Efficiency: Laminated Core structure minimizes eddy current losses, enhancing energy efficiency.
Robust Durability: Oil-Immersed design improves insulation performance and extends service life.
Broad Compatibility: As a Distribution Transformer, it supports diverse grid configurations for industrial and commercial applications.
Safety & Eco-Friendly: Sealed Oil Filled tank design prevents leaks and complies with global environmental standards.
Have questions? GNEE sales representatives are available for live chat now
Send E-mail: sales@gneeelectric.com
Tel: +8615824687445
Products Description
| Main Technical Parameter (can customize it according to your techncial data) | ||||||||||
| Rated Capacity(KVA) |
Voltage Combination | Vector Group |
No-load Loss (KW) |
Load Loss (KW) |
No-load Curent% |
Short-circuitimpedance | Weight (kG) | |||
| High Voltage(KA) | High Voltage Tapping Range |
Low Voltage(KA) | Oil Weight | Gross Weight | ||||||
| 30 | 20-10 |
±5×2.5% ±2×2.5% |
0.4 |
Dyn11 |
0.09 | 0.66 | 2.1 | 5.5 |
180 | 420 |
| 50 | 0.13 | 0.96 | 2 | 150 | 495 | |||||
| 63 | 0.15 | 1.145 | 1.9 | 170 | 560 | |||||
| 80 | 0.18 | 1.37 | 1.8 | 190 | 635 | |||||
| 100 | 0.20 | 1.65 | 1.6 | 215 | 710 | |||||
| 125 | 0.24 | 1.98 | 1.5 | 250 | 840 | |||||
| 160 | 0.29 | 2.42 | 1.4 | 285 | 945 | |||||
| 200 | 0.33 | 2.86 | 1.3 | 340 | 1125 | |||||
| 250 | 0.40 | 3.35 | 1.2 | 390 | 1295 | |||||
| 315 | 0.48 | 4.01 | 1.1 | 445 | 1475 | |||||
| 400 | 0.57 | 4.73 | 1.0 | 515 | 1712 | |||||
| 500 | 0.68 | 5.66 | 1.0 | 6.0 |
460 | 1995 | ||||
| 630 | 0.81 | 6.82 | 0.9 | 565 | 2450 | |||||
| 800 | 0.98 | 8.25 | 0.8 | 635 | 2765 | |||||
| 1000 | 1.15 | 11.33 | 0.7 | 840 | 3650 | |||||
| 1250 | 1.35 | 13.20 | 0.7 | 970 | 4220 | |||||
| 1600 | 1.63 | 15.95 | 0.6 | 1105 | 4800 | |||||
| 2000 | 1.95 | 19.14 | 0.6 | 1205 | 5240 | |||||
| 2500 | 2.34 | 22.22 | 0.5 | 1300 | 5650 | |||||
Features & Attributes of Laminated Core Distribution Transformer
This 80kVA/10kV Distribution Transformer is engineered for stable power distribution. Leveraging Laminated Core Transformer technology, its precision-laminated silicon steel sheets reduce no-load losses, achieving over 98.5% energy conversion efficiency. The Oil-Immersed Transformer structure utilizes mineral oil as an insulating medium, enhancing heat dissipation and short-circuit resistance, even in extreme environments like high temperatures or humidity.
The hermetically sealed Oil Filled tank prevents oxidation and contamination, minimizing maintenance needs. High-purity copper windings, wrapped with multilayer insulation paper, ensure a withstand voltage exceeding 35kV. Compatible with 50Hz/60Hz dual-frequency systems, it meets global grid standards, ideal for factories, commercial complexes, and renewable energy plants.
Additionally, customizable tap changer configurations (±5% voltage adjustment) adapt to grid fluctuations. Certified by IEC 60076, it operates below 55dB noise levels, combining high performance with low environmental impact. This Laminated Core Distribution Transformer is a sustainable solution for modern low-carbon power systems.
Basic Components of Oil-Immersed Laminated Core Distribution Transformer
This Laminated Core Distribution Transformer comprises five core components:
Core: Stepped laminated silicon steel sheets minimize hysteresis loss, ensuring efficient magnetic conduction.
Windings: High/low-voltage copper windings adopt a layered pancake structure with interlayer insulation, optimized for Oil-Immersed environments.
Tank System: A hermetically sealed steel welded tank with Oil Filled cooling channels, featuring oil level gauges and pressure relief valves.
Insulation Medium: High-purity mineral oil provides insulation, cooling, and arc suppression, extending the Distribution Transformer's lifespan.
Protection Devices: Integrated temperature sensors, pressure relays, and gas relays monitor real-time status of the Oil-Immersed Transformer.
With a compact design and IP55 protection rating, it suits outdoor deployment in urban grids, industrial parks, and more.
Application Scenarios
The Laminated Core Distribution Transformer excels in diverse scenarios:
Industrial Sector
Commercial Buildings
Renewable Energy
Rural Grids
Critical Infrastructure
video
Why choose us?
GNEE strictly follows the comprehensive acceptance testing process to ensure that the performance of each device meets the standards. Our products and services have been successfully applied in more than 50 countries and regions around the world. As a trusted global industrial partner, we are always committed to helping customers achieve their sustainable development vision through high-quality products and full-process services.
Support
• Pre-sales: Free technical consulting, drawing review, and installation training.
• After-sales:
o Global warranty for 2 years; 5-year warranty on core components.
o 7×24-hour remote support, fault response within <24 hours.
o Operation manual provided.

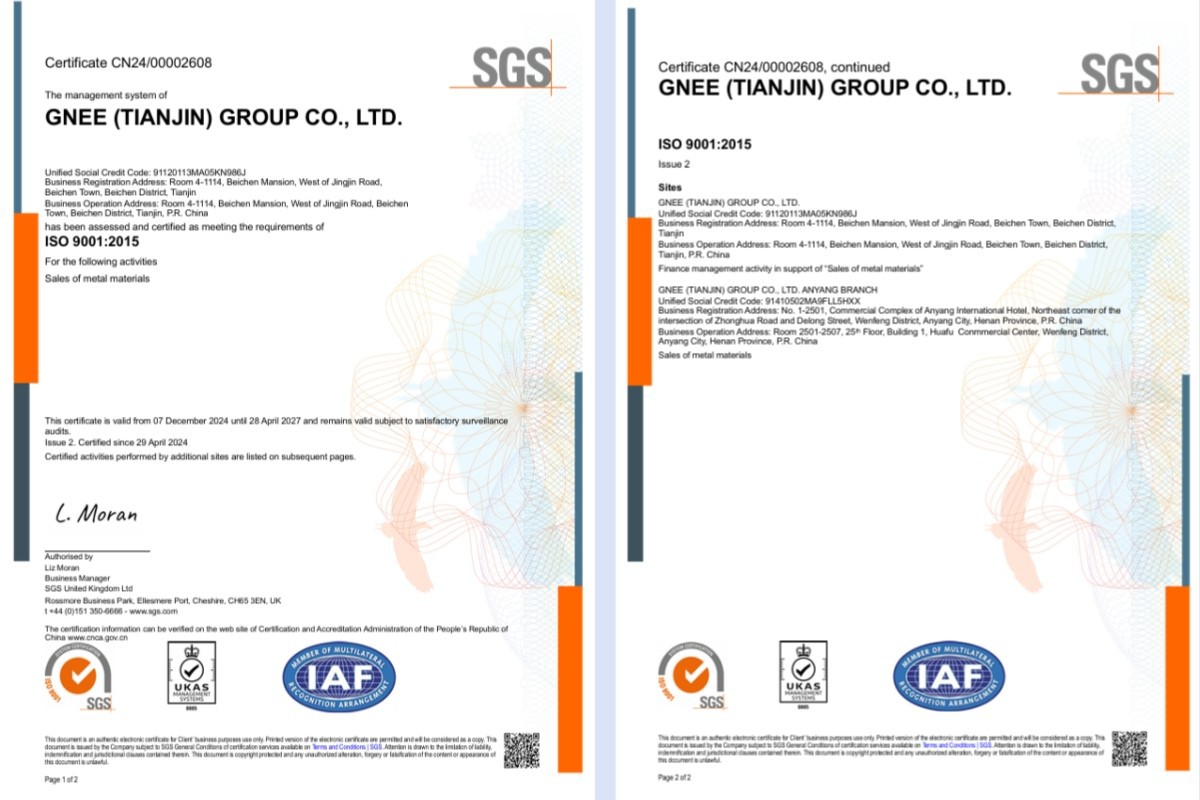

SGS certification certificate
Packing and Delivery
