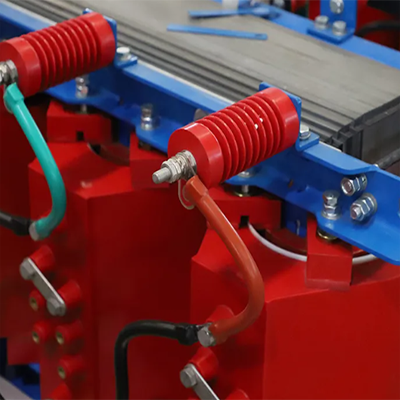

800 KVA 0.4kV Three Phase Epoxy Resin Cast Dry Type Transformer

800 KVA 0.4kV three-phase epoxy resin cast dry-type transformer Technical parameters and features
‌800 KVA 0.4kV three-phase epoxy resin cast dry-type transformer usually starts with "SCB". SCB14-800KVA-10/0.4kV means that the transformer is a three-phase epoxy resin cast dry-type transformer with a rated capacity of 800KVA, a high-voltage side rated voltage of 10kV, and a low-voltage side rated voltage of 0.4kV‌
‌800 KVA 0.4kV three-phase epoxy resin cast dry-type transformer uses epoxy resin as the insulation material, which has high strength and good electrical properties‌

‌

800 KVA 0.4kV three-phase epoxy resin cast dry-type transformer structural features‌:
High and low voltage windings are all wound with copper strips (foils), epoxy resin is cast and cured in a vacuum to form a high-strength fiberglass body structure. This structure makes the transformer have excellent electrical performance and lightning strike resistance.

Performance indicators: in line with national standard GB6450-86 and technical standard GB/T10228-1997, with excellent partial discharge performance and electrical strength.

Application areas of 800 KVA 0.4kV three-phase epoxy resin cast dry-type transformers
Epoxy resin cast dry-type transformers are widely used in various occasions requiring high-performance power conversion, including:
Commercial and industrial facilities: such as hotels, airports, high-rise buildings, commercial centers, residential areas, etc.
Special environments: such as subways, smelters, power plants, ships, offshore drilling platforms and other places with harsh environments.
