Dry Type Isolation Transformer
Type: High-efficiency Dry Type Isolation Transformer
Certifications: ISO 9001, SGS, CE compliant for global operations
Advantages: Compact lightweight construction, low noise, oil-free eco-design. Ideal for 3 Phase Isolation Transformer applications.
Have questions? GNEE sales representatives are available for live chat now
Send E-mail: sales@gneeelectric.com
Tel: +8615824687445
Product Specifications of Dry Type Isolation Transformer
Core Structure:
Features SCB 11-18 epoxy resin encapsulation technology, ensuring superior insulation for trafo dry type windings in complex grid environments.
Electrical Performance:
Supports 3 phase isolation transformer configuration with wide voltage regulation (±5%), reducing no-load loss by 20%.
Safety Standards:
CE EMC certified, complies with IEC 60076 international standards, F1 fire rating.
Eco-Design:
Oil-free Dry Type Isolation Transformer eliminates leakage risks for dense indoor installations.
Smart Monitoring:
Optional temperature sensors enable real-time trafo dry type status tracking, enhancing system reliability.

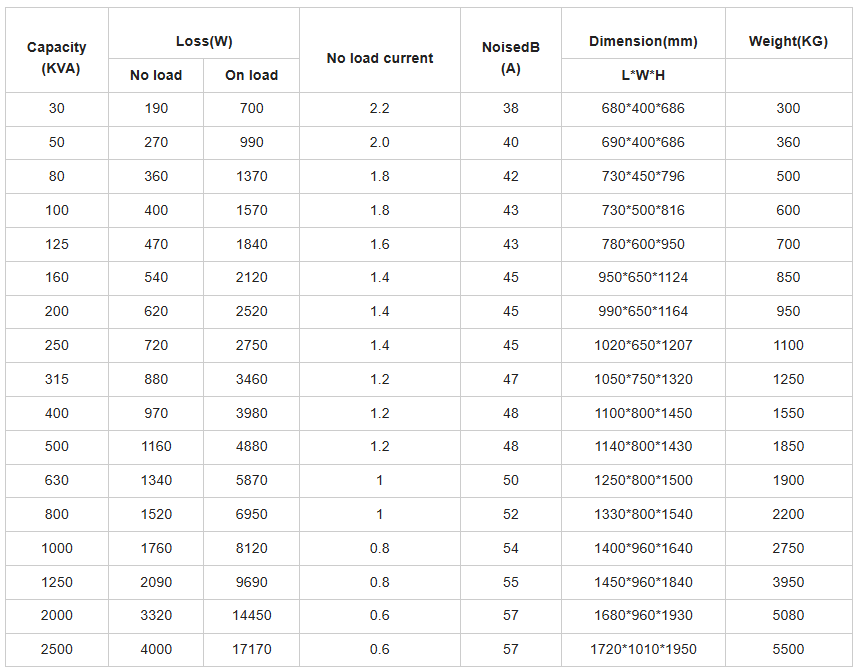

Products parameter
Performance Advantages & Applications
Moisture/Crack Resistance:
Dry Type Isolation Transformer utilizes VPI technology with IP54 protection, ensuring stability in humid conditions.
Maintenance-Free:
Oil-less trafo dry type design eliminates routine maintenance, ideal for unattended substations.
Short-Circuit Withstand:
3 phase isolation transformer features ≤6% dynamic impedance and 25kA/1s short-circuit capacity.
Applications:
Data centers (humidity resistance), offshore platforms (salt spray resistance), hospitals (maintenance-free operation), mining sites (vibration/crack resistance).
