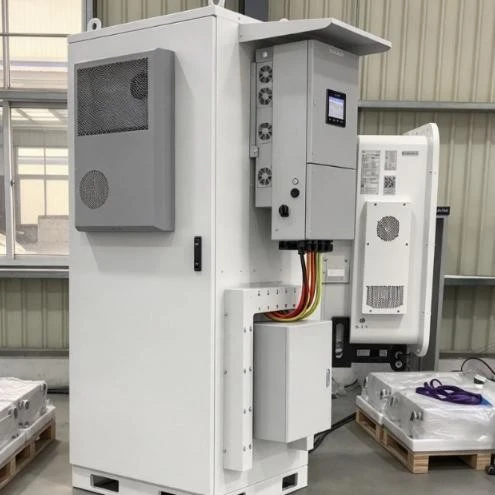

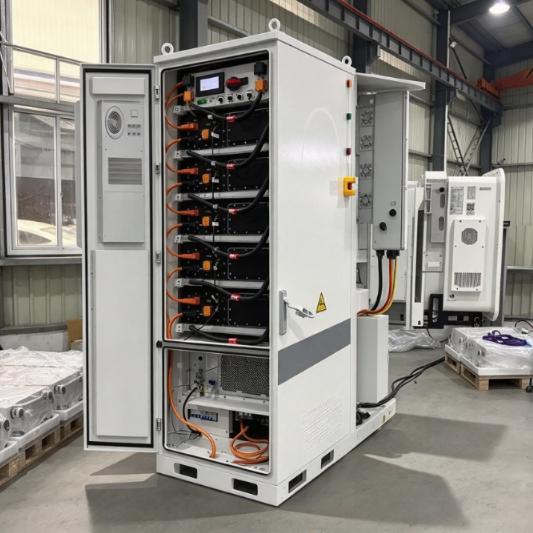

30KW 51.2KWh Energy Storage Outdoor Battery Cabinet
Cooling method: Air cooling
Output voltage : AC 230/400V
Output frequency: 60/55-65
Compatible with mainstream inverters
Protection rating: IP56 (outdoor)
Certificates: CE/IEC/UN38.3/MSDS
Have questions? GNEE sales representatives are available for live chat now
Send E-mail: sales@gneeelectric.com
Tel: +8615824687445
Henan GNEE Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of 30kw 51.2kwh energy storage outdoor battery cabinet in China. If you're going to buy customized 30kw 51.2kwh energy storage outdoor battery cabinet made in China, welcome to get quotation from our factory. Quality products and reasonable price are available.

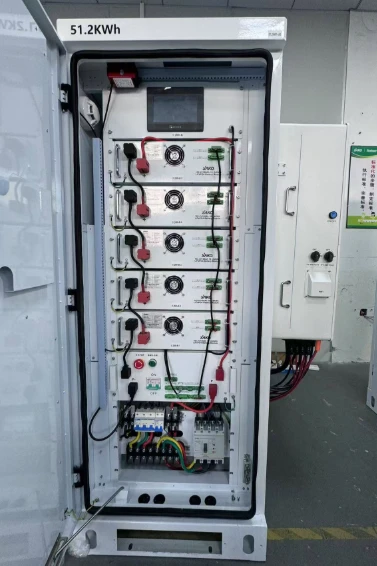

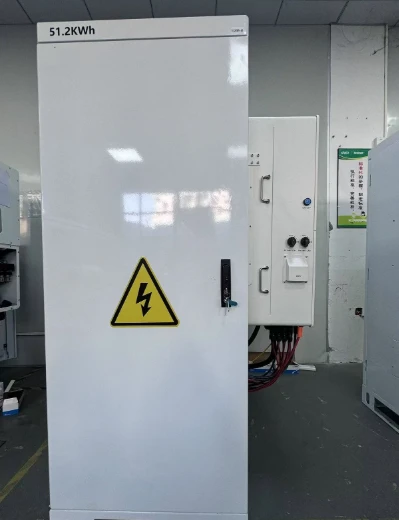

30KW 51.2KWh outdoor energy storage cabinet

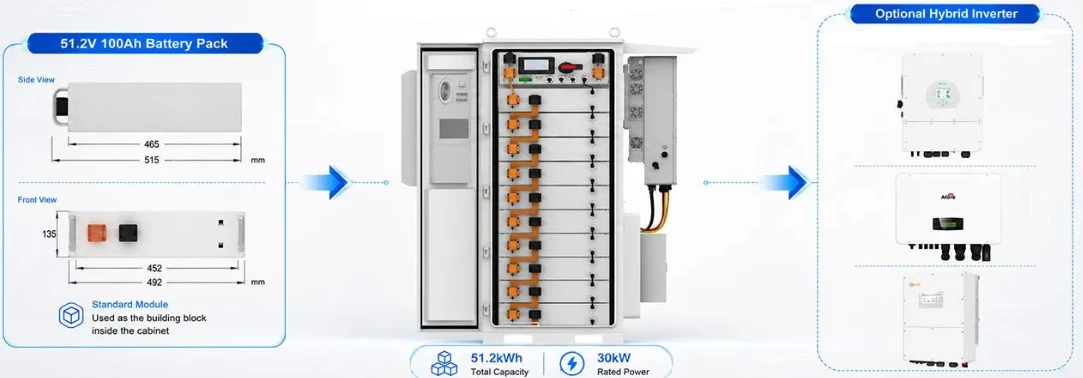

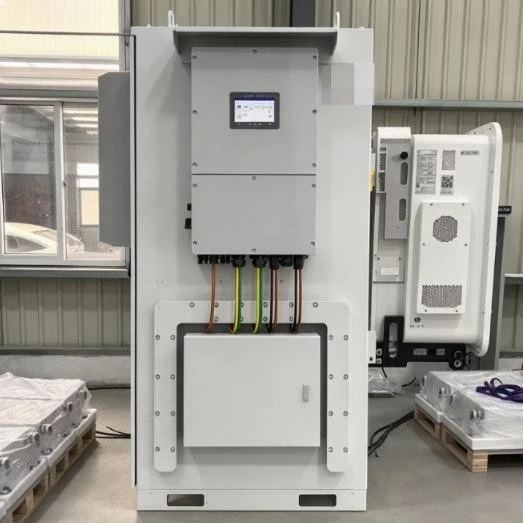

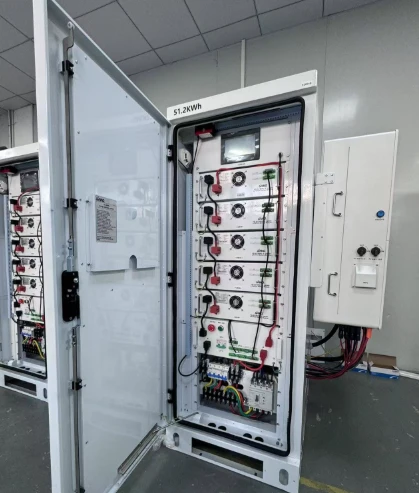

The 30KW 51.2KWh energy storage outdoor battery backup is a pre-wired, plug-and-play all-in-one outdoor energy storage cabinet that integrates a 30kW three-phase hybrid inverter, a 51.2kWh LiFePO4 (LFP) high-voltage battery system, an intelligent BMS, an EMS platform, fire protection, and power distribution in a single IP55 weatherproof enclosure.
Engineered for commercial backup power, off-grid power supply, solar self-consumption, peak shaving, and microgrid applications, it delivers reliable electricity continuity for factories, farms, telecom stations, hotels, and commercial buildings in weak-grid and off-grid regions.
Unlike ordinary battery cabinet assemblers, we are full-range power equipment manufacturer - transformers, switchgear, distribution boxes, and box-type substations - which means your 30kW/51.2kWh battery backup is designed, wired, and tested as a complete electrical system under one roof.
Send us your load list and daily consumption today, and our engineers will return a tailored configuration and quotation within 24 hours.
| Item | Parameter |
|---|---|
| Model | GNEE-30K/51.2K Outdoor BESS Cabinet |
| Rated Inverter (PCS) Power | 30 kW, three-phase hybrid |
| Nominal Battery Capacity | 51.2 kWh (51.2V 100Ah × 10 LFP modules, 512V) |
| Battery Chemistry | LiFePO4 (LFP), automotive-grade cells, ≥6,000 cycles @ 80% DoD |
| Max. PV Input | 60 kW, 3 MPPT trackers |
| AC Output | 220/380V or 230/400V, 3P+N+PE, 50/60Hz configurable |
| Protection Rating | IP55 outdoor cabinet |
| Operating Temperature | –20°C to +55°C (charging 0~+55°C); optional air conditioning for extreme heat |
| Cooling | Intelligent air cooling, temperature-controlled fans |
| Fire Protection | Aerosol fire suppression + smoke/temperature detection, linked to BMS |
| Certifications | CE, IEC 62619, IEC 61427, UN38.3, MSDS, IEC 61000 EMC |

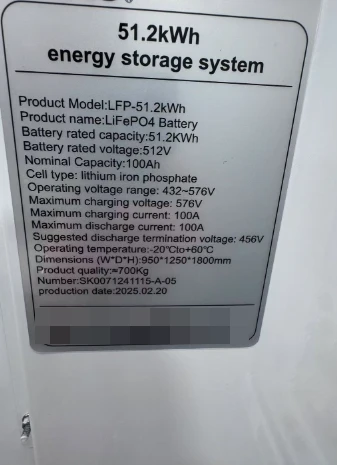

Full Technical Parameters of the 30kW 51.2kWh LiFePO4 Battery Storage System
| Category | Parameter | Value |
|---|---|---|
| Battery System | Nominal energy | 51.2 kWh |
| Nominal voltage / range | 512 V (160–700 V operating window) | |
| Configuration | 51.2V 100Ah × 10 modules in series | |
| Cycle life | ≥6,000 cycles @ 80% DoD, 0.5C, 25°C (≈80% remaining capacity) | |
| Design life | 15+ years | |
| Round-trip efficiency | ≥92% (DC), ≥88% (AC, system level) | |
| Hybrid Inverter (PCS) | Rated AC output power | 30 kW |
| Max. charge / discharge current | 75 A / 75 A | |
| Max. PV input power | 60 kW | |
| MPPT trackers / strings | 3 MPPT, 2+2+2 strings | |
| MPPT voltage range | 200–1000 V | |
| AC output | 220/380V, 230/400V, 3P+N+PE | |
| Frequency | 50 / 60 Hz | |
| Grid-tie / off-grid / hybrid modes | Supported, automatic <10 ms UPS-level transfer | |
| Safety & BMS | BMS | 3-level protection (cell–module–system), active balancing |
| Protection functions | Over-charge, over-discharge, over-current, short-circuit, over/under-temperature, insulation monitoring | |
| Fire protection | Aerosol extinguisher + smoke + temperature sensing, BMS-interlocked | |
| Cabinet protection | IP55, anti-corrosion outdoor coating, C5-class paint optional | |
| Monitoring | WiFi / 4G / Ethernet, remote cloud platform + local touchscreen | |
| Mechanical | Dimensions (W×D×H) | ≈ 700 × 850 × 1,900 mm (with rain canopy) |
| Weight | ≈ 900 kg | |
| Installation | Free-standing outdoor, concrete pad or steel base | |
| Parallel expansion | Up to 8 cabinets in parallel (up to 409.6 kWh) |
Want the complete PDF datasheet and a wiring diagram for your tender document?
Email sales@gneeelectric.com or message us on WhatsApp +86 158 2468 7445 - our engineering team responds within one business day.
Core Advantages of the GNEE 30kW 51.2kWh Outdoor Energy Storage Cabinet
Built for Harsh Outdoor Environments
IP55 protection against dust and driving rain, an anti-corrosion coated steel enclosure, and a –20°C to +55°C operating window (with optional air conditioning for extreme tropical heat) keep the system running through desert summers and monsoon seasons alike - the conditions that kill ordinary indoor-designed battery racks within two years.
Intelligent EMS with Remote Monitoring
The built-in EMS supports solar self-consumption, time-of-use arbitrage, peak shaving, and backup priority strategies - configurable from a local touchscreen or remotely via the 4G/WiFi cloud platform. Fleet operators can monitor cabinet-level status, alarms, and revenue data for multiple sites from one dashboard.
Scalable from 51.2kWh to MWh-Class
Start with one cabinet, expand up to 8 cabinets in parallel (409.6kWh, 240kW) as your load grows, or step up to GNEE's containerized BESS and box-type substations for utility-scale projects. Your investment today is the first building block of a larger microgrid tomorrow.
True All-in-One Integration - 70% Less On-Site Work
Inverter, LFP battery, BMS, EMS, distribution unit, and fire protection are pre-wired and factory-tested. Your site crew only needs to mount the cabinet, connect PV/grid/generator/loads, and power on. For remote projects where skilled electrical labor is scarce and expensive, this plug-and-play outdoor battery backup eliminates the biggest cost and risk in the whole installation.
One-Stop Power Equipment Supplier, Not a Cabinet Assembler
We manufactures the complete power chain around your storage system: pad-mounted and distribution transformers, medium/low-voltage switchgear, distribution boxes, and compact box-type substations. Whether your project needs a step-up transformer for PV integration, a custom LV panel for load distribution, or a full containerized substation - you source it from one accountable manufacturer, with matched interfaces and a single warranty path.
Application Scenarios: Where a 30kW 51.2kWh Battery Backup Pays Back Fastest
Backup Power for Commercial Sites in Weak-Grid Areas
Factories, cold-storage facilities, hotels, hospitals, and commercial buildings in weak-grid regions across Africa, Southeast Asia, the Middle East, and Latin America lose real revenue with every outage. The 30kW/51.2kWh cabinet detects grid failure and transfers to battery power in under 10 milliseconds - fast enough that computers, refrigeration, and production lines never notice. Paired with solar PV, it recharges for free every sunny day instead of burning diesel.
Off-Grid Power Supply for Farms, Telecom Stations, and Remote Facilities
Where no utility grid exists, the cabinet forms a standalone power station with a PV array and an optional diesel generator as last-resort backup. A typical configuration - 30kW PV + 51.2kWh battery - reliably covers 120–180 kWh of daily consumption, ideal for irrigation pumping, farm processing, telecom base stations, mining camps, and rural clinics.
Solar Self-Consumption and Peak Shaving for Industrial Users
In markets with high feed-in tariffs lower than retail tariffs, or with demand charges, the system stores midday solar surplus and discharges during evening peaks - cutting electricity bills by 30–60% for facilities on time-of-use tariffs. Peak shaving also flattens demand spikes that trigger expensive maximum-demand penalties.
Microgrid Energy Storage Unit
The cabinet serves as the core storage node in a small microgrid, coordinating PV, grid, generator, and loads through its EMS. Multiple cabinets parallel into larger microgrids for industrial parks, island grids, and remote communities.
Running a project in one of these scenarios right now?
Share your single-line diagram or monthly electricity bill with us - GNEE engineers will mark up exactly where this cabinet fits and what your payback period looks like.
FAQ
How long can a 51.2kWh battery backup run my loads?
At the full 30kW output, the usable energy (≈48.6kWh at 95% DoD) runs about 1.6 hours. For typical mixed commercial loads of 8–12kW, it covers 4–6 hours - and with solar charging during the day, the backup becomes effectively unlimited in sunny regions.
Can the cabinet work without any grid connection?
Yes. In off-grid mode it forms the grid together with the hybrid inverter, supplying PV, generator, and loads. Grid connection is optional, not required.
Can I expand the system later?
Yes - up to 8 cabinets parallel to 409.6kWh / 240kW, and GNEE also supplies larger containerized BESS from 100kWh to MWh scale for future growth.
Do you support OEM/ODM and project customization?
Yes. Battery capacity, system voltage, frequency (50/60Hz), color, logo, and inverter brand (Deye, Growatt, Solis, or equivalent) are all configurable to match your market and tender requirements.
Get Your Tailored 30kW 51.2kWh Battery Backup Quote Today
Send us three numbers - peak load (kW), daily consumption (kWh), and required backup hours - and GNEE's engineering team will return a complete configuration, price, and delivery plan within 24 hours. No generic price lists, no pushy sales scripts: just a verifiable proposal from a manufacturer that builds the transformers, switchgear, and storage cabinets as one integrated system.
📧 Email: sales@gneeelectric.com
💬 WhatsApp: +86 158 2468 7445
🌐 Inquiry form: https://www.gneeelectric.com/contact-us
