Cooling Methods in 500 kVA Oil Filled Transformers: ONAN vs ONAF Explained

When selecting 500 kVA oil filled transformers ONAN vs ONAF, understanding the cooling method is essential for ensuring performance, reliability, and lifespan.



At GNEE Electric, we are a professional transformer manufacturer specializing in oil immersed transformers designed for diverse operating environments, from standard industrial use to extreme high-temperature conditions.



Cooling systems directly affect transformer efficiency, load capacity, and long-term durability. In this article, we explain the differences between ONAN and ONAF cooling methods and help you determine which is best for your project.





In 500 kVA oil filled transformers ONAN vs ONAF, the cooling method determines how heat is dissipated from the transformer core and windings.



ONAN (Oil Natural Air Natural)
Oil circulates naturally, and heat is dissipated through natural air convection.



ONAF (Oil Natural Air Forced)
Oil circulation remains natural, but external fans are used to force air over radiators, improving cooling efficiency.



Both methods are widely used, but they differ significantly in performance and application scenarios.





Natural Cooling Process in ONAN Transformers

In ONAN systems:

• Heat from windings is absorbed by transformer oil
• Heated oil rises and flows through radiators
• Heat is released into the surrounding air naturally

This passive process requires no external power and relies entirely on temperature differences.



Advantages of ONAN Cooling

• Simple structure with no moving parts
• Lower maintenance requirements
• Quiet operation
• High reliability

ONAN is ideal for standard operating conditions with moderate loads.

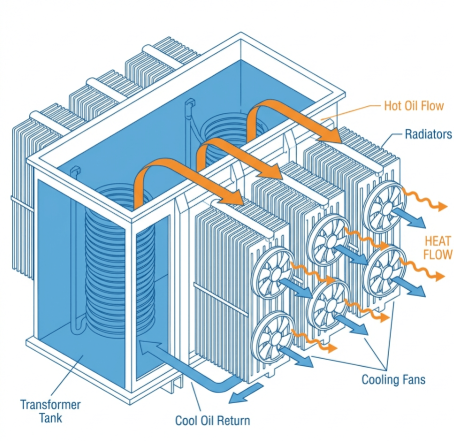

Transformer Cooling Radiators and Fan System





Forced Air Cooling Mechanism in ONAF Transformers

In ONAF systems:

• Oil circulation remains natural
• External fans blow air across radiators
• Heat dissipation is significantly enhanced

This allows the transformer to operate at higher loads without overheating.



Advantages of ONAF Cooling

• Improved heat dissipation
• Higher load capacity (up to 20–30% increase)
• Better performance in high ambient temperatures

ONAF is commonly used in demanding environments where additional cooling is required.

Transformer with cooling fans – ONAF system installed on radiators





Feature	ONAN	ONAF
Cooling Type	Natural	Forced (fans)
Energy Consumption	None	Requires power for fans
Maintenance	Low	Moderate
Noise Level	Low	Higher (fan noise)
Load Capacity	Standard	Higher (20–30% increase)
System Complexity	Simple	More complex
Initial Cost	Lower	Higher
Reliability	Very high	High (depends on fan system)





Efficiency Under Different Load Conditions

For 500 kVA oil filled transformers ONAN vs ONAF:

• ONAN performs efficiently under rated load
• ONAF maintains efficiency under overload or high temperature



Temperature Control Capability

ONAF systems can significantly reduce operating temperature, especially in:

• Hot climates (above 40°C)
• Continuous high-load applications
• Poor ventilation environments





When to Choose ONAN Cooling

• Standard industrial applications
• Moderate ambient temperature environments
• Projects requiring low maintenance and cost



When to Choose ONAF Cooling

• High-temperature regions (Middle East, Africa, Southeast Asia)
• Heavy industrial loads
• Projects with frequent overload conditions





Parameter	ONAN Version	ONAF Version
Rated Capacity	500 kVA	500 kVA (up to 650 kVA with fan cooling)
Cooling Method	ONAN	ONAN / ONAF
Voltage Ratio	11kV / 0.4kV	11kV / 0.4kV
Frequency	50Hz / 60Hz	50Hz / 60Hz
Vector Group	Dyn11	Dyn11
Temperature Rise	≤ 60K	Lower under same load
Noise Level	Low	Moderate
Power Consumption	None	Fan power required
Standards	IEC / ANSI / GB	IEC / ANSI / GB





At GNEE Electric, we offer both ONAN and ONAF cooling solutions tailored to your project needs:

• Custom cooling system design based on environment and load
• High-quality materials and advanced manufacturing
• Strict testing for temperature rise and performance
• Global export experience in diverse climates
• Reliable delivery and professional technical support

We help clients choose the most cost-effective and reliable cooling solution.





In summary, 500 kVA oil filled transformers ONAN vs ONAF each offer unique advantages. ONAN provides simplicity, reliability, and low maintenance, while ONAF delivers enhanced cooling performance for high-load and high-temperature applications.
