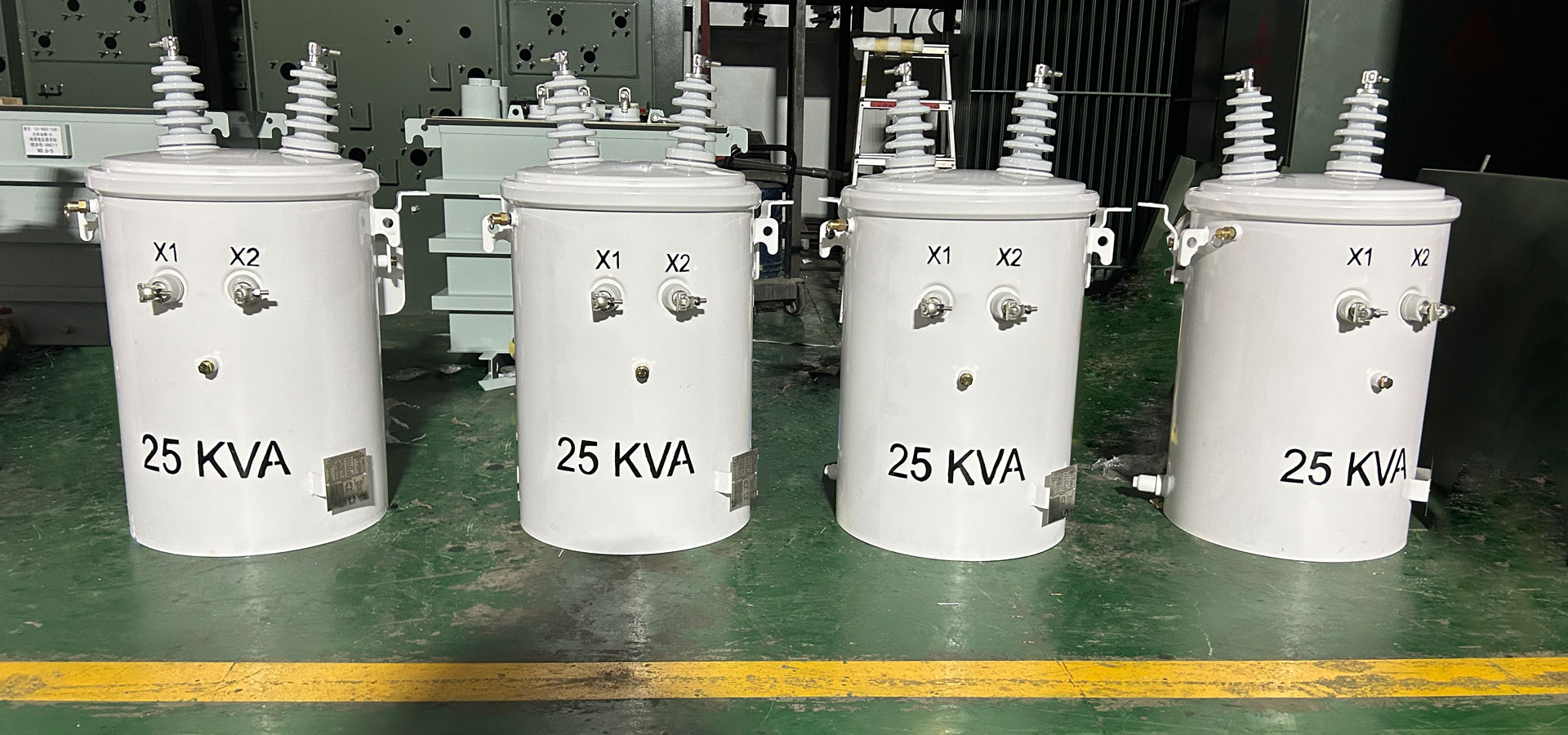

25KVA Single Phase Pole Mounted Distribution Transformer

The single phase pole mounted transformer is a fully sealed cylindrical structure and is installed by pole-mounted suspension. It has the advantages of small size, strong overload capacity, high continuous operation reliability, and simple maintenance. The product is widely used in industrial and agricultural power grid transmission and distribution.

GNEE's 25 kVA single-phase transformers have successful exports to the United States, Canada, Honduras, Guyana, Venezuela, Cameroon, Philippines, and other countries.

Contact GNEE Transformer for special requirements

Tel:+86-15824687445

Email:sales@gneesteels.com

25kva single-phase oil-filled pole-mounted distribution transformers 13.8KV 34.5KV To 240V

1.GNEE 25kVA 19.92kV Single Phase Transformer For Venezuela

At 2024,a customer in Venezuel purchased 60 units from GNEE Transformer 25 kVA single phase pole mounted transformer. This exceptional transformer boasts a robust 25 kVA capacity, with a primary voltage of 19.92kV and a secondary voltage of 240 (120) V, built according to IEEE C57.12.20 standard, and meets ANSI C57.12 standard efficiency value.

The 25 kVA single-phase pole-mounted transformer employs high-quality aluminum winding material for both its high and low-voltage sections, ensuring superior performance and reliability. With an impedance value of 2%, it features a Vector group of Ii0 and polarity that is Subtractive, enhancing its efficiency.

The transformer's high voltage with five distinct levels of voltage regulation, provides outstanding versatility, while the voltage regulation range of 19.92kV±2×2.5% ensures steadfast stability even during fluctuations.

2.GNEE 25kVA 7.2(12.47)kV/4.8(8.32)kV Single Phase Transformer For Canada

GNEE secured an order from a Canadian utility for 50 kVA and 100 kVA single-phase transformers, underscoring the customer's trust in our premium offerings.

The 25 kVA single phase pole mounted transformer boasts a dual high voltage design, skillfully depicted in the accompanying drawing, featuring a user-friendly dual voltage switch. This enables seamless selection of high voltage from 7.2kV or 4.8 kV, catering precisely to varying load equipment requirements, offering unparalleled versatility.

The transformer incorporates an efficient ONAN cooling system, complemented by PCB-free mineral oil 45#, ensuring safety and environmental responsibility.

Employing the reliable Ii6 vector group and additive polarity, the transformer stands as a pinnacle of performance and reliability. The main accessories include：
Accessories‌:

• 1 high voltage bushing
• 3 low voltage bushings
• 1 dual voltage switch
• 1 pressure relief device
• 1 H₂ terminal
• 2 copper strips
• 3 tank grounds
• 2 support lugs
• 2 lift lugs
• 6 cover clamps

3.GNEE 25kVA 17.32kV Single Phase Transformer For Cameroon

GNEE Transformer has delivered 15 units of 25 kVA single-phase transformers to a Cameroonian customer.

These units feature:

• Primary voltage: ‌17.32 kV‌
• Secondary voltage: ‌230V‌
• Winding material: ‌Copper‌
• Operating frequency: ‌50 Hz‌
• Vector group and polarity: ‌Ii0 with additive polarity‌
• Voltage regulation range: ‌17.32kV ± 2×2.5%

‌

Operating at a frequency of 50 Hz and featuring a Vector group of Ii0 with additive polarity, it ensures seamless integration into diverse power systems.

The transformer with a regulation range of 17.32kV±2×2.5%, enabling precise and stable voltage output even under varying load conditions.

Engineered to meet the customer's exact requirements, the transformers ensure operational reliability and system compatibility under variable load conditions.

4.GNEE 25kVA 13.8kV Single Phase Transformer For Philippines

This 25kVA 13.8 kV single-phase pole-mounted transformer is designed for Philippines customers.

5.25 KVA 0.4 KV Pole Mounted Distribution Transformer for Georgia

The 25 kVA distribution transformer was delivered to Georgia in 2022 for a national project. Transformers are used on the highway.

The rated power of the transformer is 25 kVA with ONAN cooling, the primary voltage is 0.4 kV, the secondary voltage is 0.69 kV, the phase is three, they formed a vector group of Dyn11.

Our 25 kVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.

We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!

25 kVA transformer specifications type and data sheet

25kVA-0.4/0.69kV Transformer Oil Tank

Oil Tank:

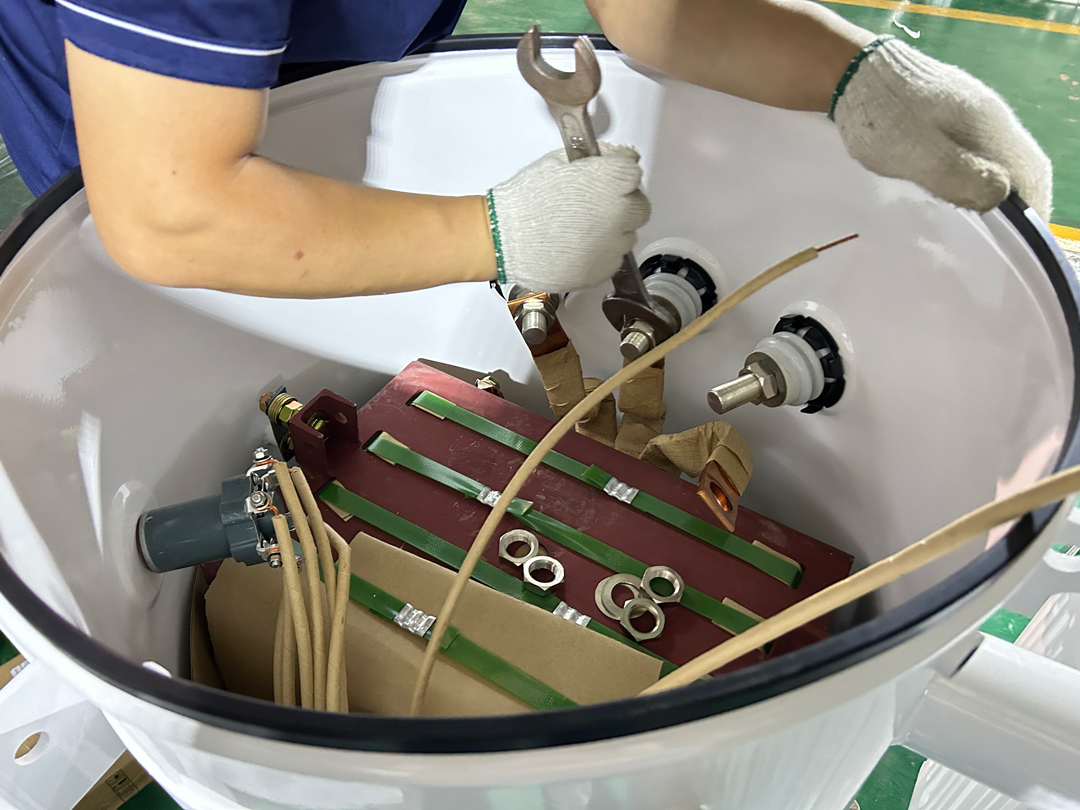

1. The oil tank is a transformer housing containing the iron core, winding and transformer oil.

2. The corrugated tank structure is fully sealed, and the corrugated will expand and compress with the increase of oil, isolating the transformer from the atmosphere and preventing oil deterioration and moisture. After oil removal, rust removal and phosphating treatment, the surface of corrugated oil tank is coated with rainproof paint. Moisture and salt spray.

*Cost-effective design
*High efficiency and low noise levels
*Dual voltage capability
*Coating meets or exceeds IEEE C57 standard
*Excellent sealing for protection against environmental factors
*Polymer-type low voltage bushings
*Porcelain-type high voltage bushings
*Convenient cover or sidemounted voltage bushings
*Spade or clamp type terminals
*Compatible with both mineral oil and biodegradable vegetable oil as insulating oil
*Provision for surge arrester bracket, with brackets available if needed

-High voltage copper wire winding technology to improve lightning resistance performance

-Low voltage foil winding technology, high-quality A-E grade insulation material insulation

-Low magnetic leakage, high mechanical strength, and strong short-circuit resistance

-The material of the iron core is high-quality cold-rolled grain oriented silicon steel sheets with mineral oxide insulation (from Baosteel and Wuhan Iron and Steel Group in China)

-By controlling the process of cutting and stacking silicon steel sheets, the loss level, no-load current, and noise are minimized
