YB Type Prefabricated Substation

Henan GNEE Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of yb type prefabricated substation in China. With abundant experience, we warmly welcome you to wholesale high quality yb type prefabricated substation at low price from our factory. Contact us for more cheap products.

Product Introduction

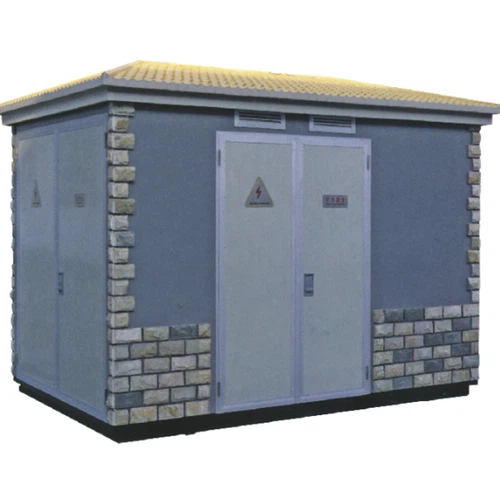

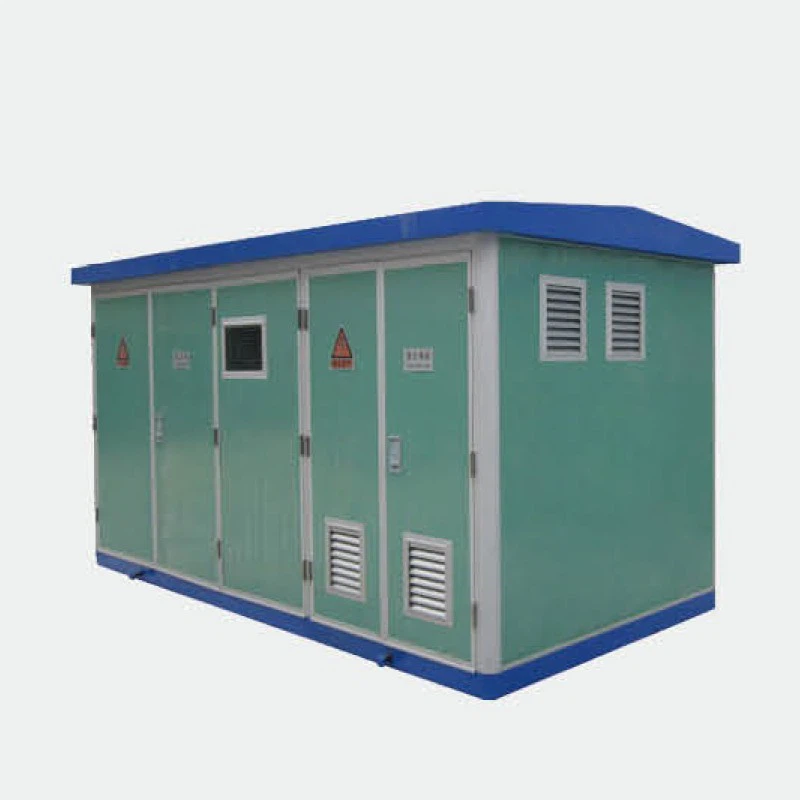

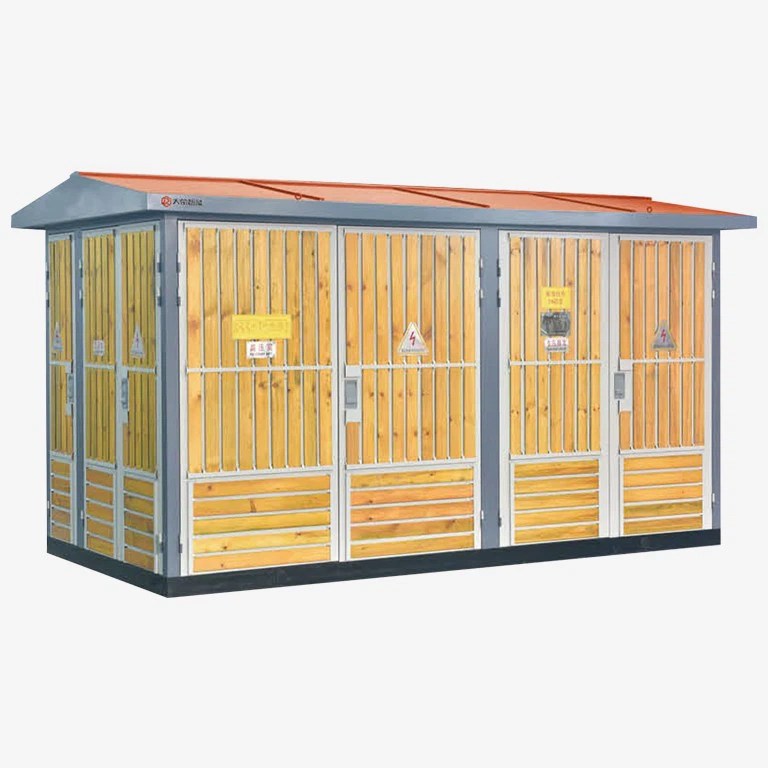

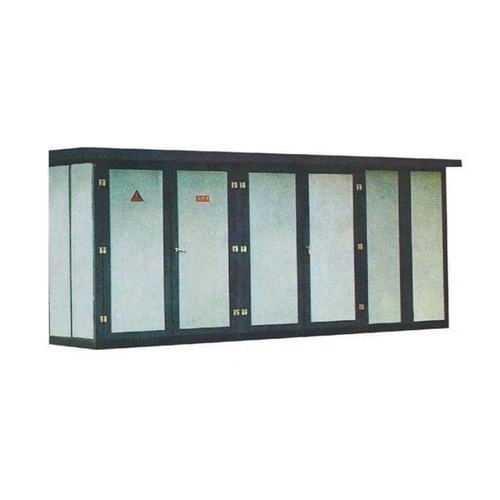

The YB type prefabricated substation , also known as European type box transformer, is composed of four parts: high voltage switchgear, low voltage distribution panel, distribution transformer, and outer shell. It is used as a power supply and distribution device. Due to its small size, small footprint, compact structure, and ease of relocation, it shortens the construction cycle and footprint, as well as reduces construction costs.

At the same time, the box type substation has simple on-site installation, fast power supply, simple equipment maintenance, and does not require dedicated personnel to be on duty. It can penetrate deep into the load center, and the reliability of power supply and the transformation of the distribution network are important. The box transformer completes the functions of energy conversion, distribution, transmission, measurement, compensation, system control, protection, and communication.

Technical Specification

Product Features:

1. Land saving, energy-saving, small and compact, making it easy to fully utilize the existing environment and foundation, carry out product updates, save investment, and achieve quick results.

2. The shell adopts a patented technology structure with good heat dissipation. The product is arranged in a zigzag pattern, and the dimensions are basically the same as the original American box transformer structure. The transformer adopts a special heat dissipation design, with low losses and low temperature rise.

3. The communication room can realize the connection of automation signals and energy meter signals to the splitter through network cables, and the splitter outputs them through optical fibers to achieve photoelectric conversion.

4. Compared with the American box type transformer, the product has enhanced ring network capability, with a 630A ring network capability far greater than a 200A ring network, ensuring stable and reliable operation.

YB type prefabricated substation is suitable for residential community, large-scale construction site, industrial and mining enterprises, high-rise buildings, urban lamp street lighting control and distribution. , oil fields, mines, narrow streets, temporary electricity and other places.
