What is the lightning - protection measure for a Pad Mounted Transformer?

Lightning is a powerful and potentially destructive natural phenomenon. For pad-mounted transformers, which are crucial components in electrical distribution systems, effective lightning - protection measures are essential to ensure their reliable operation and prevent costly damage. As a pad - mounted transformer supplier, I understand the significance of safeguarding these transformers against lightning strikes. In this blog, I will discuss the lightning - protection measures for pad - mounted transformers.

Understanding the Threat of Lightning to Pad - Mounted Transformers

Lightning can cause significant damage to pad - mounted transformers in several ways. A direct lightning strike can deliver an extremely high - voltage surge, which may exceed the insulation capabilities of the transformer. This can lead to insulation breakdown, short - circuits, and ultimately, the failure of the transformer. Even an indirect lightning strike, where the lightning hits nearby objects or the ground, can induce high - voltage surges in the electrical system connected to the transformer. These induced surges can also cause damage to the transformer's internal components, such as windings and insulation.

Lightning - Protection Measures

Surge Arresters

Surge arresters are one of the most common and effective lightning - protection devices for pad - mounted transformers. These devices are designed to divert excessive voltage surges caused by lightning strikes to the ground. When a high - voltage surge reaches the surge arrester, it provides a low - impedance path for the surge current to flow to the ground, protecting the transformer from the damaging effects of the surge.

Surge arresters are typically installed at the incoming terminals of the pad - mounted transformer. They need to be properly sized and rated to handle the expected surge currents and voltages. The selection of surge arresters depends on various factors, such as the system voltage, the lightning exposure level of the installation site, and the transformer's insulation coordination.

For example, in areas with high lightning activity, surge arresters with higher discharge current capabilities may be required. Additionally, surge arresters should be regularly inspected and tested to ensure their proper functioning. Faulty surge arresters may not be able to protect the transformer effectively, and they should be replaced immediately.

Grounding Systems

A proper grounding system is another critical component of lightning protection for pad - mounted transformers. The grounding system provides a low - resistance path for the lightning current to flow safely into the ground. It helps to limit the voltage rise on the transformer during a lightning strike and reduces the risk of electrical shock to personnel.

The grounding system for a pad - mounted transformer typically consists of grounding electrodes, such as ground rods, and grounding conductors. The grounding electrodes are buried in the ground around the transformer, and the grounding conductors connect the transformer's metallic enclosure and other conductive parts to the grounding electrodes.

The resistance of the grounding system should be kept as low as possible. In general, the grounding resistance should be less than 5 ohms for effective lightning protection. To achieve a low grounding resistance, multiple grounding electrodes may be used, and they should be properly spaced and connected.

Regular maintenance and testing of the grounding system are also necessary. Over time, the grounding electrodes may corrode, and the grounding conductors may become loose or damaged. These issues can increase the grounding resistance and reduce the effectiveness of the lightning - protection system.

Insulation Coordination

Insulation coordination is the process of selecting the appropriate insulation levels for the transformer and its associated equipment to withstand the expected overvoltages, including those caused by lightning. The insulation of the transformer should be designed to have sufficient dielectric strength to prevent insulation breakdown under normal operating conditions and during lightning strikes.

The insulation coordination takes into account factors such as the system voltage, the lightning impulse withstand voltage (LIWV), and the switching impulse withstand voltage (SIWV). The LIWV is the maximum voltage that the insulation can withstand for a short period of time during a lightning strike. The SIWV is related to the overvoltages caused by switching operations in the electrical system.

Transformer manufacturers need to ensure that the insulation of the pad - mounted transformers meets the relevant standards and specifications. For example, the insulation of the transformer windings should be designed to withstand the high - voltage surges caused by lightning strikes. Additionally, the insulation of other components, such as bushings and tap changers, should also be coordinated with the overall insulation system of the transformer.

Shielding

In some cases, shielding can be used as an additional lightning - protection measure for pad - mounted transformers. Shielding involves the use of conductive materials, such as metal enclosures or shields, to protect the transformer from direct lightning strikes.

A metal enclosure can act as a Faraday cage, which diverts the lightning current around the transformer. The enclosure should be properly grounded to ensure that the lightning current can be safely discharged to the ground. However, shielding alone may not be sufficient to protect the transformer from induced surges caused by indirect lightning strikes. Therefore, shielding should be used in combination with other lightning - protection measures, such as surge arresters and grounding systems.

Our Pad - Mounted Transformers and Lightning Protection

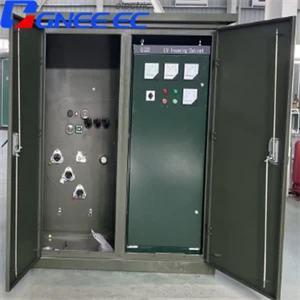

As a pad - mounted transformer supplier, we offer a range of high - quality transformers with effective lightning - protection features. Our Cooper Oil Filled Pad Mounted Transformer is designed with advanced insulation materials and surge - protection devices to ensure reliable operation even in areas with high lightning activity. These transformers are equipped with high - performance surge arresters that can effectively divert lightning - induced surges to the ground.

Our 75kVA To 5000kVA Pad Mounted Transformers are available in different configurations to meet the diverse needs of our customers. We pay close attention to insulation coordination during the design and manufacturing process to ensure that the transformers can withstand the expected overvoltages, including those caused by lightning.

In addition, our 167KVA Oil Immersed Single Phase Pad Mounted Transformer features a robust grounding system and proper shielding to enhance its lightning - protection capabilities. The metal enclosure of the transformer provides a certain degree of shielding, and the grounding system ensures that the lightning current can be safely discharged.

Importance of Professional Installation and Maintenance

Even with the best lightning - protection measures, the proper installation and maintenance of pad - mounted transformers are crucial. Professional installation ensures that all the lightning - protection components, such as surge arresters and grounding systems, are installed correctly and in accordance with the relevant standards.

Regular maintenance is also necessary to keep the lightning - protection system in good working condition. This includes inspecting the surge arresters for signs of damage or degradation, testing the grounding resistance, and checking the insulation of the transformer. Any issues found during the maintenance process should be addressed promptly to ensure the continued protection of the transformer against lightning strikes.

Conclusion

Lightning protection is of utmost importance for pad - mounted transformers. By implementing effective lightning - protection measures, such as surge arresters, grounding systems, insulation coordination, and shielding, we can significantly reduce the risk of damage to the transformers caused by lightning strikes. As a pad - mounted transformer supplier, we are committed to providing high - quality transformers with reliable lightning - protection features.

If you are in need of pad - mounted transformers and want to ensure their protection against lightning, we invite you to contact us for more information and to discuss your specific requirements. Our team of experts will be happy to assist you in selecting the right transformer and providing professional advice on lightning - protection solutions.
