167KVA Oil Immersed Single Phase Pad Mounted Transformer
Brand Name:GNEE
Certification:CE,ISO
Model Number:D-167/15
Minimum Order Quantity:1unit
Packaging Details:Plywood case
Delivery Time:30days
Payment Terms:T/T
Supply Ability:1000set/month
Have questions? GNEE sales representatives are available for live chat now
Send E-mail: sales@gneeelectric.com
Tel: +8615824687445
Single phase pad mounted transformer is oil-immersed distribution transformer.The traditional transformer is designed in a box-type shell. It has the characteristics of small size, light weight, low noise, low loss, safety and reliability.It is widely used in residential quarters, commercial centers, hospitals, parks, schools, etc.Single phase pad mounted transformers are self-cooled, available in loop or radial feed, and are dead front,Meet or exceeds ANSI /CSA/IEEE standards.
Oil Immersed Single Phase Pad Mounted Transformer Main data
| Transformer Type | Single Phase Pad Mounted Transformer |
| Transformer Configuration | Liquid Filled Pad Mounted |
| Transformer Feed Type | Loop Feed |
| Phase | Single Phase |
| Capacity | 167 KVA |
| Vector Group | II6 |
| Primary Voltage | 12470GrdY/7200 |
| Primary Voltage Class | 15 kV Class |
| Secondary Voltage | 240V/120 (L-N-L) |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Insulation Rating | Class E Insulation - 120°C, 248°F |
| Cooling Class | ONAN; Self-Cooled |
| Tap Changer | 5-Position Tap Changer, Hot Stick Operable |
| Impedance | 3.5% Typical |
| Efficiency Standard(s) | Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards |
| Fluid (Oil) Weight* | 727.51 Lbs |
| Winding Material | Copper |
| Ambient Operating Temperature Range | -40°C to +40°C (-50°F to +104°F) |
| Sound Level | 55 dBA |
| Core Material | Grain Oriented Steel |
| Tank Material | Coated Steel |
| Dimensions* | 55.12''-W x 45.67''-D x 33.07''-H |
| Total Weight (Liquid Filled)* | 2976.19 Lbs |
| Efficiency | 99.10% |
| No Load Loss (in watts)* | +/- 425W |
| Load Loss (in watts)* | +/- 1,733W |

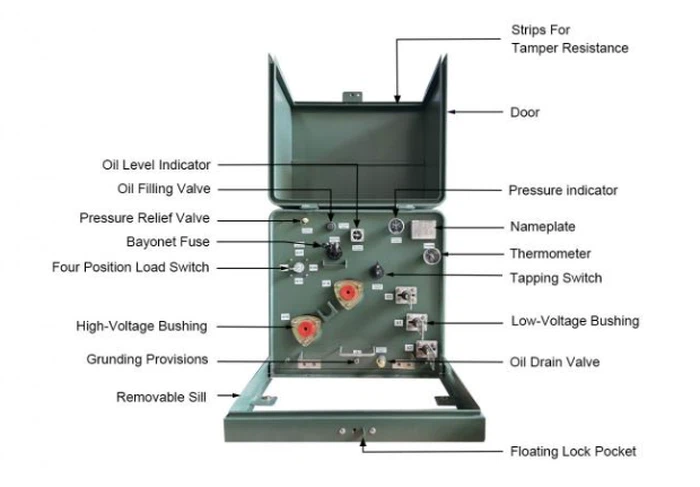

Feature Of oil immersed pad mounted transformer
1)single phase pad mounted transformer tank coating exceeds C57,12.8 and C57,12.29. Full compliance with IEEE C57.12.28 enclosure integrity standards.
2)Two externally clamped universal high-voltage bushing wells for loop feed operation or one externally clamped bushing well for radial feed operation .
3)Three externally clamped low-voltage bushings with threaded copper studs, including a fully insulated neutral terminal with removable ground strap .
4)Embossed bushing mounts; Recessed oil compartment bottom.
5)Threaded, flush mounted stainless steel lifting provisions.
6)Automatic pressure relief device.
7)Electrical grade mineral oil with oxidation inhibitor.
8)Removable hood with corrosion resistant stainless steel hinge pins and barrels Mild steel enclosure and detachable sill fastened with stainless steel hardware Front panel accessory mounting bracket.
9)Domed top surfaces on hood and oil compartment to prevent water retention .
10)Oil fill/oil level plug; Oil drain plug; Tank grounding provisions.
11)Corrosion resistant locking assembly with captive penta-head security bolt, floating nut and padlock provision.
