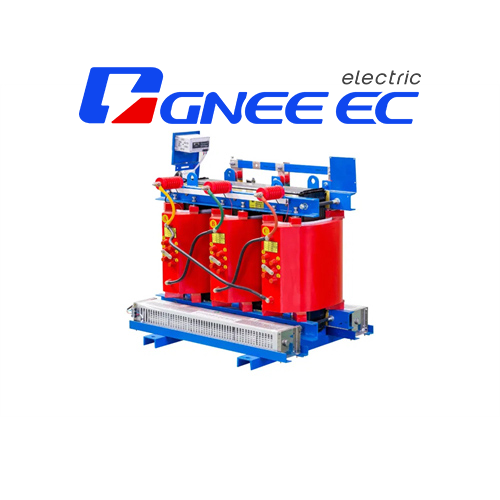

SC(B)10 Epoxy Resin Cast Dry Type Transformer
Have questions? GNEE sales representatives are available for live chat now
Send E-mail: sales@gneeelectric.com
Tel: +8615824687445
SC(B)10 epoxy resin cast dry type transformer is safe, fire resistant and fire prevention and pollution-free, it can be installed directly in the load center, with Maintenance free, easy installation, low operating cost, low loss and good moisture resistance. It can keep normal operation at 100% humidity. After shutdown, it can be put into operation without pre-drying. The partial discharge is low, the noise is small, and (he heat dissipation is strong. Under the condition of forced air cooling, it can run with 150% rated load. Equipped with a perfect temperature protection control system for the safe operation of the transformer to provide reliable guarantee, high reliability.
SC(B)10 Three Phase Epoxy Resin Cast Dry Type Power Transformer
| Model |
Rated Capacity (kVA) |
Voltage (kV) |
Vector Group |
No-load Loss (W) |
Load Loss (W) |
Weight (kg) |
Reference Dimensions (mm)L*W*H |
Enclosure Dimensions (mm)L*W*H |
Total Weight (kg) |
Impedance Voltage High Voltage(%) |
|
|
High Voltage (%)H.V. |
Low Voltage L.V. |
||||||||||
| SC10-30 | 30 |
6,6.3, 10, 10.5,11 |
0.4 |
Dyn11 Yyn0 |
190 | 710 | 250 | 680*450*640 | 1080*850*1020 | 400 | 4 |
| SC10-50 | 50 | 270 | 1000 | 300 | 700*450*640 | 1100*850*1040 | 450 | ||||
| SC10-80 | 80 | 370 | 1380 | 430 | 860*450*760 | 1260*850*1150 | 600 | ||||
| SC10-100 | 100 | 400 | 1570 | 630 | 920*780*900 | 1500*1300*2200 | 830 | ||||
| SC10-125 | 125 | 470 | 1850 | 700 | 920*780*950 | 1500*1300*2200 | 900 | ||||
| SC10-160 | 160 | 540 | 2130 | 800 | 920*780*1000 | 1500*1300*2200 | 1000 | ||||
| SC10-200 | 200 | 620 | 2530 | 950 | 1100*780*960 | 1800*1300*2200 | 1150 | ||||
| SC10-250 | 250 | 720 | 2760 | 1100 | 1100*650*1150 | 1800*1300*2200 | 1300 | ||||
| SC10-315 | 315 | 880 | 3470 | 1300 | 1100*940*1150 | 1800*1300*2200 | 1500 | ||||
| SC(B)10-400 | 400 | 980 | 3990 | 1500 | 1100*940*1200 | 1800*1300*2200 | 1800 | ||||
| SC(B)10-500 | 500 | 1160 | 4880 | 2000 | 1350*940*1200 | 2000*1500*2200 | 2250 | ||||
| SC(B)10-630 | 630 | 1340 | 5880 | 2050 | 1350*940*1300 | 2300*1500*2200 | 2300 | ||||
| SC(B)10-630 | 630 | 1300 | 5960 | 2050 | 1400*940*1130 | 2300*1500*2200 | 2300 | 6 | |||
| SC(B)10-800 | 800 | 1520 | 6960 | 2350 | 1450*940*1140 | 2300*1500*2200 | 2600 | ||||
| SC(B)10-1000 | 1000 | 1770 | 8130 | 2750 | 1500*940*1250 | 2300*1500*2200 | 3000 | ||||
| SC(B)10-1250 | 1250 | 2090 | 9690 | 3100 | 1500*940*1300 | 2300*1800*2200 | 3300 | ||||
| SC(B)10-1600 | 1600 | 2450 | 11730 | 3600 | 1550*940*1410 | 2300*1500*2200 | 4000 | ||||
| SC(B)10-2000 | 2000 | 3050 | 14450 | 4600 | 1650*1190*1780 | 2400*1600*2200 | 5000 | ||||
| SC(B)10-2500 | 2500 | 3600 | 17170 | 5500 | 1720*1190*1800 | 2500*1600*2200 | 6000 | ||||
Environmental Conditions
1.Ambient Temperature: No more than +40℃ and no less than -25℃. The monthly average temperature is no more than +30℃, and the yearly average temperature is no more than +20℃.
2.Altitude: No more than 1000m.
3.The power supply voltage's wave is similar to sine wave.
4.Three-phase power supply voltage is approximately symmetrical.
5.No obvious pollution in the installation environment.
6. Installation Site: Indoor.
Epoxy Resin Cast Dry Type Transformer Features
1.Low loss, low operating cost and obvious energy saving effect.
2.Fire retardant, fire proof, explosion-proof, non pollution .
3.Good moisture resistance and strong heat dissipation.
4.Low partial discharge, small noise and maintenance free.
5.High mechanical strength, strong resistance to short circuit and long service life.
Dry type transformer production process
Packaging&Shipping
