Enameled Round / Flat Aluminum Wire
Sep 23, 2025
Leave a message
enameled round / flat aluminum wire
Raw Materials: aluminum conductor and UEW(QA), PEW(QZ), EIW(QZXY), EI/AIW(QZY) Wire Enamel;
Thermal class: 180(Class H), 200(Class C), 220(Class C+), 240(Class HC),
Standard: IEC, NEMA, JIS, GB. Spool
materials: plastic, wooden.
Dimension: 0.16-9.2mm; 1awg - 34 awg
Application: used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers
Enameled Round Wire(Coper/Aluminum)
There are 3 grades of insulation thickness of enameled round wire :Grade 1,2 and 3.
Size Range
Copper Enameled Round Wire: 0.1-6.5mm
Please Contact Us : If the Specifications are not in the above range .
|
Name
|
Enameled Rond Wire( Copper/Aluminum)
|
|
Size Range
|
Copper (OD:0.1mm-6.5mm),2-54AWG,3-50SWGAluminum (OD:0.8mm-6.5mm) , Customize Available
|
|
Thermal Class (℃)
|
120(Class E);130(ClassB),155(Class F),180 (Class H);200 (Class C);220 (Class C+); 240(Class HC)
|
|
Insulation Material
|
E120℃ /PVF - Polyvinyl Acetal B130℃/F155/H180℃/UEW- Polyurethane
B130℃/F155℃/PEW- Polyester/Modified Polyester H180℃/EIW- Polyester-imide C200℃/ EI/AIW- Topcoat:Polyesterimide /Undecoat:Polyamideimide C220℃/AIW- Polyamideimide C240℃/PIW-Polyimide |
|
Insulation thickness
|
Grade 1,2 and 3
|
|
Certificate
|
UL,ISO,CE,SGS,REACH,RoHs
|
|
Standard
|
IEC,NEMA,GB,JIS
|
|
Package
|
PT-4,PT-10,PT-15,PT-25,PT-45,PT-60,PT-90,PT-200,Wooden Spool ,Customize available
|

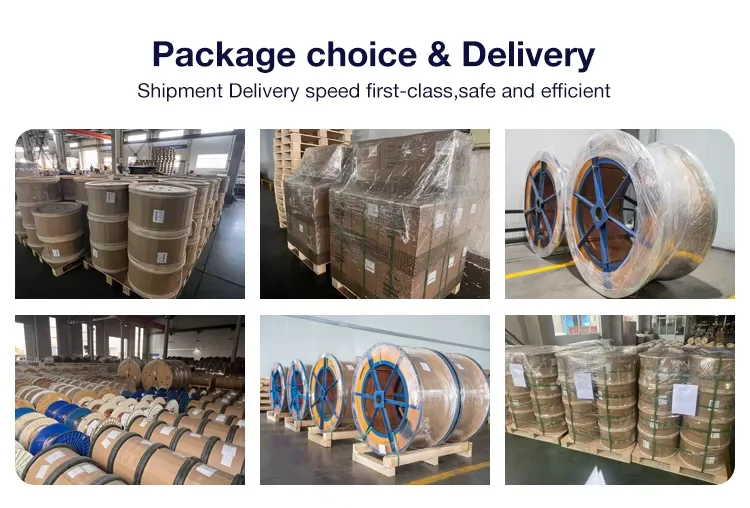

Packing & Delivery
Q:About GNEE 's Winding Wire Annual Producing Capacity:
A:Our Company's annual production is about 100000 tons.
Q: GNEE's Main Product And Service:
A: -Round /Rectangular Enamled Wires (Copper/Aluminum) -Papar/ Film Covered Winding Wires
-Composite wire and Continuously Transposed conductors(CTC)
-Transformer Producing Solutions (Producing Equipment/Testing Equipment/Design Service )
-All Kinds of Transformers OEM& ODM ( Oil type/Dry type /Power type/ Pad Mounted etc.)
Q:Temperature-resistant Grade Of GNEE Winding Wire:
A: 120/130/155/180/200/220/240 degrees
Q:Reason Of Choose GNEE Group:
A: GNEE now it's one of top winding wire and transformermanufacturer in China, which covers an area of 500,000 ㎡,annual output is more than $ 1.7 billion dollars, Can not only Providing All the Winding wires and Wrapes wires ,CTC, Insulation materials and other parts of transformers, But also can provide Transormer Design and Producing Machines ,Testing equipment ,and Also Providing Transformer OEM& ODM Service .
