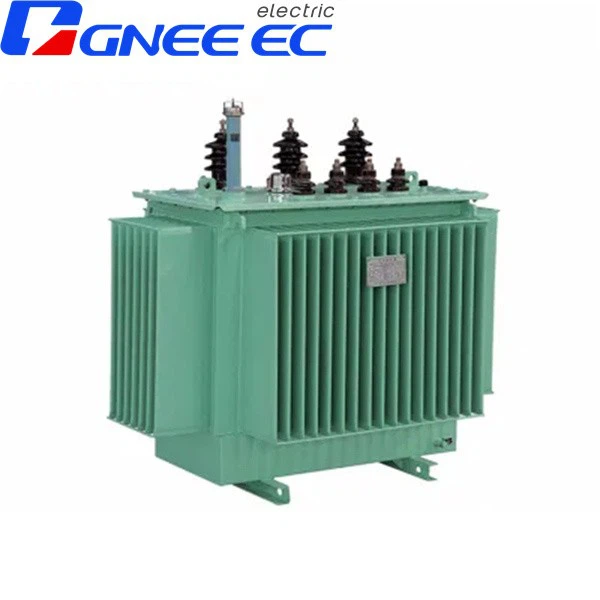

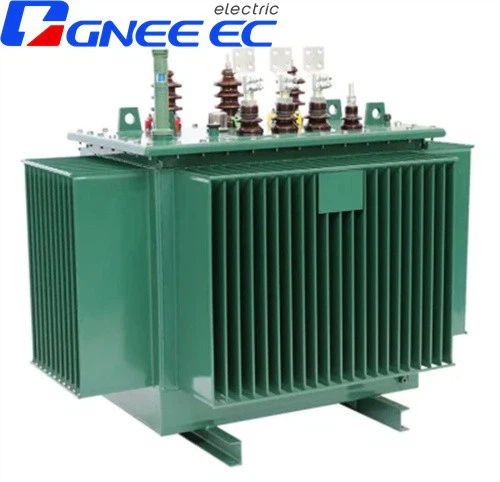

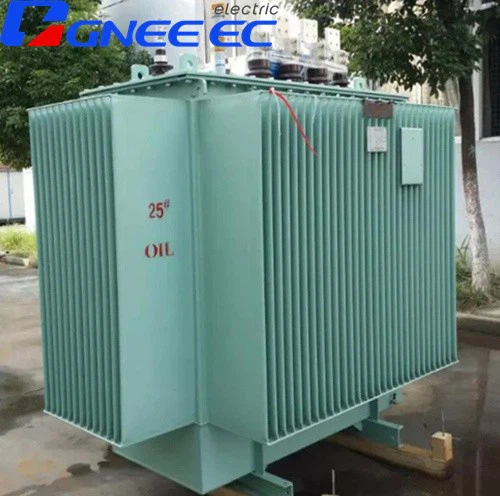

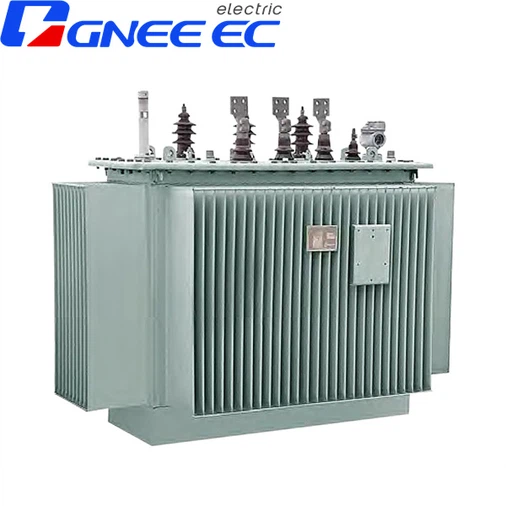

500KVA Three Phase ONAN Oil Type Transformer 10KV TO 400V 75KV
Have questions? GNEE sales representatives are available for live chat now
Send E-mail: sales@gneeelectric.com
Tel: +8615824687445
Henan GNEE Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of 500kva three phase onan oil type transformer 10kv to 400v 75kv in China. With abundant experience, we warmly welcome you to wholesale high quality 500kva three phase onan oil type transformer 10kv to 400v 75kv at low price from our factory. Contact us for more cheap products.
Product Introduction
The basic information of 500KVA three-phase ONAN oil-immersed transformer 10KV to 400V75KV is as follows:
Capacity: 500KVA
Voltage range: 10KV to 400V
Cooling method: ONAN (natural cooling)
Rated power: 75KW
Applicable environment and use conditions
Ambient temperature: Applicable to occasions where the ambient temperature is not higher than 40℃ and not lower than -25℃.
Humidity: Relative humidity does not exceed 90% (ambient temperature 25℃).
Altitude: Applicable to areas with an altitude of no more than 1000m.
500KVA three-phase ONAN oil-immersed transformer structural features
Cooling method: The cooling methods of oil-immersed transformers include natural cooling (ONAN), forced air cooling (AF) and forced water cooling (AW). Natural cooling is to dissipate heat through convection and conduction of oil, which is suitable for small-capacity transformers.
Insulation material: The transformer body is installed in a welded steel tank filled with insulating oil to ensure that the equipment can maintain a low temperature during operation. The thickness of the winding insulation layer will increase with the increase of voltage, providing better insulation protection.
| Model: | S11 |
| Rated capacity: | 500kVA |
| Rated voltage: | 10.5kV/0.38kV |
| Rated current: | 47.62A/962.28A |
| Rated frequency: | 50Hz |
| Cooling method: | ONAN |
| Connection group number: | Dyn11 |
| No-load loss: | 680W, +15% allowed |
| No-load current: | 1.0% |
| Load loss: | 5150W, +10% allowed |
| Short-circuit impedance: | 4% |
| Temperature rise (oil level/winding): | 55°C/65°C |
500KVA three-phase ONAN oil-immersed transformer application scenarios and maintenance recommendations
Application scenarios: Widely used in power distribution or substations, suitable for various occasions requiring high-efficiency performance, such as power transmission and distribution networks, renewable energy generation and small industries.
Maintenance:
Regularly check the quality of the oil: The quality of the oil is crucial to the life and safety of the transformer and requires regular inspection and maintenance.
Regularly check the transformer system: Ensure its normal and safe operation to prevent failures caused by improper maintenance.
Waste disposal: Waste generated by oil is easy to pollute the environment, so waste disposal is also very important
