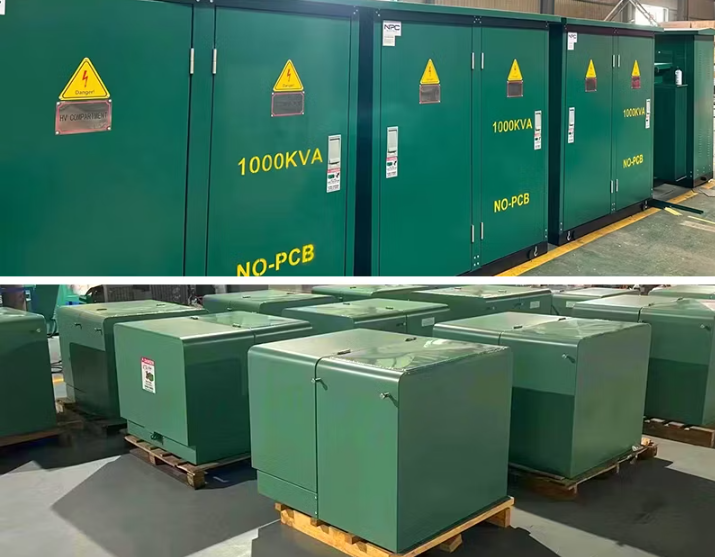

75kVA Pad Mounted Transformers
Capacity: 75kVA
Delivery Year: 2023
Country: Mexico
Key Advantages:
Space Efficiency: As a pad transformer, its footprint is 60% smaller than traditional models, ideal for compact commercial spaces in Mexico.
Weather Resistance: Designed as an outdoor pad mounted transformer, it meets IP54 protection standards, resisting corrosion from tropical rain seasons.
Swift Delivery: Modular manufacturing enabled installation in Mexico within 28 days from order placement, accelerating client operations.
Have questions? GNEE sales representatives are available for live chat now
Send E-mail: sales@gneeelectric.com
Tel: +8615824687445
Henan GNEE Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of 75kva pad mounted transformers in China. With abundant experience, we warmly welcome you to wholesale high quality 75kva pad mounted transformers at low price from our factory. Contact us for more cheap products.
Products parameter of 75kVA Pad Mounted Transformers
| Oil-filled Pad Mounted Transformer Technical Parameters | |||||||||||
| Rated Capacity kVA |
Voltage Combination | Vector group |
Off-load Loss (kW) |
On-load Loss(kW) (75ºC) |
Impendance (%) |
Weight | Dimensions(mm) | ||||
| High Voltage (kV) |
Tapping Range (%) |
Low Voltage (V) |
Total | Length | Width | Height | |||||
| 75 | 7.2 7.62 7.95 12.47 13.2 13.8 14.4 19.92 24.94 34.5 |
±5 ±2x2.5 |
120 240 240 347 480 600 |
Dyn11 | 180 | 1250 | 5.5 | 1420 | 1550 | 1170 | 1750 |
| 112.5 | 200 | 1500 | 1700 | 1550 | 1350 | 1750 | |||||
| 150 | 280 | 2200 | 1730 | 1550 | 1350 | 1750 | |||||
| 225 | 400 | 3050 | 1770 | 1550 | 1350 | 1750 | |||||
| 300 | 480 | 3650 | 2350 | 1650 | 1450 | 1750 | |||||
| 500 | 680 | 5100 | 2570 | 1650 | 1470 | 1750 | |||||
| 750 | 980 | 7500 | 3200 | 1850 | 1550 | 1850 | |||||
| 1000 | 1150 | 10300 | 6 | 3900 | 1850 | 1550 | 1950 | ||||
| 1500 | 1640 | 14500 | 4400 | 1850 | 1550 | 1950 | |||||
| 2000 | 2160 | 20645 | 4800 | 2050 | 1750 | 2050 | |||||
| 2500 | 2680 | 27786 | 5200 | 2050 | 1950 | 2150 | |||||
Product Features
Energy Efficiency:
Copper windings and low-loss silicon steel achieve 98.5% efficiency, exceeding Mexico's grid standards to reduce long-term operational costs.
Space Optimization:
Pad Mounted Transformers offer compact designs for wall or ground mounting, ideal for urban environments with limited space.
All-Weather Reliability:
The outdoor pad mounted transformer withstands extreme temperatures (-30°C to +50°C), ensuring stable performance in Mexico's highland climate.
Smart Safety:
Integrated temperature sensors and overload protection prevent faults in pad transformer systems under high loads or heat.
Technical Advantages of Pad Mounted Transformers
High-Efficiency Copper Winding: Multi-layer concentric winding reduces copper losses, keeping Pad Mounted Transformers within temperature limits even at full load.
Triple Protection Design: The outdoor pad mounted transformer features dual anti-corrosion coatings and sealed gaskets, blocking salt, dust, and UV exposure (IP55 rating).
Smart Monitoring: Standard wireless modules enable remote tracking of voltage, current, and temperature, allowing real-time cloud uploads for pad transformer performance.
Earthquake & Lightning Resistance: Shock-absorbing base mounts withstand 7.0-magnitude earthquakes, while 3-tier surge protectors ensure safety during Mexico's thunderstorms.
Modular Scalability: Pre-configured parallel interfaces allow expansion to 150kVA, adapting to growing commercial energy demands in Mexico.
Installation Guide
Step 1: Site Preparation
Location: Ensure a flat, dry surface with 1-meter clearance around the pad mounted transformer.
Cable Pre-installation: Use waterproof conduit for wiring based on the nameplate specifications.
Step 2: Equipment Setup
Secure the outdoor pad mounted transformer to the base, leveling it with ≤2% tilt error.
Connect terminals with a torque wrench to prevent loose connections causing overheating.
Grounding: Install a ≤4Ω earthing wire for lightning protection and safety.
Step 3: Testing & Commissioning
Pre-check: Confirm sealing integrity and unobstructed cooling vents.
No-load Test: Verify voltage and no-load current align with specifications.
Load Test: Gradually increase to rated capacity to ensure ≤55dB noise and stable operation.
Maintenance Guidelines
Monthly Checks:
Inspect terminal connections and seal integrity on Pad Mounted Transformers.
Quarterly Cleaning:
Use compressed air to clean cooling vents of the pad transformer to prevent dust buildup.
Annual Maintenance:
Conduct a 2000V dielectric test and 100MΩ insulation check for the outdoor pad mounted transformer.
Emergency Action:
Shut down immediately if abnormal noise or temperatures exceed 80°C, and contact technicians for fault diagnosis.
Why choose us?
GNEE Group:
Global Transformer Supply Chain Integration Expert (2008 - Present)
Founded in 2008, GNEE Group has undergone fifteen years of deep industry cultivation, successfully transforming from a regional trader to a global supply chain management expert. As a pioneer in the integration of the steel industry chain, the group has established a full-cycle value system that spans raw material procurement, production coordination, logistics optimization, and terminal services, setting an innovative operational benchmark in the global transformer distribution sector. In the era of Industry 4.0, GNEE Group is accelerating towards its goal of becoming a global integrator oftransformer industry value through digital restructuring and green supply chain construction.
SGS certification certificate
Production environment
Packing and Delivery
