Three Phase 2500kva Pad Mounted Transformer

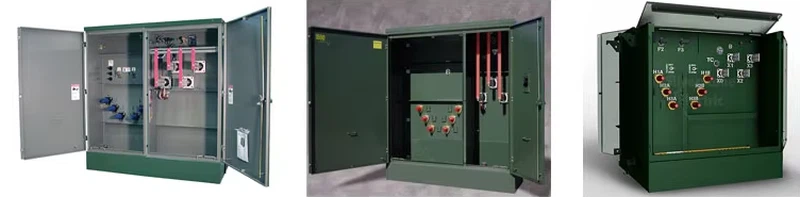

2500 kVA Pad Mounted Transformer can be designed to UL listed standards and feature fully enclosed tamper-resistant terminal compartments, available in pre-dead or pre-live configurations, for loop or radial feed applications, using mineral oil, or environmentally friendly Envirotemp™ FR3™.

Technical specification of Three Phase 2500 kva Pad Mounted Transformer

Pad Mounted Transformer Core

In order to reduce turbine loss and hysteresis loss, Daelim use 0.27-0.35MM thick cold-rolled silicon steel sheet (grade 70, 80, 90) with lower unit loss as the iron core of the transformer. And it adopts 45-degree multi-level full oblique stacking, which can not only reduce the no-load loss of the transformer for you, but also reduce the noise and improve the performance of the transformer.

2500 kVA three phase Pad Mounted Transformer Winding

The winding is the circuit part of the pad mounted transformer, which is generally made of copper or aluminum wire wrapped with insulating paper and then wound. Based on the customer's requirements for the technical parameters of the pad mounted transformer, Daelim use the copper wire or aluminum wire with the most suitable cross-sectional area to help you reduce costs while reducing the load loss of the transformer.
