110kva Three-phase Oil Immersed Power Transformer Supplier

Henan GNEE Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of 110kva three-phase oil immersed power transformer supplier in China. If you're going to buy customized 110kva three-phase oil immersed power transformer supplier made in China, welcome to get quotation from our factory. Quality products and reasonable price are available.

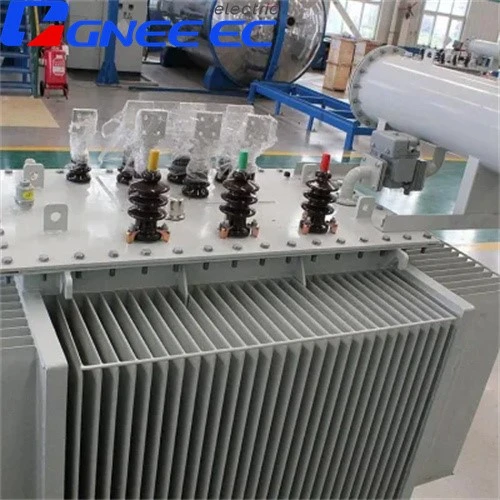

110kva three-phase oil-immersed power transformer structure
The core is made of high-quality cold-rolled grain-oriented silicon steel sheets, with a fully inclined non-porous structure. Low-magnetic steel plates are used as pull plates, and the upper and lower clamps are firmly connected to the core into a steel structure, thereby obtaining smaller no-load losses and lower noise.
According to the size of the transformer capacity, the winding adopts cylindrical, spiral, continuous and other structures. For windings of voltage levels of 110kV and above, tangled or inner screen structures are adopted, thereby effectively improving the impact voltage distribution. The conductor adopts transposed conductors or composite conductors to reduce the additional loss of the winding, and computer simulation is used to calculate the impact characteristics of the electric field and the winding, ensuring the excellent electrical characteristics and impact strength of the winding. Effective measures are adopted in the process to ensure its safe and reliable operation.
The transformer body compression structure adopts a full-circle insulating pressure plate. The set process adopts the overall assembly of the winding, thereby improving the reliability of the product.

GNEE have 16 years of experience in international power projects and have helped many customers around the world complete power projects. For example, Canada, Mexico, Panama, Ecuador, Guatemala, Honduras, Chile, El Salvador, Australia, New Zealand, Spain, Belgium, Algeria, South Africa, Ethiopia, Myanmar, Kazakhstan, etc. GNEE also have very good after-sales installation service team abroad, so if you have transformer needs, you can contact us.
