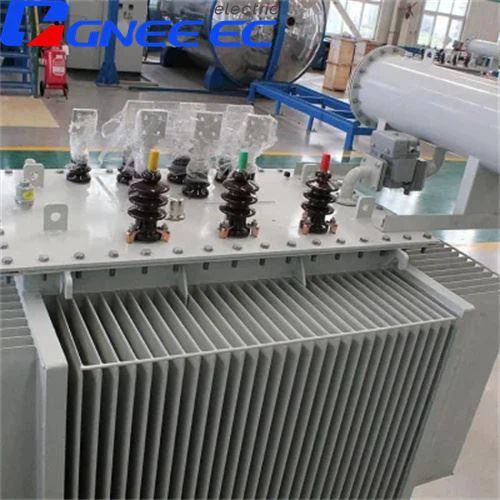

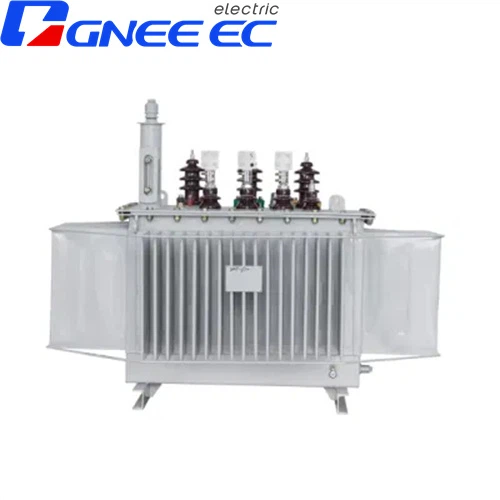

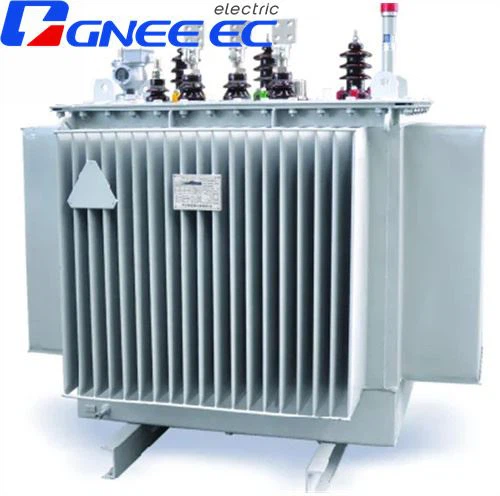

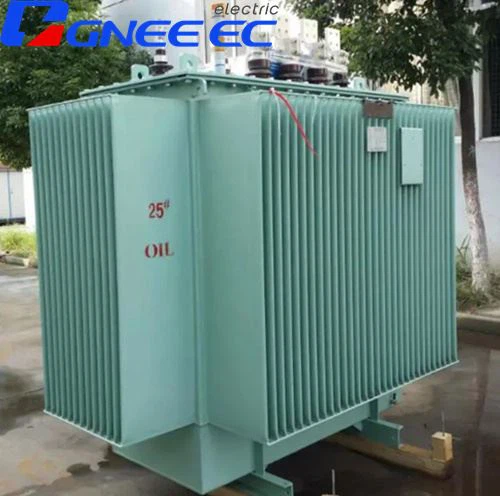

S11-M Power Distribution Transformer
Have questions? GNEE sales representatives are available for live chat now
Send E-mail: sales@gneeelectric.com
Tel: +8615824687445
Henan GNEE Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of s11-m power distribution transformer in China. With abundant experience, we warmly welcome you to wholesale high quality s11-m power distribution transformer at low price from our factory. Contact us for more cheap products.
Power distribution transformer is a new generation of low noise and low loss transformer developed in recent years. Its iron core has no joint, greatly reduces the no-load loss and no-load current, reduces the no-load current by 60%~80%, the high and low coils are continuously coiled on the core column, the winding is tight, the concentricity is good, and the product is enhanced more. Anti-theft performance. The noise decreased by more than 10 decibels. The temperature rise is low 16-20K. Because of the continuous winding of iron core (cross section is pure circle), the orientation loss of silicon steel sheet is fully utilized, and the no-load loss is reduced by 20%~30%.
Technical specification
|
MODEL |
RATED CAPACITY(KVA) |
CONNECTION SYMBOL |
VOLTAGE COMBINATION(KV) |
NO-LOAD LOSS(W) |
LOAD LOSS (W) |
NO-LOAD CURRENT(%) |
SHORT CIRCUIT IMPENDENCE(%) |
||
|
HV |
TR |
LV |
|||||||
|
S11-M-30 |
30 |
YYN0 OR DYN11 |
|
|
|
100 |
630/600 |
2.3 |
4 |
|
S11-M-50 |
50 |
|
|
|
130 |
910/870 |
2 |
4 |
|
|
S11-M-63 |
63 |
|
|
|
150 |
1090/1040 |
1.9 |
4 |
|
|
S11-M-80 |
80 |
|
|
|
180 |
1310/1250 |
1.9 |
4 |
|
|
S11-M-100 |
100 |
|
|
|
200 |
1580/1500 |
1.8 |
4 |
|
|
S11-M-125 |
125 |
|
|
|
240 |
1890/1800 |
1.7 |
4 |
|
|
S11-M-160 |
160 |
|
|
|
280 |
2310/2200 |
1.6 |
4 |
|
|
S11-M-200 |
200 |
6 |
|
|
340 |
2730/2600 |
1.5 |
4 |
|
|
S11-M-250 |
250 |
|
|
|
400 |
3200/3050 |
1.4 |
4 |
|
|
S11-M-315 |
315 |
6.6 |
±5% |
0.4 |
480 |
3830/3650 |
1.4 |
4 |
|
|
S11-M-400 |
400 |
|
or |
0.415 |
570 |
4520/4300 |
1.3 |
4 |
|
|
S11-M-500 |
500 |
10 |
±2*2.5% |
0.6 |
680 |
5410/5100 |
1.2 |
4 |
|
|
S11-M-630 |
630 |
|
|
|
810 |
6200 |
1.1 |
4.5 |
|
|
S11-M-800 |
800 |
12 |
|
|
980 |
7500 |
1 |
4.5 |
|
|
S11-M-1000 |
1000 |
|
|
|
1150 |
10300 |
1 |
4.5 |
|
|
S11-M-1250 |
1250 |
|
|
|
1360 |
12800 |
0.9 |
4.5 |
|
Features of Power transformer
The product surface is painted, primed and topcoat after degreasing, rust removing and phosphating. It can meet the special requirements of metallurgy, petrochemical system and wet dirty area.
A fully sealed transformer oil tank is used. The pressure release valve, signal thermometer and gas relay are installed according to the standard, so as to ensure the safe operation of the transformer. This series of products has beautiful appearance, small size, and can reduce the installation area. It is an ideal free maintenance quality product.
Packaging&Shipping
