Prefabricated compact substations are suitable for residential quarters, urban public utilities and construction power supplies etc., users can select compact transformers according to different conditions of use and load levels.
Send Inquiry
Chat Now

Have questions? GNEE sales representatives are available for live chat now

Send E-mail: sales@gneeelectric.com

Tel: +8615824687445

Henan GNEE Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of 33kv prefabricated compact substation in China. With abundant experience, we warmly welcome you to wholesale high quality 33kv prefabricated compact substation at low price from our factory. Contact us for more cheap products.



33kV prefabricated compact substation designed for 33kV secondary distribution system from high voltage to low voltage. The main function of the compact substation is transforming high voltage from 33kV to be low voltage(415V or 380V), it depends on the electrical transformer inside of the substations.

33kV compact substation structure designed as the compact size which including high voltage switchgear, low voltage switchgear, and the electrical transformer. This specification determined the capacity of the compact substation not too big size, the electrical transformer capacity could not exceed 1600kva.

Name Unit HV side Transformer LV side
Rated voltage kV 6-33kV 6-33kV 0.4
Rated current A 630 3/75-150/3750 Less than 4000
Frequency Hz 50
Rated Capacity kVA 50-2500
Pfr withstand kV 42/50/70/95 2.5
BIL kV 75/125/170/185
Crust Protection Grade   IP23 Oil type 55; dry type 65 IP23
Noisy Grade dB
Appearance Dimensions mm According to primacy wiring circuit schema

33kV prefabricated compact substation designed in different types with advantages of compact size and used widely in high rise building, airport, railway etc.

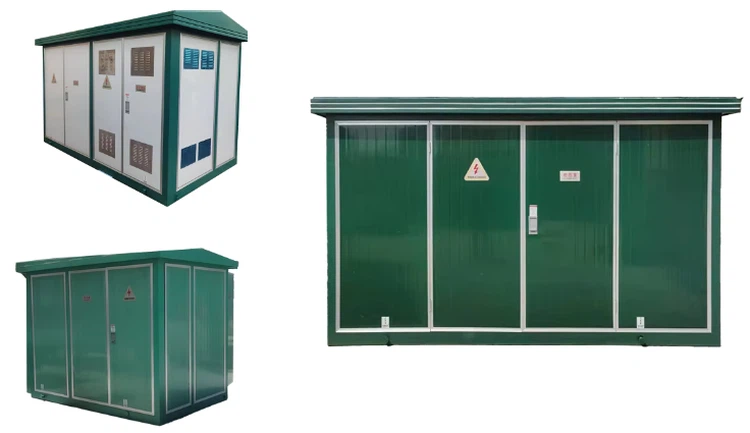

Used substation transformers

The advantages of 33kv compact substation:

1. Advanced technology and safety.

2. High degree of automation.

3. Factory prefabrication

4, flexible combination mode

5, investment is effective.

6. Small footprint.

7, beautiful appearance

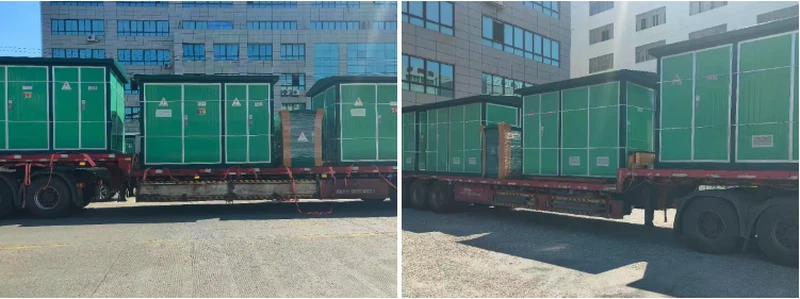

Packaging&Shipping

 Substation voltage transformer
