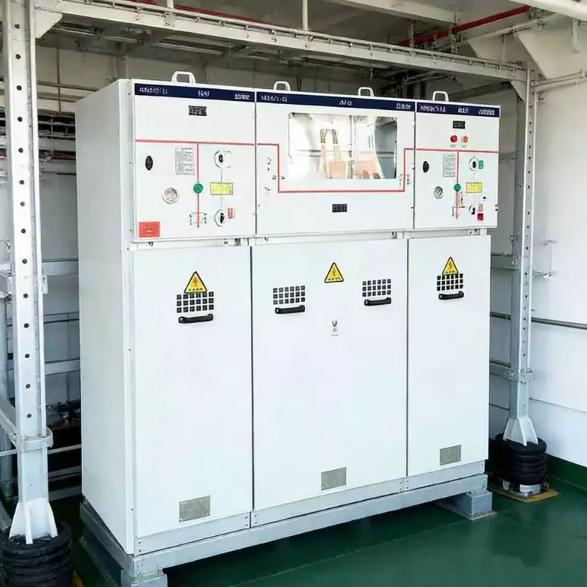

HV Switchgear Cabinet

What Is an HV Switchgear Cabinet?

An HV switchgear cabinet is the metal enclosure that houses the switching, protection and control equipment of a high voltage distribution system. It is the physical cabinet that contains the vacuum circuit breaker, current/voltage transformers, busbars, earthing switch and protection relays, forming a safe, insulated and earthed housing for equipment operating from 12 kV up to 40.5 kV.

We manufactures HV switchgear cabinets with precision sheet-metal workmanship and robust corrosion protection, suitable for power plants, substations, industrial facilities and renewable energy installations worldwide.

Cabinet Material & Workmanship

• Premium steel panels - cold-rolled steel plate (≥ 2.0 mm shell) or imported zinc-coated (alu-zinc) plate for excellent corrosion resistance without extra surface treatment.
• CNC precision processing - panels are cut and formed on CNC and laser equipment, then multi-folded for high rigidity, light weight and precise fit.
• High-strength assembly - riveted nuts and high-strength bolts join panels securely, ensuring structural integrity and clean, rattle-free assembly.
• Anti-corrosion finish - electrostatic powder coating or anti-corrosion coating protects against rust, humidity and harsh environments.

Cabinet Structure

The cabinet is divided into individually enclosed compartments - busbar compartment, circuit breaker compartment, cable compartment and relay/instrument compartment - each earthed and fitted with its own pressure relief channel for safe internal-arc venting.

Product Range

Custom configurations, single-line-diagram-based design and OEM/ODM are available for all series.

Technical Specifications

Typical dimensions: 800–1000 mm (W) × 1300–1660 mm (D) × 2200–2300 mm (H); larger 40.5 kV cabinets up to 1400 mm × 2800–3300 mm × 2600 mm. Custom sizes available.

Applications

• Power plants & substations - incoming/outgoing feeders and transformer protection.
• Industrial facilities - motor control and distribution in factories, steel mills and mining.
• Renewable energy - solar/wind power collection and grid connection.
• Urban distribution - compact indoor substations and commercial buildings.

Why Choose us?

• In-house sheet-metal fabrication - CNC cutting, bending and coating controlled end-to-end for consistent quality.
• Manufacturer-direct pricing - no middlemen, OEM/ODM welcome.
• Export-ready - compliant packing and documented testing for overseas delivery.

FAQ

What is the difference between an HV switchgear cabinet and switchgear?

The cabinet is the physical metal enclosure; "switchgear" refers to the complete assembly including the breakers, busbars and protection equipment housed inside it.

What materials are used for the cabinet?

Cold-rolled steel plate (≥ 2.0 mm) or imported zinc-coated plate, with electrostatic powder or anti-corrosion coating for harsh environments.

Can the cabinet size be customized?

Yes. Width, depth, height, panel arrangement and protection degree can be customized to your project requirements.

What protection level does the cabinet provide?

IP4X enclosure protection as standard; higher grades (e.g. IP54) available on request for dusty or outdoor conditions.
