Withdrawable Low Voltage Switchgear

What Is Withdrawable Low Voltage Switchgear?

Withdrawable low voltage switchgear is a type of switchgear assembly where functional units - such as circuit breakers, motor starters, contactors, and metering devices - are mounted on removable drawer-type modules that slide in and out on rails.

Unlike fixed switchgear where components are permanently bolted, withdrawable switchgear allows each functional unit to be inserted, tested, or withdrawn without de-energizing the entire panel.

This modular architecture is governed by IEC 61439-1/2 standards and is the preferred solution for motor control centers (MCCs) and power control centers (PCCs) where uptime, safety, and rapid maintenance are mission-critical. Each drawer module has three defined positions - Connected, Test, and Isolated - enforced by mechanical interlocks to prevent misoperation.

The withdrawable design delivers operational advantages that fixed-type switchgear cannot match - particularly for facilities where power continuity is non-negotiable.

1. Hot-Swap Maintenance Without Shutdown

Withdraw a faulty drawer and insert a spare in under three minutes. The rest of the panel stays live. No building shutdown, no rewiring, no weekend emergency callouts. This plug-and-play nature significantly reduces Mean Time to Repair (MTTR).

2. Fully Compartmentalized & Segregated Design

Drawer zone, busbar zone, and cable zone are physically separated. An arc fault in one compartment is contained within that compartment. Internal separation up to Form 4b per IEC 61439, ensuring operator safety even during live work on adjacent units.

3. Modular Architecture for Scalability

Standardized drawer sizes allow mixing ACB, MCCB, VSD, soft starter, and metering units in the same panel. Add drawers later if the busbar is sized with headroom-ideal for phased plant expansion without replacing the entire switchboard.

4. Mechanical & Electrical Interlocks

Three-position locking (Connected / Test / Isolated) prevents operators from accessing live parts. Door interlocks ensure the compartment door cannot be opened when the breaker is in the connected position. Shutter system covers busbar contacts when the drawer is withdrawn.

5. IEC 61439 Type-Tested Certification

Every panel passes type tests at accredited laboratories - short-circuit withstand, temperature rise, dielectric strength, and internal arc verification. Type-test certificates ship with every order, not just a factory declaration of conformity.

6. Optional Preventive Safety Systems

Arc flash protection with optical and current sensors that trip breakers in milliseconds. Temperature monitoring on busbars and connections for predictive maintenance. These systems detect hazards before they cause failures, fires, or injuries.

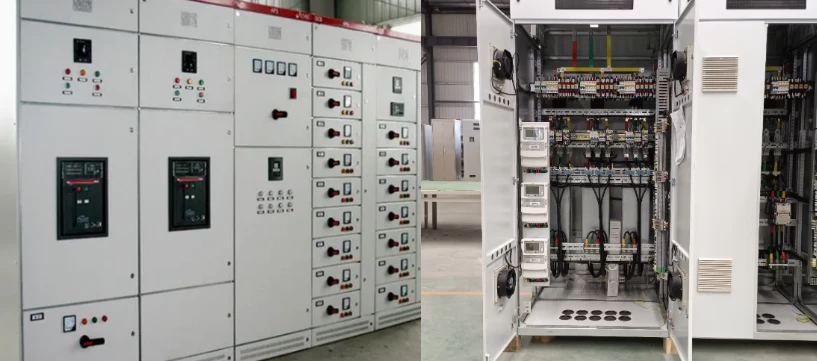

The choice between fixed and withdrawable switchgear depends on your maintenance strategy, budget structure, and uptime requirements. Here is a side-by-side comparison to help procurement managers and engineering decision-makers evaluate the trade-offs.

The following parameters represent standard MNS/GCS withdrawable switchgear configurations. Custom voltage ratings from 220V to 1000V, non-standard busbar cross-sections, and specialized drawer sizes for legacy equipment are available on request.

Withdrawable switchgear is specified wherever power continuity is critical, maintenance windows are short, and safety cannot be compromised. The modular drawer design makes it the standard choice for facilities that cannot afford unplanned power outages.

🏢 Data Centers & Hospitals

24/7 critical power with zero downtime tolerance. Hot-swap drawer replacement during operation ensures continuous power to servers and life-support equipment. High-density power distribution with optimized thermal management for compact electrical rooms.

⛽ Oil, Gas & Petrochemical

Hazardous environments requiring arc-resistant design and enhanced safety interlocks. Optional IP54 enclosures for corrosive atmospheres. Seismic qualification per IEEE-693 for offshore platforms and refinery installations.

🏭Heavy Industry & Manufacturing

Motor control centers (MCC) for steel mills, cement plants, and mining operations. Drawer-mounted motor starters from 37kW to 250kW. Withstands harsh vibration, dust, and high ambient temperatures with reinforced structures.

💧Water & Wastewater Treatment

Continuous-process facilities where pump motors and blowers must run without interruption. Withdrawable units allow motor starter replacement during operation. Integrated VFD and soft starter options for energy-efficient pump control.

The drawer-type functional unit is the heart of withdrawable low voltage switchgear. Understanding its mechanics helps procurement teams and facility managers appreciate why this design commands a premium over fixed panels.

An MNS or GCS withdrawable switchgear cabinet has three segregated zones: drawer compartments across the front, busbar chamber behind them, and cable compartment at the rear or bottom. Each drawer slides in and out on precision rails. Guide pins align the self-cleaning contacts with the vertical busbar. The sliding contact structure prevents contact wear or welding under short-circuit conditions, ensuring continuity of proper contact even during fault events.

The Three-Position Mechanism

• Connected (IN): Drawer fully inserted. Main contacts and auxiliary contacts engaged. Power flows through the unit. Door remains closed to maintain IP rating.
• Test Position: Drawer partially withdrawn. Main power contacts isolated. Auxiliary contacts remain live for testing control circuits, protection relays, and trip units.
• Isolated (OUT): Drawer fully withdrawn. All contacts separated. Shutter closes over busbar contacts. Safe to remove for replacement or maintenance.

Double-Finger Contact Design

The vertical distribution busbars are surrounded by double-layer insulation. The double-finger contact design provides redundancy - if one contact finger fails, the other maintains the connection. This design eliminates the need for periodic maintenance on the distribution busbar.

When replacement is necessary, the double-finger contact holders can be swapped in a fast and simple process, minimizing outage time and delivering significant economic benefits over the panel's 25+ year service life.

We build withdrawable switchgear for EPC contractors, electrical wholesalers, and industrial end-users across 50+ countries. Every panel ships from our factory with type-test certificates - not factory declarations.

• Hot-Swap Without Shutdown

Pull out one drawer. Replace it. The rest of the panel stays live. Three minutes from start to finish. No building shutdown. No rewiring.

• IEC 61439 Type-Tested

Short-circuit withstand, temperature rise, dielectric strength - all verified at accredited laboratories. Certificates ship with every panel. No exceptions.

• Full OEM & ODM Support

Custom voltage from 220V to 1000V. Your branding, your busbar layout, your color scheme. Multi-language documentation. Region-specific compliance (CE, SASO, SNI, GOST).

• Copper Busbar

Pure copper with silver plating. Insulated supports rated for 25+ years of continuous full load. Corrosion-resistant for humid and coastal environments.
