2UEW 180 0.03mm Size Enamel Round Copper Wire
Have questions? GNEE sales representatives are available for live chat now
Send E-mail: sales@gneeelectric.com
Tel: +8615824687445
2UEW 180 0.03mm Size Enamel Round Copper Wire Specifications
Conductor:Copper
Insulation layer:heavy
Thermal Class:180℃
Insulation materials:Polyester
Shape:Round
Size:0.03mm, ultra-fine
2UEW 180 0.03mm size enamel Round copper wire is ultra-fine enameled copper wire often uses in limited space applications. And it also uses in a high level of precision because of extremely small diameter and a thin enamel. This wire commonly uses in applications where compact size and precise winding are essential.
2UEW 180 0.03mm Size Enamel Round Copper Wire data:
| Name | Enameled Round Copper Wire |
| Conductor | Copper |
| Dimension | 0.03mm |
| Thermal Class(℃) | 180 (Class H) |
| Insulation Thickness | G2 |
| Certification | UL |
| Standard | IEC, NEMA, GB, JIS |
| Packing | 5kg per roll, plastic rool |
| Application | Speaker coils, voice coils, etc. |
Common uses and characteristics of ultra-fine enameled copper wire
Common uses and characteristics of ultra-fine enameled copper wire:
- Electronics Miniaturization: The ultra-fine nature of this wire makes it suitable for applications where miniaturization is crucial. It commonly uses in small electronic devices where space is at a premium, such as smartphones, tablets, and wearable technology.
- Coil Windings in Micro Motors: Due to its small size and excellent electrical properties, ultra-fine copper wire uses in the micro motors. These motors use in medical devices, robotics, and precision instruments.
- Microelectronics: suitable for the intricating and compacting coil windings of microelectronic components and integrated circuits..
- Sensors and Transducers: where precision in winding and compact design are essential for the sensor's sensitivity and performance.
- Medical Devices: such as hearing aids, pacemakers, and other implantable devices, where space constraints and precision are critical.
- Communication Devices: Uses in coil windings of communication devices.
- Research Instruments: Precision instruments and scientific equipment often require ultra-fine wiring for specialized applications. This type of wire is suitable for creating intricate coil windings in these instruments.
- Aerospace Applications: The lightweight and compact nature of ultra-fine enameled copper wire makes it suitable for certain aerospace applications where weight reduction and space efficiency are critical considerations.
- High-Frequency Devices: Due to its excellent electrical properties, uses in high-frequency signals are involved, such as RF (radio frequency) circuits and antennas..
- Automotive Electronics: In modern vehicles, particularly in coil windings and connections of electronic systems and sensors.
Main Application Of Enameled Copper Wire
1-Sealed motor working under high temperature
2-Transformer
3-Modern instrument
4-Generator
5-Welding machine
|
Magnet Wire Enamelled Copper Wire
|
|||
|
Enameled copper wire
|
Type
|
Q(ZY/XY)-1/200
|
|
|
Diameter
|
0.27mm
|
||
|
Standard
|
IEC60317
|
||
|
Test Item
|
Unit
|
Technical Requirement
|
Test Result
|
|
Elongation
|
|
>=22 %
|
30%
|
|
spring-back angle
|
|
<=47
|
43
|
|
Flexibility and adhesion
|
winding test
|
1D
|
1
|
|
Jerk test
|
No Crack, and No losing adhesion
|
ok
|
|
|
Heat shock
|
|
0.630mm
|
ok
|
|
Cut-through resistance
|
|
cut-through resistance
|
2
|
|
Breakdown Voltage
|
KV
|
>=2.2 KV
|
7.6 7.0 6.8 6.2 7.7
|
|
Scratch Resisting(Average)
|
N
|
3.25 N
|
7.98
|
|
Scratch resisting(Min)
|
N
|
2.75 N
|
7.12
|
Main Features
1) Enameled Copper Wire is one kind of magnet wire which is consisted of bare round copper which accord with EN 13601Cu-ETP standard as the conductor and multi-layer insulation layers. The multi-layer insulation layers can be polyester, modified polyester or polyester-imide and so on.
2) Our Enameled Round Copper Wire is one kind of enameled wire which has high heat resistance. Its temperature class can be from 130℃ to 220℃.
3) Our Enameled Round Copper Wire uses TU2 oxygen-free copper as raw material.TU2 oxygen-free copper has good conductivity and heat conductivity.

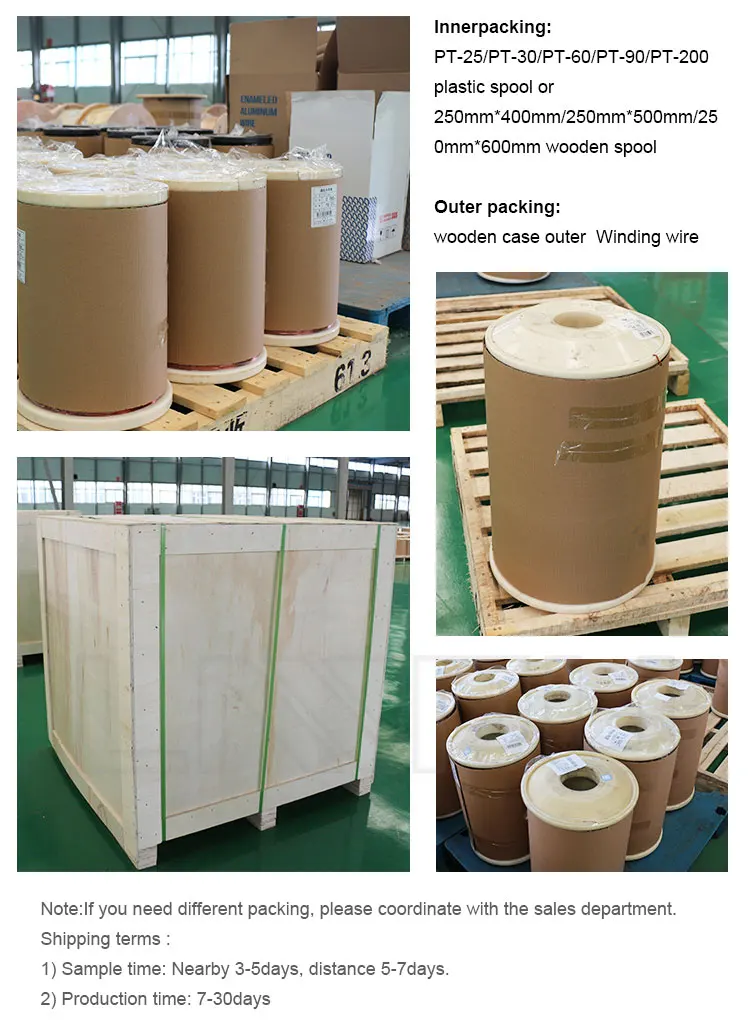

Packing & Delivery
