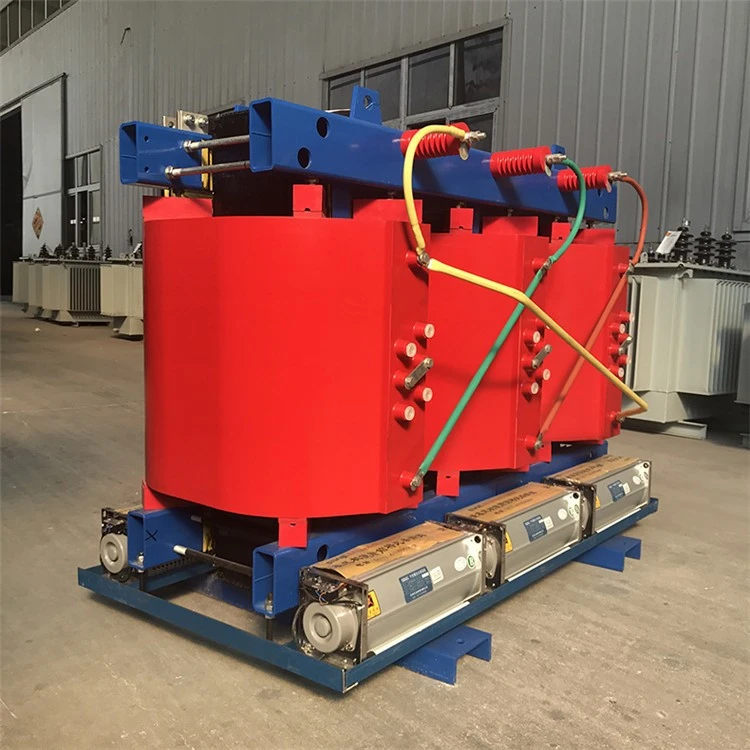

10kV-35kV Dry-type Transformer

Henan GNEE Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of 10kv-35kv dry-type transformer in China. If you're going to buy customized 10kv-35kv dry-type transformer made in China, welcome to get quotation from our factory. Quality products and reasonable price are available.

Product Introduction

The scientific and reasonable design and pouring process of 10kv-35kv dry-type transformer result in smaller partial discharge, low noise, and strong heat dissipation capacity of the product. It can operate for a long time under 140% rated load under forced air cooling conditions, and is equipped with an intelligent temperature controller with fault alarm, overtemperature alarm, overtemperature trip, and black gate functions. The dry transformer is connected to the computer through RS485 serial interface for centralized monitoring and control.

Glass fiber reinforced thin insulation resin cast SC (B) 10 and SC (B) 13 dry-type transformers can be used as replacement products for oil immersed distribution transformers. Specially suitable for power plants, high-rise buildings, commercial centers, theaters, hospitals, laboratories, museums, oil drilling platforms, ships, ports, stations, airports, petrochemical plants, underground railways, tunnels, mines, and other important places.

Technical Specification

Product features:

1. Outstanding disaster prevention performance. It has the characteristics of being oil-free, self extinguishing and fire-resistant, flame retardant, non polluting to the environment, and not causing explosions.

2. Superior environmental resistance performance. Epoxy resin is a chemically extremely stable material with excellent moisture resistance, dust resistance, crack resistance, and temperature change resistance. Transformers can operate reliably even in harsh environments such as atmospheric pollution, and can even operate normally at 100% humidity. After shutdown, they can be put back into operation without drying or preheating.

3. Strong resistance to sudden short circuits and high mechanical strength. Due to the material properties of epoxy resin and the fact that the coil is cast as a whole, it becomes a rigid body with high mechanical strength after heating and curing.

4. It has the characteristics of low noise and low partial discharge. Noise can usually be controlled below 55dB, and partial discharge can be controlled below 10PC.

5. Easy installation and debugging, and maintenance free. With a comprehensive temperature control and display system, as well as the epoxy resin's ability to withstand harsh environments, the daily operation and maintenance workload is minimal or even maintenance free, which can greatly reduce employee costs and lower operating expenses.

Due to the above characteristics of 10kv-35kv dry-type transformers, they are widely used in power transmission and transformation systems, such as hotels, restaurants, airports, high-rise buildings, commercial centers, residential areas and other important places, as well as in harsh environments such as subways, smelting power plants, ships, and offshore drilling platforms.
