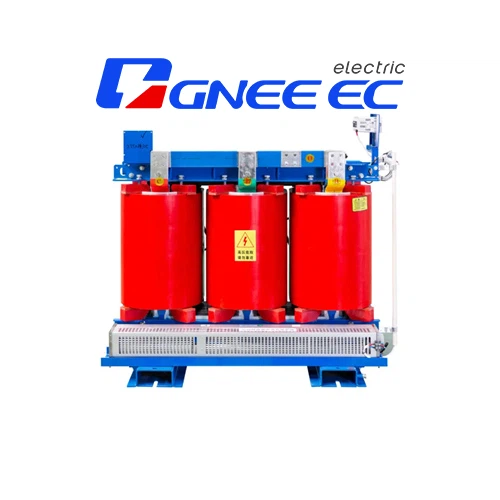

Dry Type Distribution Transformers
Have questions? GNEE sales representatives are available for live chat now
Send E-mail: sales@gneeelectric.com
Tel: +8615824687445
Henan GNEE Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of dry type distribution transformers in China. With abundant experience, we warmly welcome you to wholesale high quality dry type distribution transformers at low price from our factory. Contact us for more cheap products.
Dry type distribution transformer introduction
Dry-type distribution transformers, composed of iron cores and coils, offer advantages such as strong short-circuit resistance, low maintenance costs, low noise, and high efficiency.
Unlike oil-filled transformers, dry-type transformers do not suffer from issues related to oil leakage. They are typically used in medium voltage distribution systems, such as 11 kV/33 kV to 0.415 kV, and are widely employed in power stations, hospitals, and factories.
The reliability of the winding material is crucial for the safe operation and service life of the dry-type transformer, making winding temperature monitoring essential to ensure the transformer operates normally.
|

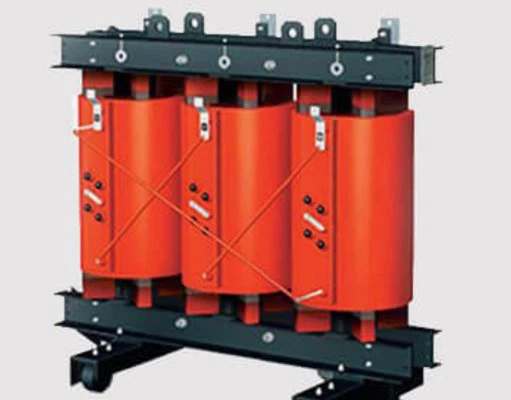

Dry-type transformer Type |
Cast resin |
|
Manufacturing Standards |
IEC, ANSI, GB |
|
Rated Capacity |
Up to 25MVA |
|
Rated Voltage |
Up to 36KV |
|
Phases |
Single or Three Phase |
|
Tapping |
With tapping links or on-load tap changer |
|
Frequency |
50Hz or 60Hz |
|
Vector groups |
Dy, Yy, Yd as standard. Other on request |
|
Class insulation |
According to IEC 60085, Class F or Class H |
|
Type of cooling |
AN (natural air), AF, AFWF on request |
|
IP Rate |
IP00 to IP54 |
|
Environment Class |
E2 |
|
Environment Class |
C2 |
|
Fireproof Class |
F1 |

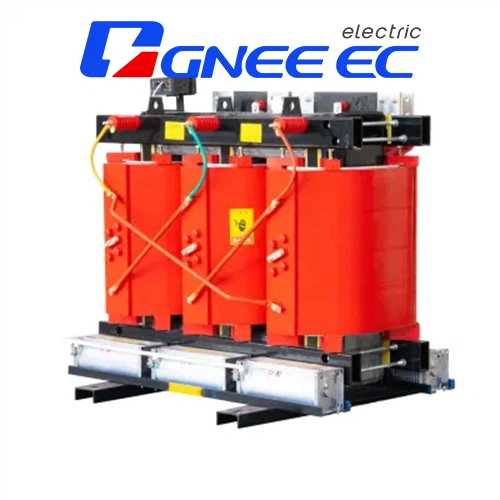

Features of dry transformer
- It is safe, fireproof, and pollution-free, and can be operated directly in the load center.
- It features high mechanical strength, strong short-circuit resistance, minimal partial discharge, good thermal stability, high reliability, and a long service life.
- It has low loss, low noise, and a significant energy-saving effect, and requires no maintenance.
- It offers good heat dissipation performance.
- It has excellent moisture resistance.
- Dry-type transformers can be equipped with a complete temperature detection and protection system. Using an intelligent signal temperature control system, the transformer can automatically detect and display the operating temperatures of the three-phase windings, start and stop the fan automatically, and provide functions such as alarms and trips. An RS485 communication interface can be installed for wireless detection and intelligent management.
- It is compact, lightweight, has a small footprint, and low installation cost.
Single Phase Dry Type Transformer Advantage
- Low loss, low noise, minimal partial discharge, and high reliability.
- Strong short-circuit resistance and high lightning impulse withstand capability.
- The HV coil is vacuum-cast with epoxy resin under pressure, which improves the quality of the casting.
- Simulation analysis is used for the core model to avoid resonance and reduce noise.
- Simulation calculations and analysis of lightning impulse waves are applied to HV coils, enhancing their lightning impulse resistance.
Dry type distribution transformer application

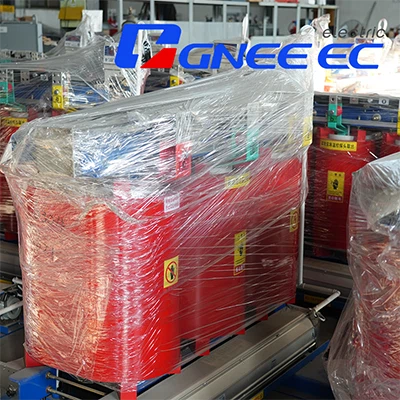

Dry type distribution style transformers factory
Dry type transformers Product Processing
Customer Visit
GNEE teams
Why Choose gNEE dry type distribution transformer?
GNEE have 16 years of experience in international power projects and have helped many customers around the world complete power projects. For example, Canada, Mexico, Panama, Ecuador, Guatemala, Honduras, Chile, El Salvador, Australia, New Zealand, Spain, Belgium, Algeria, South Africa, Ethiopia, Myanmar, Kazakhstan, etc. GNEE also have very good after-sales installation service team abroad, so if you have transformer needs, you can contact us.
