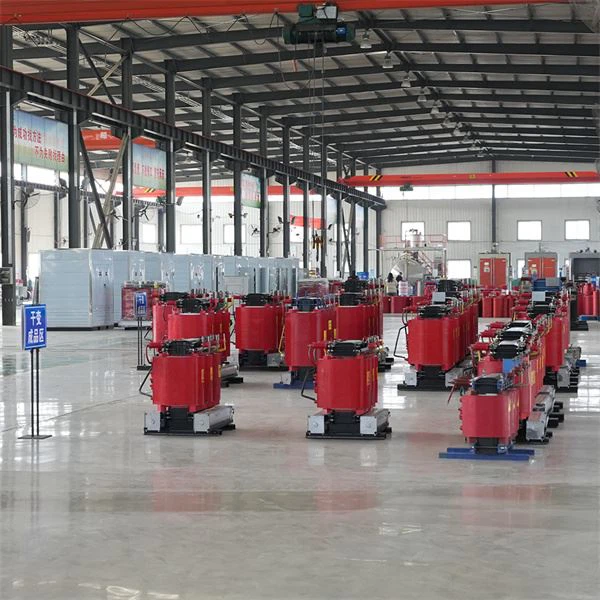

20kV three-phase epoxy-resin dry-type transformer
Primary Voltage Ratings: 20kv
Secondary Voltage Ratings: 0.4kV
Power Rating: 400kVA
Cooling Method: Natural air circulation
Have questions? GNEE sales representatives are available for live chat now
Send E-mail: sales@gneeelectric.com
Tel: +8615824687445
introduction of 20kV three-phase epoxy-resin dry-type transformer
GNEE TRANSFORMER supplies 20kV cast resin dry transformer.
It features maintenance-free epoxy resin insulation, low-loss silicon steel core, and copper windings. It operates with natural air cooling, supports ±2x2.5% voltage adjustment.
This high-performance, three-phase dry transformer operates without protective casing and features a durable, maintenance-free construction, ideal for supplying 0.4 kV AC services in a 50 Hz environment.
three-phase epoxy-resin dry-type transformer Applications
- Public Facilities
Provides reliable power to hospitals, schools, and municipal services.
- Industrial Automation
Supplies precise, stable power for automated production lines and robotics.
- Data Centers
Delivers noise-free, consistent power critical for IT infrastructure and server rooms.
- Commercial Buildings
Ensures dependable energy distribution for offices, shopping centers, and retail complexes.
three-phase epoxy-resin dry-type transformer Specifications
|
Voltages |
Primary 20kV / Secondary 0.4 kV |
|
Power Rating |
400KVA |
|
Phase Configuration |
Three-phase |
| Standards |
EN 60076 CEI 60076 IEC 60185 DIN-VDE 0414-1 |
|
Cooling Mechanism |
Utilizes natural air convection to dissipate heat, eliminating the need for external cooling systems and ensuring efficient thermal management. |
|
Insulation System |
Employs a blend of epoxy resin and quartz powder, providing superior moisture resistance and fire safety, while ensuring maintenance-free operation. |
|
Core Construction |
Constructed from low-loss, cold-rolled silicon steel with high magnetic permeability, minimizing energy losses and enhancing overall efficiency. |
|
Winding Design |
Features copper windings with epoxy resin insulation, offering high mechanical strength to withstand short-circuit forces and ensuring long-term durability. |
|
Insulation Class |
The transformer is equipped with Class F insulation, capable of withstanding continuous operating temperatures up to 155°C. |
|
Maximum Winding Temperature Rise |
Designed for efficiency, the transformer maintains a maximum average winding temperature rise of 105°C above the ambient temperature during full-load operation. |
Environmental Conditions:
- Maximum Ambient Temperature: +40°C
- Minimum Ambient Temperature: -30°C
- Altitude: <1200 meters
- Humidity: <100% at 20°C
- Seismicity: 760±15 mmHg
