CSD Marine Transformer
Have questions? GNEE sales representatives are available for live chat now
Send E-mail: sales@gneeelectric.com
Tel: +8615824687445
Henan GNEE Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of csd marine transformer in China. If you're going to buy customized csd marine transformer made in China, welcome to get quotation from our factory. Quality products and reasonable price are available.

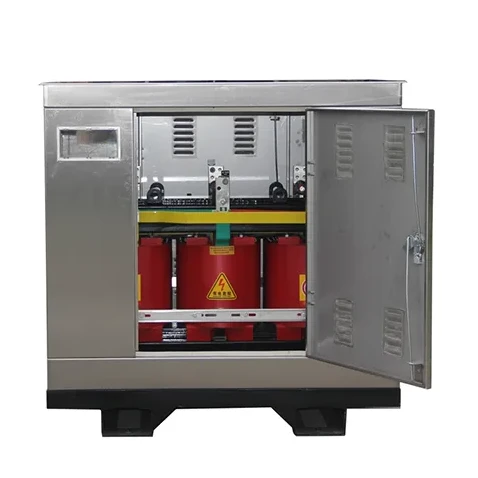

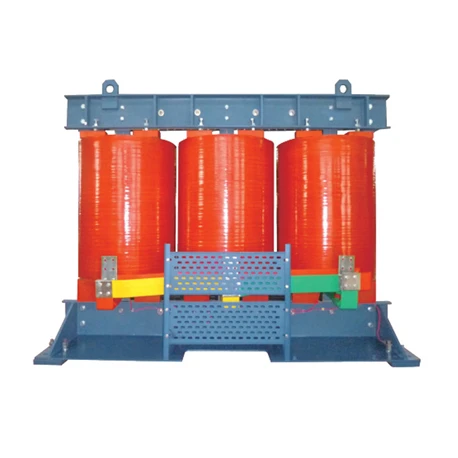

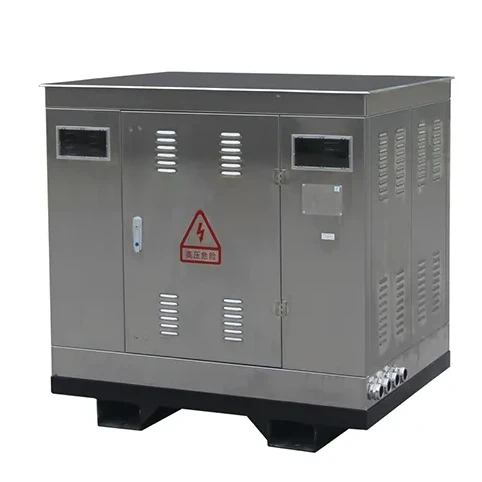

introduction of CSD marine transformer
GNEE TRANSFORMER supplies CSD marine transformer.
The CSD series marine transformer is specifically engineered for installation on ships, marine platforms, and various locations, serving multiple functions such as lighting, safety isolation, secondary power control, and equipment power supply under standard operational conditions.
These marine transformers are capable of handling voltages up to 11kV, with frequencies of 50Hz and 60Hz, and insulation classes rated at B, F, and H.
The CSD series comprises three-phase marine transformers with a capacity range spanning from 1 to 400kVA, and voltage levels below 750V. Additionally, they are available in different protection classes, including drip-proof IP22, IP23, IP44, or waterproof IP55 types.
environmental condition
- The ship is far from land;
- Ambient temperature -25~45°C, power frequency 50~60Hz;
- The relative humidity of the air is not more than 95%;
- There are effects of condensation, salt spray and mold;
- There is vibration and shock generated during the normal operation of the ship;
- The rocking angle of the ship is 22.5 ° and the tilt angle is 15 °;
- Substation equipment used for lighting, power distribution, or grid isolation on ships, offshore platforms and other places; Ship lighting transformers are important equipment.
- High requirements for safety and reliable performance (protection level)
- Executive standard: CB/T 1001-92;
- Normal two three-phase transformers: -- Mutual backup.
CSD Marine Transformer Technical Specifications
| Spec |
Capacity (kVA) |
Primary rated voltage(V) | Voltage combination | Link set label | Overall dimensions | Installation dimensions | |||||
| 50Hz | 60Hz | 50Hz | 60Hz | A | B | C | C1 | C2 | |||
| CSD-5 | 5 | 400 | 450 |
400 230 115 |
400 230 115 |
Yy0 Yy11 Dd0 |
550 | 330 | 580 | 260 | 190 |
| CSD-10 | 10 | 620 | 510 | 630 | 330 | 190 | |||||
| CSD-16 | 16 | 700 | 450 | 680 | 330 | 310 | |||||
| CSD-20 | 20 | 700 | 450 | 680 | 380 | 315 | |||||
| CSD-25 | 25 | 750 | 450 | 690 | 380 | 315 | |||||
| CSD-30 | 30 | 750 | 450 | 690 | 380 | 315 | |||||
| CSD-40 | 40 | 800 | 450 | 715 | 565 | 315 | |||||
| CSD-50 | 50 | 850 | 500 | 780 | 540 | 390 | |||||
| CSD-63 | 63 | 900 | 500 | 870 | 540 | 390 | |||||
| CSD-80 | 80 | 950 | 550 | 920 | 550 | 435 | |||||
| CSD-100 | 100 | 1050 | 600 | 970 | 550 | 490 | |||||
company profile
GNEE TRANSFORMER has strong production capacity and an efficient marketing team.
Our transformer products include 500kV, 400kV, 330kV, 220kV, and 110kV ultra-high voltage transformers, various dry-type transformers/oil immersed transformers/amorphous alloy transformers of 35kV and below, new energy transformers, and prefabricated substations,
Export series: single-phase transformer, three-phase transformer, cylindrical transformer, isolation transformer, control transformer, voltage regulator and other products, And various specifications of special transformers such as grounding transformers, arc suppression coils, Bitcoin transformers, prefabricated cabins, reactors, electric furnace transformers, rectifier transformers, mining transformers, marine transformers, etc.
GNEE TRANSFORMER has successively passed ISO9001, ISO14001, ISO45001, SA8000 system certification. At the same time, 10kV and 35KV level distribution transformers and box type substations have obtained interna- tional Electrotechnical Commission IEC certification, US UL certification, German TUV certification, EU CE certification, Dutch KEMA certification, and GOST certification. Our product sales cover the global market, including 72 countries and regions such as the United States, Europe, Canada, Mexico, etc.
transformer Workshop equipment display
types of transformer from GNEE
Get Transformer Order specification
GNEE Transformer Order specification
|
When choosing our company's products, please provide the following data to better serve you. |
||
|
Demander |
||
|
Demander: |
Telephonemethods: |
Fax: |
|
Project technical leader: |
Telephonemethods: |
Mailbox: |
|
Transformer type selection |
||
|
□Dry transformer {□SC(B) Epoxy resin □SC(B) Non-encapsulated} □American Box(ZGS) {□Terminal type(-Z-) □Ring network type(-H-)} □European Box change(YBM){□ Dry change □Oil change} |
□ Oil-immersed transformer{□ Fully sealed(-M-) □Oil-bearing pillow} □Amorphous alloy transformer{□Dry amorphous □ Oil amorphous} □ Special transformer{Rectifier, Furnace, Mine, Etc} |
|
Transformer basic data selection
|
Country of use: |
|
|
Phase number: |
□Three-phase(S conventional) □ Monophase □Other( ) |
|
Frequency: |
□50Hz(conventional) □60Hz □ Other( ) |
|
Transformer oil: |
□#25(conventional) □#45(minimum temperature below-25℃) |
|
Rated capacity: |
□( )kVA Conditions of use □Outdoor type □Indoor type |
|
Altitude: |
□Less than 1000m(conventional) □1000-2000m □3000m以上 over |
|
Rated voltage(High voltage) |
□6kV □10kV □20kV □35kV □66kV □110kV □220kV □Other( ) |
|
Rated voltage(Low pressure) |
□0.4kV □0.66kV □10kV □10.5kV □35kV □其他 Other( ) |
|
Connected group |
□Dyn11(conventional) □Yyn0 □YNd11 □li0(Single-phase) □Other( ) |
|
Impedance(%): |
□4% □4.5% □5.5% □6% □6.5% □7.5% □8% □Other( ) |
|
Voltage regulation mode |
□Voltage regulation without excitation(conventional) □On-load voltage regulation(Z) |
|
Voltage regulation range |
□±2*2.5% □±5% □±3*2.5% □Other( ) |
Transformer accessory selection
|
□Fan □Temperature control{□ Common □With 485 computer interface} □Dry case{□ Ordinary steel sheet □Aluminum alloy » Stainless steel} □Protection level of dry case(□IP20(Conventional) □IP( )} □Dry case height requirements{□None □Requirements[ ]} □ Cable out mode of the dry variable shell {□ Up-and-out □ Up-and-down □Down-in/DOWN-out □Down-in/UP-out □Down-in/DOWN-out □Down-in/ side-out [□Left □ Right-out]} |
|
Note: 1. (Dry change requirements s 100kVA transformer does not include fans, such as fans, need to be charged 2. (Oil changes <630kVA transformer does not include temperature control, gas relay, if necessary, need to increase the fee) |
Other special requirements(additional charges apply below)
|
Dry transformer |
□Shell and bottom plate{□Ordinary □Fully sealed} □Travel switch □Magnetic lo □Zero sequence transformer □Copper bar to the low voltage cabinet □Protective mesh □Lighting □100kVA or less Fan □Shock absorber |
|
Oil-immersed transformer |
□No.45 oil for non-low temperature areas □Designated brand on-load voltage regulator □400kVA and below low voltage outlet OABC phase with wiring terminals □630kVA or below requires temperature control □800kVA or below Low voltage outlet phase 0 requires wiring terminals □630kVA and below must be equipped with gas relay |
GNEE TRANSFORMER Industrial Layout
Asia:China, Philippines, Cambodia, Malaysia, Myanmar, Indonesia, Vietnam, Mongolia, Japan, Taiwan Province, Bangladesh, Sri Lanka, Lebanon, Saudi Arabia, Turkey, Armenia, Iraq, Iran, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan
Africa:Egypt, Ethiopia, Angola, Botswana, Burundi, Cape Verde, Congo, Guinea, Ghana, Gabon, Zimbabwe, Cameroon, Kenya, Rwanda, Malawi, Mauritius, Mauritania, Mozambique, South Africa, Nigeria, Somalia, Chad, Central Africa
North America: Aruba, Panama, Dominican Republic, Costa Rica, Honduras, Caribbean region,Canada, United States, Mexico, El Salvador, Guatemala, Jamaica
Europe: Bulgaria, North Macedonia, Finland, Norway, Ukraine, Greece, Hungary, Italy, United Kingdom
South America: Argentina, Paraguay, Ecuador, Colombia, Guyana, Venezuela, Uruguay, Chile
Middle East: The Middle East region
Oceania: Australia, Papua New Guinea. Fiji
