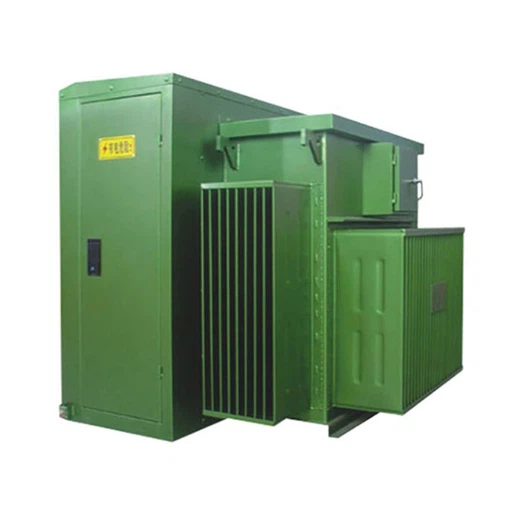

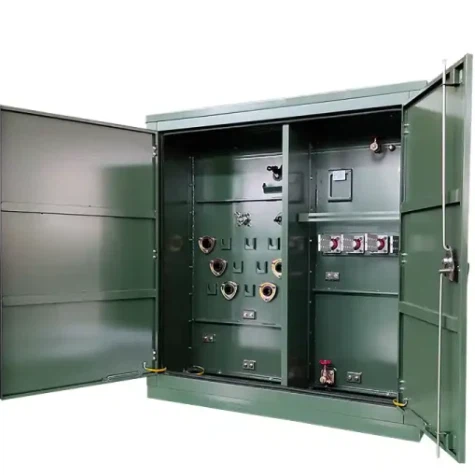

4000 KVA Pad Mounted Transformer
Have questions? GNEE sales representatives are available for live chat now
Send E-mail: sales@gneeelectric.com
Tel: +8615824687445
introduction of 4000kVA pad mounted transformer
GNEE TRANSFORMER supplies 4000 kVA pad mounted transformer.
As a medium-sized rated capacity power transformer, the 4000 kVA pad mounted transformer is widely used in areas such as subway stations, airports, hospitals, data centers, photovoltaic power generation, etc. that require high reliability power supply.
Advantage
1. Standard: ANSI 57,IEEE C57 IEC60076
2. Certification: ISO,CE,IEC,CSA,UL
3. Efficiency: The efficiency of a 4000kva transformer is greater than 99%, which can meet the DOE2016 energy efficiency regulations.
4. Maintenance free: IP54 (NEMA 3R) protection level, dustproof and moisture-proof, maintenance free, design life>25 years.
5. Environmental Protection and Sustainable Development: FR3 vegetable oil can be used, with a biodegradation rate of over 95%.
Specifications
- RATINGS
Transformer Type: Three Phase Transformer - Pad-Mounted Number of Windings: Two Frequency: 60 Hertz Capacity (HV & LV): 4000 kVA Cooling Class: ONAN Oil Type: Mineral Temperature Rise: 65°C -
Rated Voltages (Peak Voltage)
Primary Voltage Winding (H): 12.47 kV
Secondary Voltage Winding (X): 34.5 kV
- Winding Connections
12.47 kV Winding (H): Grounded Wye
34.5 kV Winding (X): Delta
- BIL Ratings
12.47 kV Voltage (H): 125kV
34.5 kV Voltage (X): 150 kV (200kV BIL winding)
Impedance at Base Capacity Rating: 5.75%
Maximum Sound Level at Maximum Capacity: NEMA TR1
-
Service Conditions
Ambient Temperature Range -40 C to 50 C
Altitude above Sea Level <3,300 ft
